| Brand | Ubiquiti |
| Model | U7-PRO-MAX |

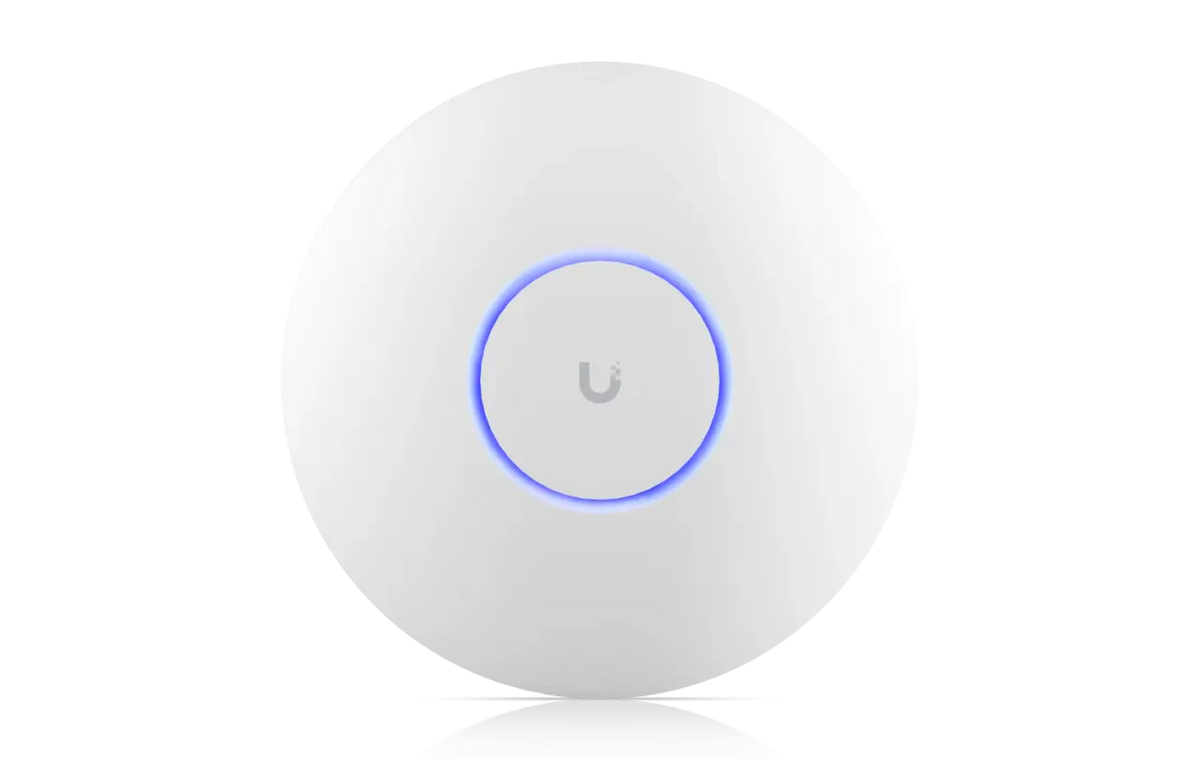

| Product Name | UniFi U7 Pro Max |
| Product Type | Ceiling-mounted tri-band Wi-Fi 7 access point |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Frequency Bands | 2.4 GHz, 5 GHz and 6 GHz |
| Spatial Streams | 8 |
| MIMO (6 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| MIMO (5 GHz) | 4 x 4 (DL/UL MU-MIMO) |
| MIMO (2.4 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| Max Data Rate (6 GHz) | 5.8 Gbps (BW320) |
| Max Data Rate (5 GHz) | 8.6 Gbps (BW240) |
| Max Data Rate (2.4 GHz) | 688 Mbps (BW40) |
| Antenna Gain | 5.9 dBi (6 GHz), 6 dBi (5 GHz), 4 dBi (2.4 GHz) |
| Max TX Power | 23 dBm (6 GHz), 29 dBm (5 GHz), 23 dBm (2.4 GHz) |
| Max BSSIDs | 8 per radio |
| Supported Data Rates (802.11be, 6 GHz) | 7.3 Mbps to 5.8 Gbps (MCS0 to MCS13, NSS1/2, EHT 20/40/80/160/320) |
| Supported Data Rates (802.11be, 5 GHz) | 7.3 Mbps to 8.6 Gbps (MCS0 to MCS13, NSS1/2/3/4, EHT 20/40/80/160/240) |
| Supported Data Rates (802.11ax) | 7.3 Mbps to 4.8 Gbps (MCS0 to MCS11, NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates (802.11ac) | 6.5 Mbps to 3.4 Gbps (MCS0 to MCS9, NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates (802.11n) | 6.5 Mbps to 600 Mbps (MCS0 to MCS31, HT 20/40) |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz |
| Operating Frequency (US and Canada) | 2400 to 2472 MHz; U-NII-1 5150 to 5250 MHz; U-NII-2A 5250 to 5350 MHz; U-NII-2C 5470 to 5725 MHz; U-NII-3 5725 to 5850 MHz; U-NII-5 to 8 5925 to 7125 MHz |
| Operating Frequency (Worldwide) | 2400 to 2483.5 MHz; 5150 to 5850 MHz; 5925 to 7125 MHz |
| Coverage Area | 160 square meters (1,750 square feet) |
| Max Client Count | 500+ |
| Uplink | 2.5 GbE |
| Networking Interface | 1 x 1/2.5 GbE RJ45 |
| Mounting | Ceiling, wall |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| Power Method | PoE+ |
| Supported Voltage Range | 44 to 57 V DC |
| Max Power Consumption | 25 W |
| Dimensions (Diameter x Height) | 206 x 46 mm (8.1 x 1.8 in) |
| Weight | 680 g (1.5 lb) |
| Operating Temperature | -30 to 50 C (-22 to 122 F) |
| Operating Humidity | 5 to 95% noncondensing |
| LEDs | System LED, white and blue |
| Roaming and Mesh Features | Wireless meshing, band steering, 802.11k RRM, 802.11r fast roaming, 802.11v BSS transition management |
| Radio Management Features | Zero-Wait DFS, advanced radio management, real-time spectral analysis, Passpoint (Hotspot 2.0) |
| Guest and Authentication Features | Captive portal with custom branding landing page, voucher, payment-based, password and external portal authentication, guest network isolation |
| Security and Network Features | Private pre-shared key (PPSK), client device isolation, RADIUS over TLS (RadSec), dynamic RADIUS-assigned VLAN, Wi-Fi speed limiting, Wi-Fi schedules |
| Management Interfaces | Ethernet |
| Application Requirements | UniFi Network version 8.2.93 or later |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
| Related Models | U7 Pro (6 spatial streams, 2 x 2 on all three bands, 4.3 Gbps on 5 GHz, 1/2.5 GbE RJ45 port) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
