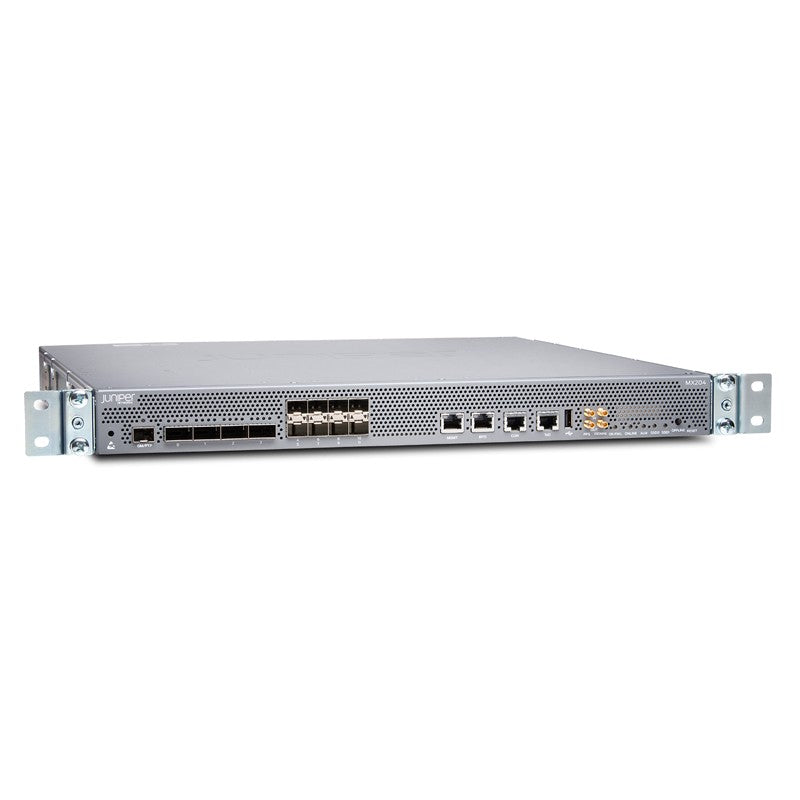

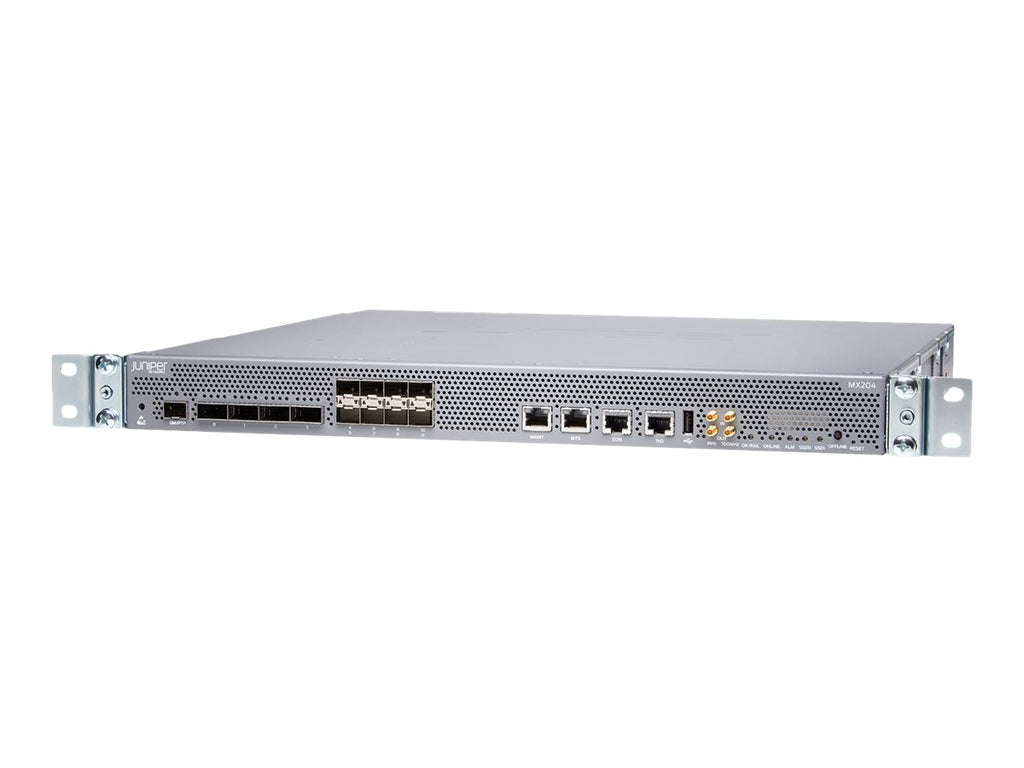

| Model | Juniper MX204-HW |
| Series | MX Series |
| Form Factor | 1U fixed-configuration router |
| 100GbE/40GbE Ports | 4 x rate-selectable QSFP28/QSFP+ (100GbE or 40GbE) |
| Channelization | Each rate-selectable port splits into 4 x 10GbE with a breakout cable |
| 10GbE Ports | 8 x SFP+ |
| QSA Adapter | Converts a 40G port to 10G (SFP+) or 1G (SFP), Junos OS Release 18.3R1 and later |
| Throughput | 400 Gbps |
| Routing Engine | Built-in (RE-S-1600x8), 1.6-GHz Intel 8-core x86 CPU |
| Memory | 32 GB DDR4 |
| Management Ports | RJ-45 console, RJ-45 management, USB Type A |
| Timing Ports | 10 MHz, BITS, PPS, PTP, ToD |
| Power Supplies | 2 x JPSU-650W-AC-AO (AC), hot-swappable, slots 0 and 1 |
| Power Redundancy | 1+1 feed redundancy, dedicated feed and circuit breaker per inlet |
| AC Input Voltage | 100 through 240 VAC |
| AC Input Frequency | 50 through 60 Hz |
| AC System Input Current | 3.2 A at 100 VAC, 1.37 A at 240 VAC |
| AC System Input Power | 312 W |
| Power Supply Output | 650 W maximum per supply |
| Power Supply Input Ranges | 100 through 127 VAC and 200 through 240 VAC |
| Power Supply Input Current | 7.8 A at 100 VAC, 3.8 A at 240 VAC per supply |
| Power Cord Coupler | IEC 60320 C13 |
| Power Consumption | 240 W typical at 25°C, 280 W maximum at 55°C (fully loaded) |
| Fan Modules | 3 x JNP-FAN-1RU, hot-swappable |
| Airflow | Front to back |
| Height | 1.72 in (43.7 mm) |
| Depth | 18.5 in (470 mm) |
| Chassis Weight (Spare) | 17 lb (7.71 kg) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Short-Term Operating Temperature | 23 to 131°F (-5 to 55°C) |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Operating Humidity | 5 to 90% relative, noncondensing |
| Seismic | Telcordia Zone 4 |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
