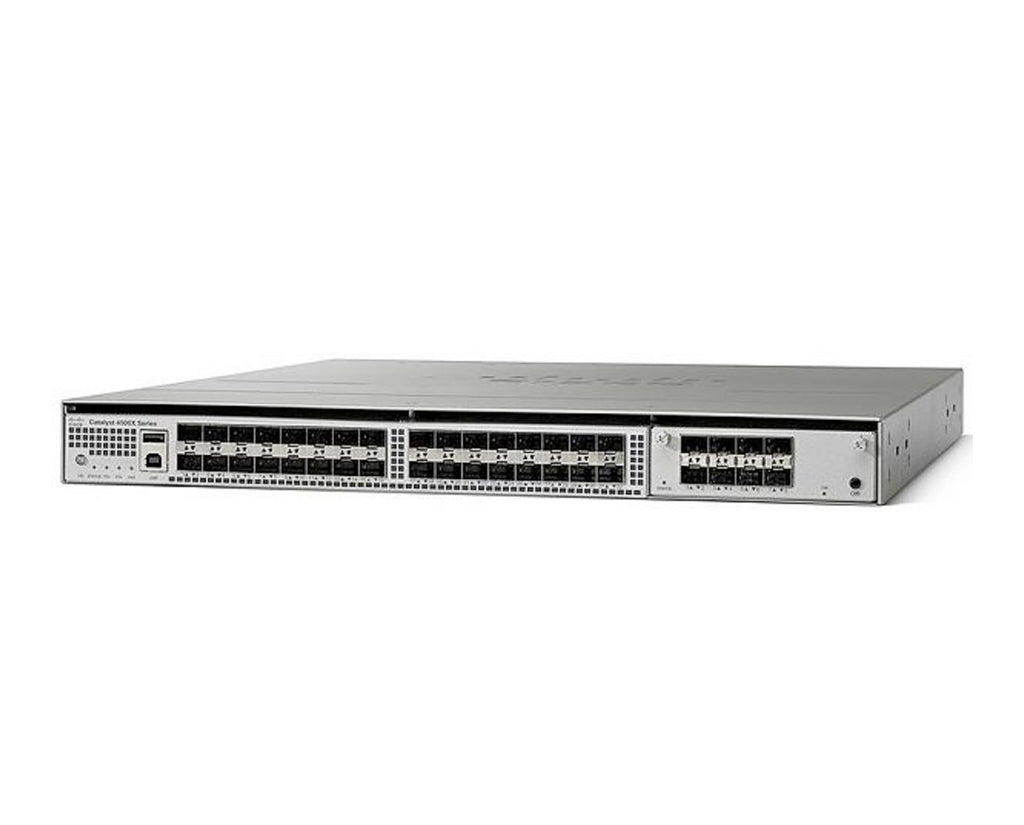

Cisco WS-C4500X-F-32SFP+ Catalyst 4500-X 32-Port 10G SFP+ Back-to-Front Airflow Switch - New

Roll over image to zoom in Click on image to zoom

Cisco WS-C4500X-F-32SFP+ Catalyst 4500-X 32-Port 10G SFP+ Back-to-Front Airflow Switch - New

Condition: new MPN: WS-C4500X-F-32SFP

Price:

$1,495.00

Stock:

In stock

Quantity:

Tech Overview

The Cisco WS-C4500X-F-32SFP+ is a Catalyst 4500-X aggregation switch with 32 fixed 10 Gigabit SFP+/SFP ports and back-to-front cooling. An optional eight-port uplink module, redundant hot-swappable power supplies sold separately and Virtual Switching System pairing round out the platform. It routes IPv4 and IPv6 traffic in hardware and runs the IP Base feature set. System throughput reaches up to 800 Gbps.

View full product specifications

The Cisco WS-C4500X-F-32SFP+ is a fixed 10 Gigabit Ethernet aggregation switch in the Catalyst 4500-X family, with 32 SFP+/SFP ports. Cisco's ordering table lists this model with back-to-front cooling, whereas the WS-C4500X-32SFP+ uses front-to-back cooling. An optional uplink module slot accepts the C4KX-NM-8SFP+ network module, which adds eight more 10 Gigabit SFP+/SFP ports. System throughput reaches up to 800 Gbps, and two switches of the same model can be pooled into a Virtual Switching System that acts as one logical switch. Dual redundant hot-swappable power supplies and field-replaceable fans keep it serviceable in a live network, and the power supplies are sold separately. The switch routes IPv4 and IPv6 traffic in hardware and runs the IP Base feature set, with Enterprise Services available as an upgrade sold separately. Its tables hold up to 55K MAC entries and 4094 VLANs. Management is available through a dedicated management port and a USB port. One optics restriction applies, since SFP-10G-ZR modules are not supported on its 32 fixed ports.

Brand	Cisco
Model	WS-C4500X-F-32SFP+
Product Description	Catalyst 4500-X 32 Port 10GE IP Base, Back-to-Front Cooling, No P/S
Fixed Ports	32 x 10GE SFP+/SFP
Optional Uplink Module	C4KX-NM-8SFP+ (8 x 10GE SFP+/SFP)
System Throughput	Up to 800 Gbps
IPv4 Forwarding Rate	Up to 250 Mpps
IPv6 Forwarding Rate	Up to 125 Mpps
Virtual Switching System	Up to 2 switches of the same model
MAC Entries	55K
IPv4 Forwarding Entries	256K
IPv6 Forwarding Entries	128K
Total VLANs	4094
Total SVIs	4094
Onboard Memory	4 GB (SRAM DDR-II)
NVRAM	2 GB
Optional External Memory	2 GB SD card
USB Storage	USB Type A, up to 4 GB
Airflow	Back-to-front
Power Supplies	None supplied, dual power supply slots
Power Supply Rating	750 W AC or 750 W DC maximum
System Power Consumption	330 W nominal, 400 W maximum
Software Feature Set	Cisco IOS XE IP Base
Minimum Software Release	Cisco IOS XE 3.3.0SG
Operating Temperature	0 to 40 C
Operating Altitude	60 m below sea level to 3000 m above sea level
Acoustic Noise	65 dBA maximum

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
