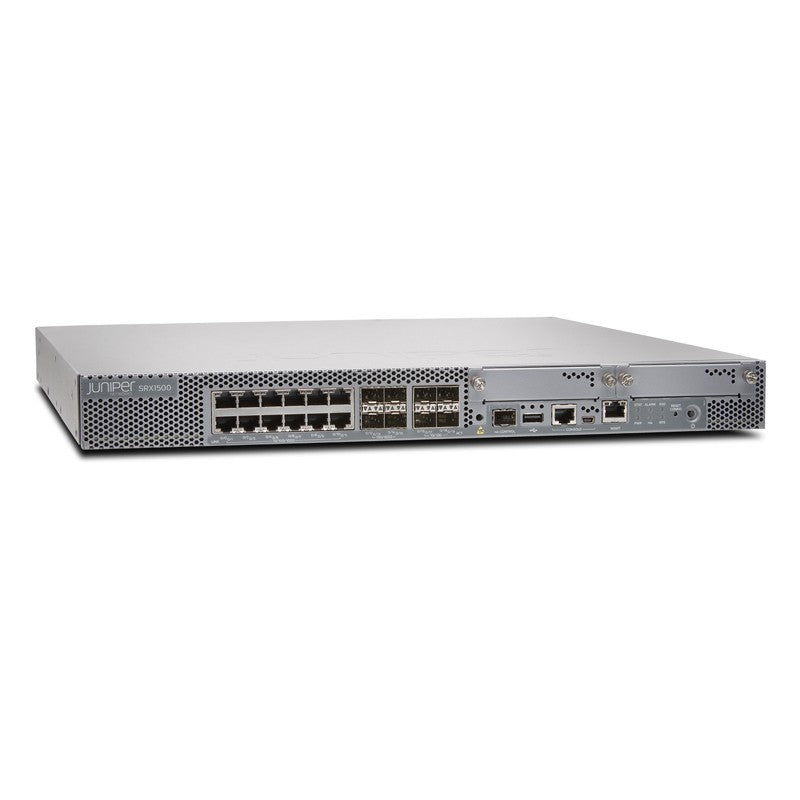

| Model | SRX1500-SYS-JB-AC |
| Series | Juniper Networks SRX1500 |
| Type | Next-Generation Firewall / Security Services Gateway |
| Firewall Throughput (1518B) | 9.0 Gbps |
| Firewall Throughput (IMIX) | 4.5 Gbps |
| IPsec VPN Throughput (1400B) | 4.0 Gbps |
| IPsec VPN Throughput (IMIX) | 1.0 Gbps |
| App Security Performance (TPS) | 7.5 Gbps |
| NGFW Throughput (TPS) | 7.0 Gbps |
| Max Concurrent Sessions | 2,000,000 |
| Connections per Second | 90,000 |
| IPsec VPN Tunnels | 2,000 |
| SSL Connections per Second | 1,600 |
| 1GbE RJ-45 Ports | 12 x 1GbE |
| 1GbE SFP Ports | 4 x 1GbE SFP |
| 10GbE SFP+ Ports | 4 x 10GbE SFP+ |
| PIM Expansion Slots | 2 |
| OOB Management Port | 1 x 1GbE RJ-45 |
| HA Port | 1 x 1GbE SFP |
| Console Port | 1 x RJ-45, 1 x Mini USB |
| USB Port | 1 x USB 2.0 |
| System RAM | 16 GB |
| Boot Storage | 16 GB mSATA |
| Secondary Storage | 100 GB SSD |
| IPv4 Route Table (RIB/FIB) | 2,000,000 / 1,000,000 |
| Routing Protocols | BGP, OSPF, OSPFv3, IS-IS, RIP, EVPN-VXLAN, MPLS, PIM, DVMRP, MSDP |
| VPN | IPsec, AutoVPN, ADVPN, Group VPN, SSL VPN, GRE, MPLS |
| High Availability | Active/active, active/passive chassis cluster, ISSU, VRRP |
| Security Features | NGFW, IPS, antivirus, antispam, URL filtering, ATP, SecIntel, AI-Predictive Threat Prevention, Encrypted Traffic Insights |
| Management | Junos CLI, Web UI, Security Director Cloud, SNMP, Python, Zero Touch Provisioning |
| Airflow | Front-to-Rear |
| Power Supply | Dual redundant hot-swappable AC, 150W average |
| Mounting | 1U Rack-mountable |
| Dimensions (W x D x H) | 17.28 x 18.20 x 1.75 in |
| Weight | 16.10 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
