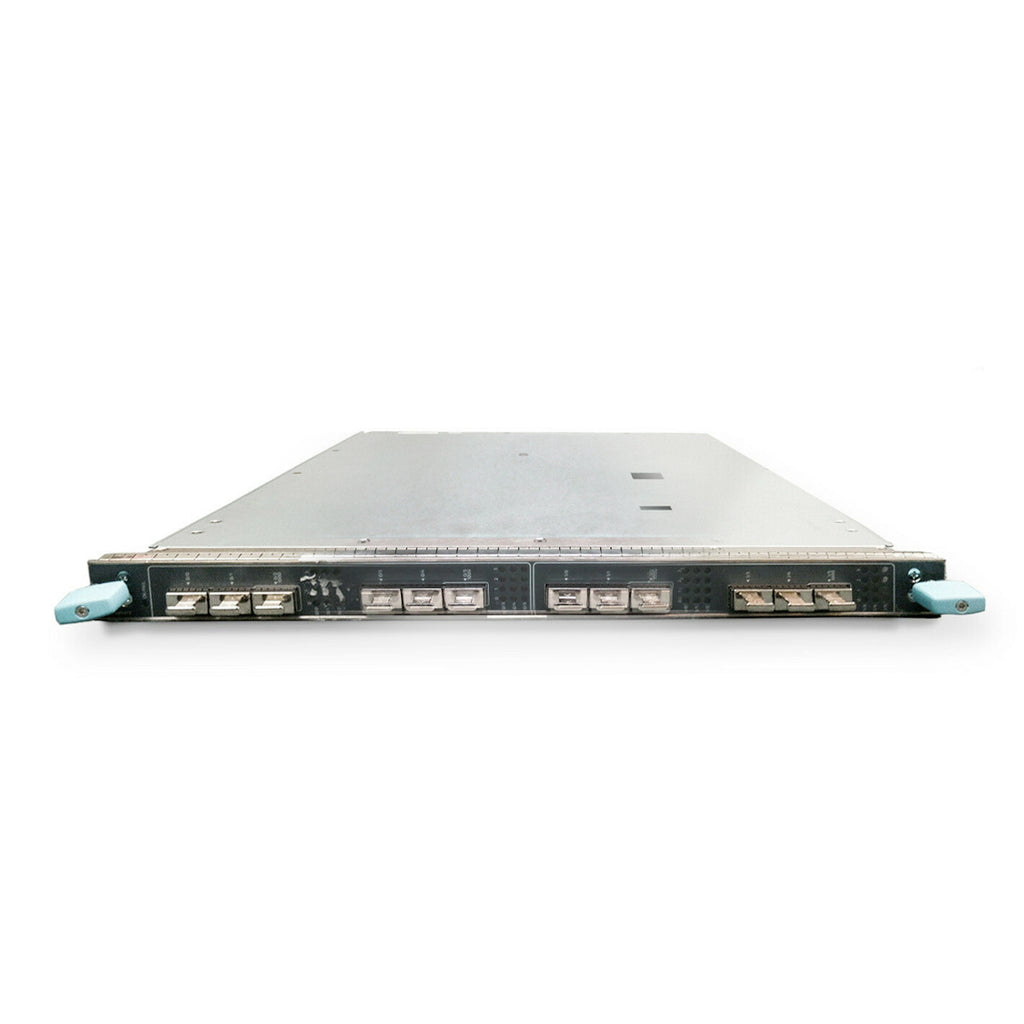

| Brand | Juniper |
| Model | MPC7E-MRATE |
| Series | MX Series |
| Type | Fixed-Configuration Multi-Rate Line Card (MPC) |
| QSFP+ Ports | 12 |
| Port Speeds | Each port: 40-Gigabit Ethernet or 4 x 10-Gigabit Ethernet (breakout); default 10-Gigabit Ethernet; rate selectable per port |
| 100-Gigabit Ports | 4 (ports 0/2, 0/5, 1/2 and 1/5), QSFP28 transceivers |
| Aggregate Capacity per Port Group | 240 Gbps per group of six ports (0/0 to 0/5 and 1/0 to 1/5) |
| Line-Rate Throughput, MX240, MX480, MX960 | Up to 480 Gbps |
| Line-Rate Throughput, MX2000 | Up to 400 Gbps with SFB |
| Transceivers | QSFP+ and QSFP28 (100G ports); supported optics listed in the Juniper Hardware Compatibility Tool |
| Chipset | Junos Trio |
| MTU, Transit Traffic | 256 to 16,000 bytes |
| MTU, Host-Bound Packets | 256 to 9,500 bytes |
| Software Features | Port-level rate selectability; optical diagnostics and related alarms |
| Compatible Chassis | MX240, MX480, MX960, MX2000 series |
| Required Components, MX240, MX480, MX960 | High-capacity power supplies, high-capacity fan trays, SCBE2 or SCBE3 switch control boards |
| Required Components, MX2000 | Adapter card to house the line card |
| Network Services Mode | enhanced-ip or enhanced-ethernet (MX240, MX480, MX960) |
| MX960 Slot Note | Any MPC slot at ambient up to 40 C; above 55 C at sea level, slot 11 cannot host this card |
| Power Requirements | 545 W at 55 C; 465 W at 40 C; 440 W at 25 C |
| LEDs | OK/FAIL: one bicolor (green normal, yellow failed); LINK: one green per port, 4 per QSFP+ cage (green link up, off link down or disabled) |
| Weight | 15.7 lb (7.12 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
