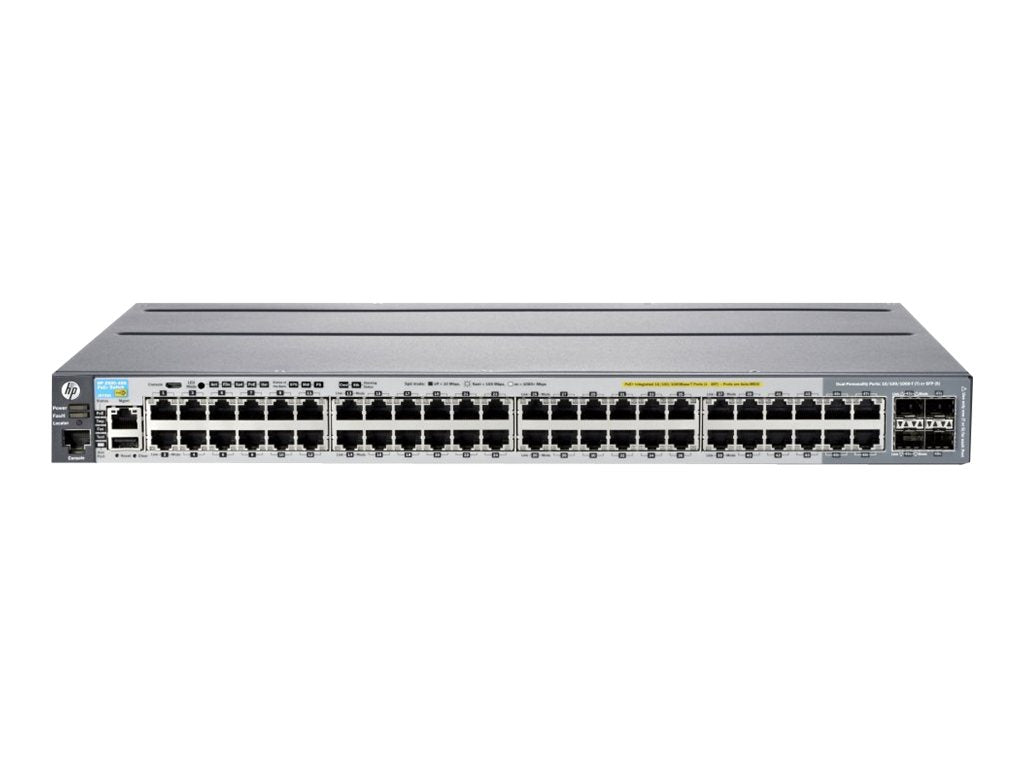

| Brand | HPE Aruba |
| Model | J9729A |
| Series | Aruba 2920 Switch Series |
| Type | Managed PoE+ Switch |
| PoE+ Ports | 44 x RJ-45 autosensing 10/100/1000 PoE+ (IEEE 802.3at) |
| Additional PoE+ Ports | 4 x RJ-45 dual-personality 10/100/1000 PoE+ |
| Module Slots | 2 |
| Stacking Module Slot | 1 |
| Other Ports | 1 dual-personality (RJ-45 or USB micro-B); 1 USB 1.1; 1 RJ-45 out-of-band management |
| PoE Budget | 370 W |
| Switching Capacity | 176 Gbps |
| Throughput | 130.9 million pps |
| Latency | Less than 9.0 µs at 100 Mb; less than 3.2 µs at 1000 Mb (FIFO 64-byte packets) |
| MAC Address Table | 16,000 entries |
| Routing Table | 2,048 entries (IPv4), 256 entries (IPv6) |
| Processor | Tri Core ARM1176 at 625 MHz |
| Memory | 512 MB SDRAM |
| Packet Buffer | 11.25 MB |
| Power Supply Slots | 1 (1 power supply minimum) |
| Default Power Supply | J9738A (X332 575 W, 100-240 VAC to 54 VDC modular) |
| Input Voltage | 100 to 240 V AC |
| Frequency | 50/60 Hz |
| Idle Power | 46 W |
| Maximum Power | 487 W |
| 80 PLUS Rating | Silver |
| Operating Temperature | 0 C to 55 C (32 F to 131 F) |
| Storage Temperature | -40 C to 70 C (-40 F to 158 F) |
| Operating Humidity | 15% to 95%, non-condensing |
| Altitude | Up to 3 km (10,000 ft) |
| Acoustic | 62 dB sound power; 45.2 dB sound pressure |
| Related Models | J9836A 2920-48G-PoE+ 740W (740 W PoE budget); J9728A 2920-48G (no PoE) |
| Dimensions (H x W x D) | 1.73 x 17.42 x 13.23 in (4.39 x 44.25 x 33.6 cm) |
| Weight | 11.95 lb (5.42 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
