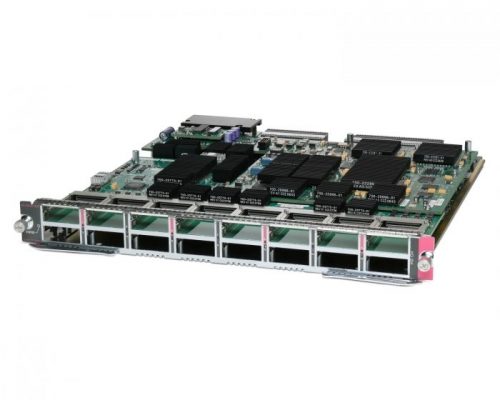

| Product Code | WS-X6716-10G-3C |
| Feature | 16-Port 10GbE Fiber Module |
| Ports | 16 |
| Optics | X2 |
| Switch fabric connection | 40 Gbps (80 Gbps full duplex) |
| Oversubscription | 4:1 |
| Forwarding engine | WS-X6716-10G-3C: equipped with DFC3C for distributed forwarding, supporting 256,000 routes |
| Queues | Oversubscription mode:Receive: 1p7q2t per portTransmit: 1p7q4t per port group Performance mode:Receive: 8q4t per portTransmit: 1p7q4t per port |
| Queuing mechanisms | CoS-based queue mappingDSCP-based queue mapping |
| Scheduler | Oversubscription mode:DWRRWRED Performance mode:DWRRWREDSRR at egress |
| Port buffers | Oversubscription mode:90 MB per port group Performance mode:200 MB per port |
| Hardware-based multicast replication (Layer 2) | Ingress and egressApproximately 20 GB per replication engine2 replication engines per module |
| Hardware-based multicast replication (Layer 3) | Ingress and egressApproximately 20 GB per replication engine2 replication engines per module |
| Jumbo frame support for bridged and routed packets | Up to 9216 bytes |
| Maximum port density per chassis | 130 ports (9-slot chassis) |
| Maximum port density per VSS | 260 ports |
| Can be used to form virtual switch link | Performance mode: Yes (supported in a subsequent software release)Oversubscription mode: No |
| Supervisor engines supported | Cisco Catalyst 6500 Series Virtual Switching Supervisor Engine 720 with 10GE uplinks or Supervisor Engine 720 with any PFC (chassis will work in lowest common denominator mode) |
| Chassis supported | Any Cisco Catalyst 6500 E-Series chassis, including 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E, and C6509-NEB-A chassis with dual fan tray (NEBS compliant: operating |
| Chassis supported (cont.) | temperature up to 55°C), or;Non-E-Series chassis with fan tray 2, including Cisco Catalyst 6506, 6509, 6513, and C6509-NEB-A with single fan tray (non-NEBS compliant: |
| Chassis supported (cont.) | operating temperature up to 40°C)Not supported in Cisco Catalyst 6503 non-E Series chassis and 7600 Series chassis |
| Slot requirements | Can occupy any slot in any Cisco Catalyst 6503-E, 6504-E, 6506, 6506-E, 6509, 6509-E, 6509-V-E, or 6509-NEB-A chassisCan occupy only slots 9 through 13 in a Cisco |
| Slot requirements (cont.) | Catalyst 6513 chassis |
| Onboard memory | 1 GB default |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
