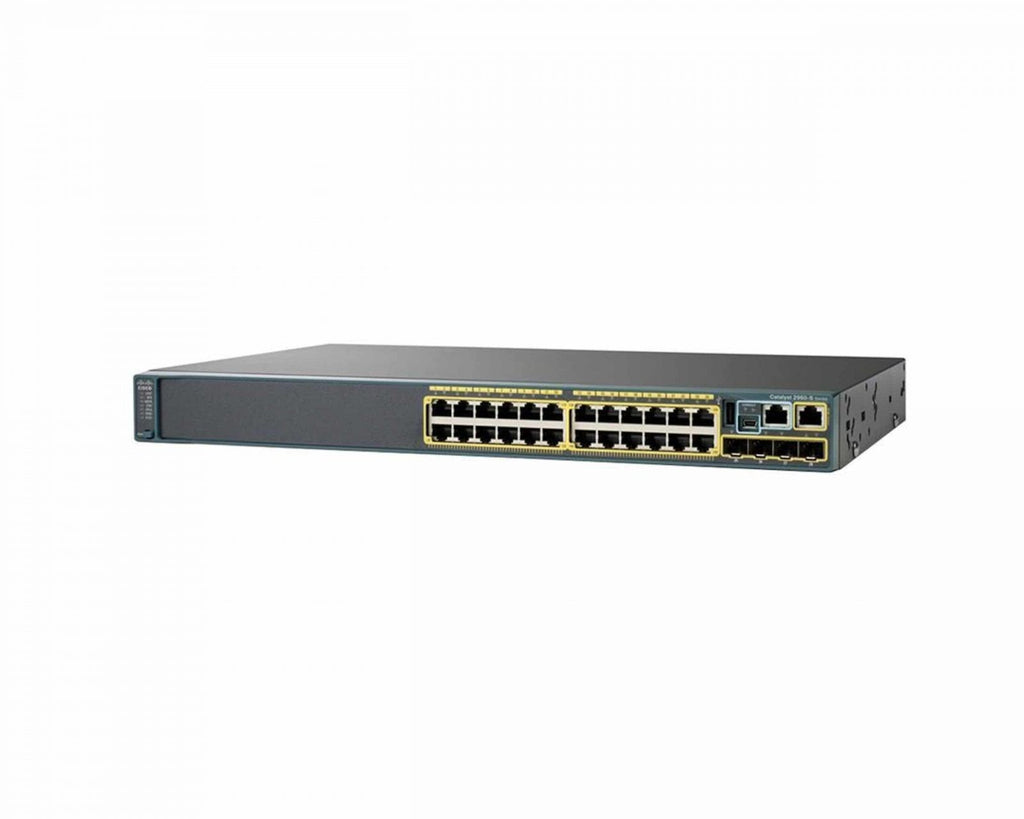

Cisco WS-C2960S-24PS-L 24 Port GigE PoE Switch 370W AC 4x SFP LAN Base - New
Roll over image to zoom in Click on image to zoom
Cisco WS-C2960S-24PS-L 24 Port GigE PoE Switch 370W AC 4x SFP LAN Base - New

Cisco WS-C2960S-24PS-L 24 Port GigE PoE Switch 370W AC 4x SFP LAN Base - New

Save 6%
Condition:  new     MPN:  WS-C2960S-24PS-L
Price:
$1,155.00 $1,225.00
Stock:
In stock

Tech Overview

Cisco Catalyst 2960S-24PS-L - Switch - managed - 24 x 10/100/1000 (PoE) 4 x SFP - rack-mountable - PoE
View full product specifications

Overview

Device Type Switch - 24 ports - managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE) 4 x SFP
Power Over Ethernet (PoE) PoE
Performance Switching capacity: 176 Gbps | Forwarding performance (64-byte packet size): 41.7 Mpps
MAC Address Table Size 8K entries
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS
Features Layer 2 switching, auto-sensing per device, dynamic IP address assignment, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), PoE , Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM 128 MB
Flash Memory 64 MB flash
Status Indicators Port status, port transmission speed, port duplex mode, power, system, link/activity
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE | 1 x USB Type A | 1 x console - mini-USB Type B management | 1 x console - RJ-45 management | 1 x 10Base-T/100Base-TX - RJ-45 management | 4 x SFP (mini-GBIC)
Expansion Slots 1 (total) / 1 (free) x Stacking Module slot
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 55 Watt
Rack Mounting Kit Optional
MTBF 245,604 hours
Compliant Standards TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A
Software Included Cisco IOS LAN Base
Width 17.5 in
Depth 15.2 in
Height 1.8 in
Weight 12.72 lbs

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
