| Software compatibility | ● Cisco Collaboration Endpoint Software Version 9.14.5 or later, or Webex RoomOS |
| Default components in Webex Room Kit Plus | ● Webex Codec Plus ● Webex Quad Camera ● Webex Room Navigator control unit ● Wall mount for Quad Camera |
| Available integrator bundles | ● Webex Room Kit Plus PTZ 4K (featuring the Webex PTZ 4K Camera) |
| Optional hardware components | ● Cisco Table Microphone, Cisco Ceiling Microphone, Wall mount for Codec Plus, cables, spare Webex PTZ 4K Camera, spare Webex Precision 60 Camera, spare Cisco TelePresence SpeakerTrack 60 Camera |
| Bandwidth | ● Up to 6 Mbps point-to-point |
| Minimum bandwidth for resolution/frame rate | H.264 ● 720p30 from 768 kbps ● 720p60 from 1152 kbps ● 1080p30 from 1472 kbps ● 1080p60 from 2560 kbps |
| Firewall traversal | ● Cisco Expressway ™ technology ● H.460.18, H.460.19 firewall traversal |
| Video standards | ● H.264, H.265, and H.263 for TANDBERG ™ MXP interoperability only |
| Video inputs | ● One HDMI input supports formats up to maximum 1080p60 ● Two HDMI inputs support formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60 ● Extended Display Identification Data (EDID) ● Consumer Electronics Control (CEC) 2.0 |
| Video outputs | ● Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60) ● Consumer Electronics Control (CEC) 2.0 |
| Encode and decode | ● Main video: Full HD 1080p60 ● Presentation channel: UHD 4K 2160p5, including 1080p30 and 720p60 |
| Audio standards | ● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus |
| Audio features | ● High-quality 20 kHz audio ● Subwoofer line out for Quad Camera ● Prepared for inductive loop (line out) ● Automatic Gain Control (AGC) ● Automatic noise reduction ● Active lip synchronization |
| Audio inputs | ● Three microphones, 4-pin mini-jack ● Embedded audio on two HDMI inputs ● Bluetooth ® - Not available on Non Radio Version * |
| Audio outputs | ● 1 line out mini-jack (stereo) (Codec Plus) ● 1 RCA output for subwoofer (Quad Camera) ● Embedded audio on one HDMI output ● HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera ● Bluetooth ® - Not available on Non Radio Version * |
| Speakers (Quad Camera) | ● High-quality speakers ● Frequency response: 70 Hz to 20 kHz ● Max output level SPL 90dB |
| Speaker tracking (Quad Camera, SpeakerTrack 60) | ● 6-element microphone array for accurate speaker tracking ● Quad Camera can support group framing feature with 5x zoom capability ● SpeakerTrack 60 can support close-up feature with 20x zoom capability |
| PresenterTrack (available when pairing with PTZ 4K Camera, Precision 60 Camera) | ● AI-powered face and upper body detection capability ● Camera automatically follows the active presenter within a defined zone and helps ensure optimized view |
| Dual stream | ● H.239 (H.323) dual stream ● Binary Floor Control Protocol (BFCP) (SIP) dual stream ● Support resolutions up to 3840 x 2160p5 (4Kp5),1080p30 and 720p60 |
| Wireless sharing | ● Webex App (up to 3840 x 2160p5) ● Cisco Intelligent Proximity client (up to 1920 x 1080p5) ● Miracast (1080p30) – Not available on Non radio version * |
| MultiSite features (embedded multipoint) (optional upgrade) | ● Adaptive SIP/H.323 MultiSite ◦ 3-way resolution up to 1080p30 content up to 4Kp5 ◦ 4-way resolution up to 720p30 content up to 4Kp5 ● Full individual audio and video transcoding ● H.323/SIP/VoIP in the same conference ● Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5 ● Best Impression (automatic continuous presence layouts) ● Encryption and dual stream from any site |
| Protocols | ● H.323 ● SIP ● Webex ● ISDN PRI/BRI using the optional ISDN Link |
| Embedded encryption | ● H.323 and SIP point-to-point ● Standards-based: H.235 v3 and Advanced Encryption Standard (AES) ● Automatic key generation and exchange |
| IP network features | ● DNS lookup for service configuration ● Differentiated services (Quality of Service [QoS]) ● IP-adaptive bandwidth management (including flow control) ● Automatic gatekeeper discovery ● Dynamic playout and lip-sync buffering ● H.245 Dual-Tone Multi-Frequency (DTMF) tones in H.323 ● RFC 4733 DTMF tones in SIP ● Date and time support using Network Time Protocol (NTP) ● Uniform Resource Identifier (URI) dialing ● Dynamic Host Configuration Protocol (DHCP) ● 802.1X network authentication ● 802.1Q Virtual LAN ● 802.1p [QoS and Class of Service (CoS)] ● Cisco Media Assure and ClearPath, including packet loss-based downspeeding |
| Call control | ● Cisco Unified Communications Manager (CUCM) ◦ Native registration CUCM ◦ Requires CUCM Version 10.5.2 or later with device pack Room Kit Plus ● Cisco Expressway ◦ Native registration with Expressway ● Webex ● Third-party H.323 Gatekeepers and standards-based SIP proxies |
| IPv6 network support | ● Single call stack support for both H.323 and SIP ● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ ● Support for both static and automatic IP configuration (stateless address auto configuration) |
| Security features | ● Management using HTTPS and SSH ● IP administration password ● Password to access administration features on Webex Room Navigator controller ● Disable IP services ● Network settings protection |
| Certificate management | ● Certificate Authority Proxy Function (CAPF) support for additional security ● Manufacturer-Installed Certificates (MIC) ● Locally Significant Certificates (LSC) ● X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported |
| Other interfaces | ● USB 2.0 port, mini USB port, factory reset pinhole |

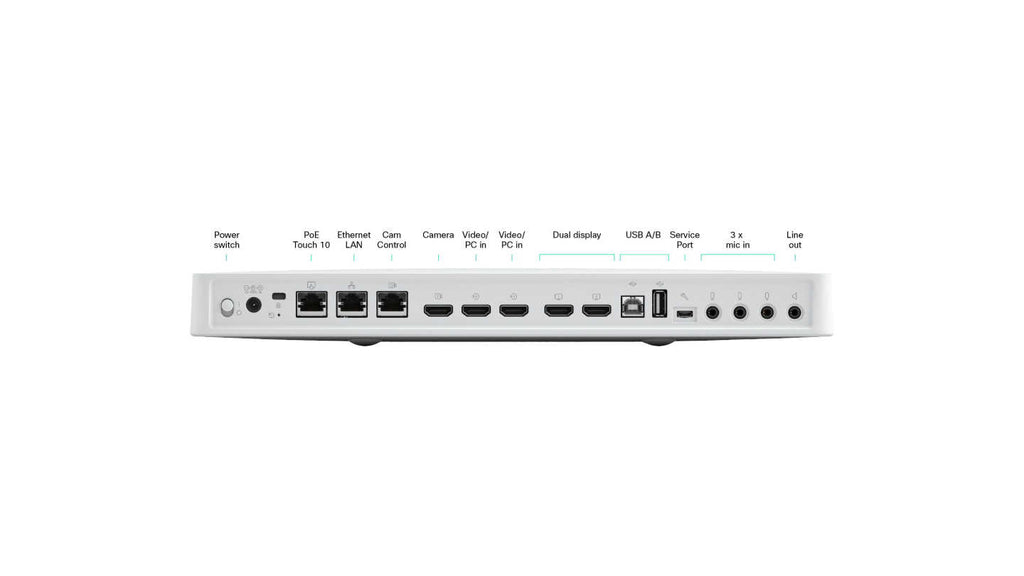

| Network interfaces Codec Plus | ● 1 Ethernet (RJ-45) 10/100/1000 for LAN ● 1 Ethernet (RJ-45) 10/100/1000 for direct pairing with camera (camera control) ● 1 Ethernet (RJ-45) 10/100/1000 with PoE, for direct pairing with Webex Room Navigator ● Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN- not available in non-radio versions ● 2x2 multiple input and multiple output (MIMO) Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz – 5875 MHz. Using a Wifi connection is a flexible option, however an Ethernet connection is always preferred for high performance. |
| Power supplies (2) | ● 100 to 240 VAC, 50/60 Hz, 12V DC input ● Average 20 W, peak 70W ● Quad camera must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019 |
| Operating temperature and humidity | ● 0°C to 35°C (32°F to 95°F) ambient temperature ● 10% to 90% Relative Humidity (RH) |
| Storage and transport temperature | ● -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing) |
| Locking mechanism | ● Kensington security lock |
| Camera overview (Quad Camera) | ● (4) 5K CMOS sensors with machine intelligent switching; providing single HD output at 1080p ● Support up to 60 fps ● 15.1 MP image sensor ● 1/1.7 CMOS ● 5x digital zoom (3 tele-lenses each with 50° horizontal field of view) ● f/2.0 aperture ● 83° horizontal field of view; 51.5° vertical field of view ● Auto-framing (audio face detect) ● 5120 x 2880 pixel resolution ● Auto focus, brightness, and white balance ● Focus distance 1 m to infinity |
| Camera overview (SpeakerTrack 60) | ● 1920 x 1080 at 60 frames per second (fps) ● 10x optical zoom, 2x digital zoom, 20x zoom combined ● Pan range: /-100 degrees, Tilt range: /-20 degrees, Tracking horizontal FoV: 80 degrees ● Focus distance 1.0m to infinity (wide) ● F-value 1.5 ● Manual or automatic to do focus, white balance, and brightness |
