| Brand | Cisco |
| Model | CTS-C90-K9 |

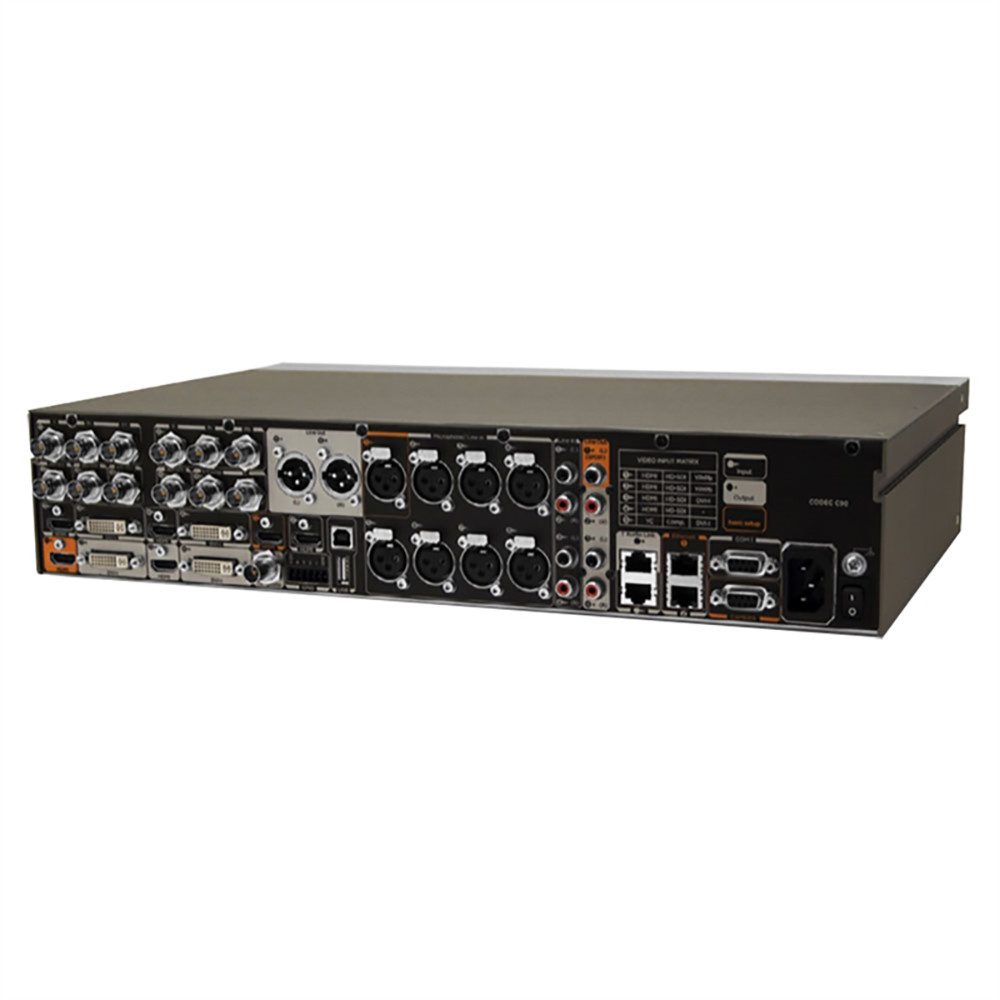

| Product | TelePresence Codec C90 |
| Product Type | Video conferencing codec |
| Form Factor | 2RU rack mount |
| Maximum Video Resolution | 1080p60 |
| Video Standards | H.261, H.263, H.263+, H.264 |
| Live Video Encode and Decode | QCIF up to 1080p60 |
| Video Inputs | 13 total: 4 x HDMI, 4 x HD-SDI (BNC), 2 x DVI-I, 2 x component Y-Pr-Pb (BNC), 1 x composite or S-Video (BNC) |
| HDMI and DVI Input Resolution | Up to 1920 x 1080 at 60 Hz |
| HD-SDI Input Resolution | 1080p30/25, 720p60/50/30/25 |
| Video Outputs | 5 total: 2 x HDMI, 2 x DVI-I, 1 x composite (BNC) |
| HDMI and DVI Output Resolution | Up to 1920 x 1080 at 60 Hz |
| Audio Inputs | 14 total: 8 x microphone/line XLR with 48 V phantom power, 4 x line RCA, 2 x HDMI |
| Audio Outputs | 8 total: 2 x line XLR (balanced), 4 x line RCA, 2 x HDMI |
| Audio Standards | G.711, G.722, G.722.1, 64 kbps and 128 kbps MPEG4 AAC-LD, AAC-LD Stereo |
| Audio Features | CD-quality 20 kHz mono and stereo, eight acoustic echo cancellers, 8-port audio mixer, automatic gain control, automatic noise reduction, active lip sync |
| Protocols | H.323, SIP |
| Dual Stream | H.239, BFCP |
| Call Bandwidth | Up to 6 Mbps point-to-point |
| MultiSite | 4-way 1080p30 SIP/H.323 MultiSite with individual transcoding, up to 10 Mbps total conference bandwidth |
| Encryption | H.235 and AES |
| Network | 2 x Ethernet (RJ-45) 10/100/1000 Mbps, IPv4/IPv6 dual stack, 802.1X, 802.1Q, 802.1p |
| Camera Control | 1 x RS-232 (VISCA), 12 V DC 1 A to first camera |
| Control and Diagnostics | 1 x RS-232 COM port (9-pin D-SUB) |
| GPIO | 1 x 6-pin Phoenix connector, 4 programmable pins |
| USB | 1 x USB host, 1 x USB device |
| Camera Support | Cisco TelePresence PrecisionHD Camera (1080p), 1/3 in CMOS, 12x zoom |
| Power Input | 100 to 240 VAC, 50/60 Hz, 2.8 A max |
| Maximum Power | 175 W for codec and main camera |
| Package Contents | Videoconferencing codec, wireless remote control, rack mounting rails, LAN cable, power cable |
| Dimensions (L x H x D) | 17.36 x 3.67 x 11.8 in (44.1 x 9.3 x 30 cm) |
| Weight | 11.22 lb (5.1 kg) |
| Operating Temperature | 0 to 35 C (32 to 95 F) |
| Operating Humidity | 10% to 90% relative |
| Storage Temperature | -20 to 60 C (-4 to 140 F) |
| Storage Humidity | 10% to 90% relative, non-condensing |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
