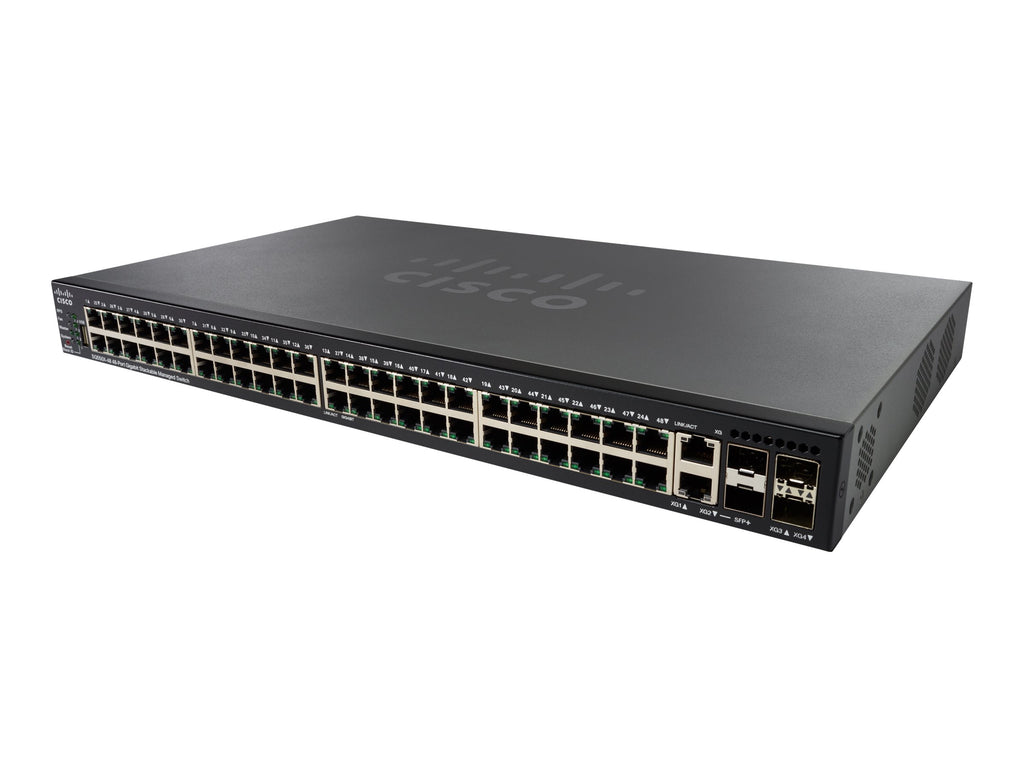

| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE ) 2 x 10 Gigabit SFP (uplink) 2 x combo 10GBase-T (uplink) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 382 W |
| Performance | Forwarding performance (64-byte packet size): 130.94 Mpps | Switching capacity: 176 Gbps |
| Capacity | VLANs supported: 4094 | QoS hardware queues: 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9000 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | RIP-2 IGMPv2 IGMP VRRP IGMPv3 static IPv4 routing static IPv6 routing MLDv2 MLD CIDR |
| Remote Management Protocol | SNMP 1 RMON SNMP 3 SNMP 2c HTTP HTTPS TFTP SSH CLI SCP |
| Encryption Algorithm | MD5 SSL |
| Authentication Method | Secure Shell (SSH) RADIUS TACACS |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Interfaces | 48 x 1000Base-T RJ-45 PoE | 4 x 10GBase-X SFP uplink | 2 x 10GBase-T RJ-45 uplink | 1 x console RJ-45 | 1 x USB Type A |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 494.3 Watt |
| Localization | North America |
| Width | 17.3 in |
| Depth | 17.7 in |
| Height | 1.7 in |
| Weight | 14.75 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
