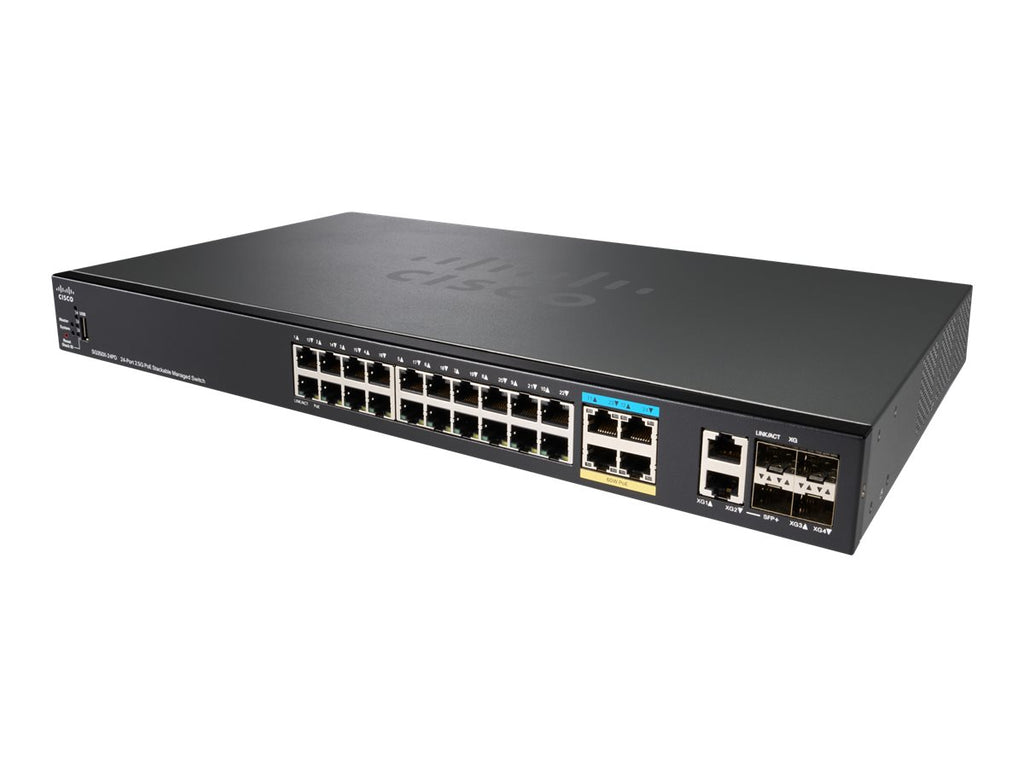

| Device Type | Switch - 24 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 20 x 10/100/1000 (PoE ) 2 x combo 10 Gigabit SFP 2 x 10 Gigabit SFP 4 x 10/100/1000/2.5G (UPOE) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 375 W |
| Performance | Switching capacity (64-byte packet size): 104.16 Mpps | Switching capacity: 140 Gbps |
| Capacity | MSTP instances: 16 | Active VLANs: 4096 | IPv4 routes (static): up to 8000 | ACL entries: up to 2000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9000 bytes |
| Max Units In A Stack | 4 |
| Routing Protocol | IGMPv2 IGMP IGMPv3 static IPv4 routing static IPv6 routing policy-based routing (PBR) MLDv2 MLD CIDR |
| Remote Management Protocol | SNMP 2 SNMP RMON Telnet SNMP 3 HTTP HTTPS TFTP SSH SSH-2 CLI SCP |
| Encryption Algorithm | MD5 SSL |
| Authentication Method | RADIUS TACACS TACACS |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Interfaces | 20 x 1000Base-T RJ-45 30 W | 4 x 2.5Gbit LAN RJ-45 60 W | 2 x 10Gbit LAN RJ-45/SFP uplink | 2 x 10GBase-X SFP uplink | 1 x console RJ-45 | 1 x management (Gigabit LAN) |
| Interfaces (cont.) | 1 x USB Type A |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (47 - 63 Hz) |
| Localization | North America |
| Width | 17.3 in |
| Depth | 10.1 in |
| Height | 1.7 in |
| Weight | 8.8 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
