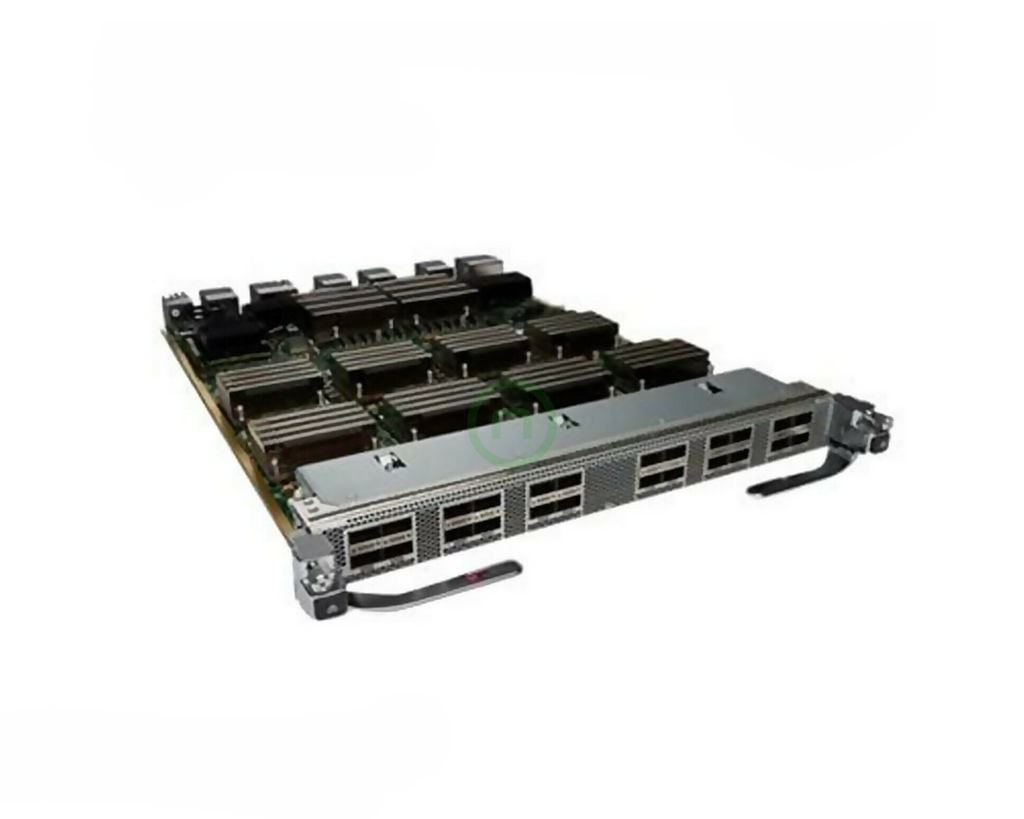

| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Plug-in module |
| Subtype | 40 Gigabit Ethernet |
| Ports | 24 x QSFP |
| Performance | Forwarding performance: 1.44 Bpps |
| Capacity | VLANs supported: 4096 | ACL: 128000 | IPv4 routes: 2000000 | IPv6 routes: 1000000 | Policies: 8000 |
| MAC Address Table Size | 384000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | SAP MPLS Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | CLI |
| Encryption Algorithm | 256-bit AES |
| Features | Access Control List (ACL) support NetFlow Virtual PortChannel (vPC) technology MACsec support OpenFlow support Virtual Output Queuing (VOQ) Virtual Private LAN Service (VPLS) Control plane protection (CoPP) Virtual Extensible LAN (VXLAN) Location ID Separation Protocol (LISP) TrustSec support |
| Compliant Standards | IEEE 802.1ae |
| RAM | 8 GB |
| Status Indicators | Status link/activity |
| Interfaces | 24 x 40Gbit LAN QSFP |
| Compliant Standards | CISPR 22 Class A CISPR 24 EN 61000-3-2 EN 61000-3-3 EN55024 EN50082-1 EN 61000-6-1 EMC ICES-003 Class A AS/NZS 60950 GR-1089-CORE VCCI Class A GR-63-CORE ETSI 300 019 AS/NZS CISPR22:2004 Class A IEC/UL/CSA/EN 60950-1 EN 55022 Class A FCC CFR47 Part 15 A CNS 13438 Class A EN 300 386 KN32 KN35 |
| OS Required | Cisco NX-OS 7.3 or later |
| Width | 21.8 in |
| Depth | 15.9 in |
| Height | 1.7 in |
| Weight | 17.99 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
