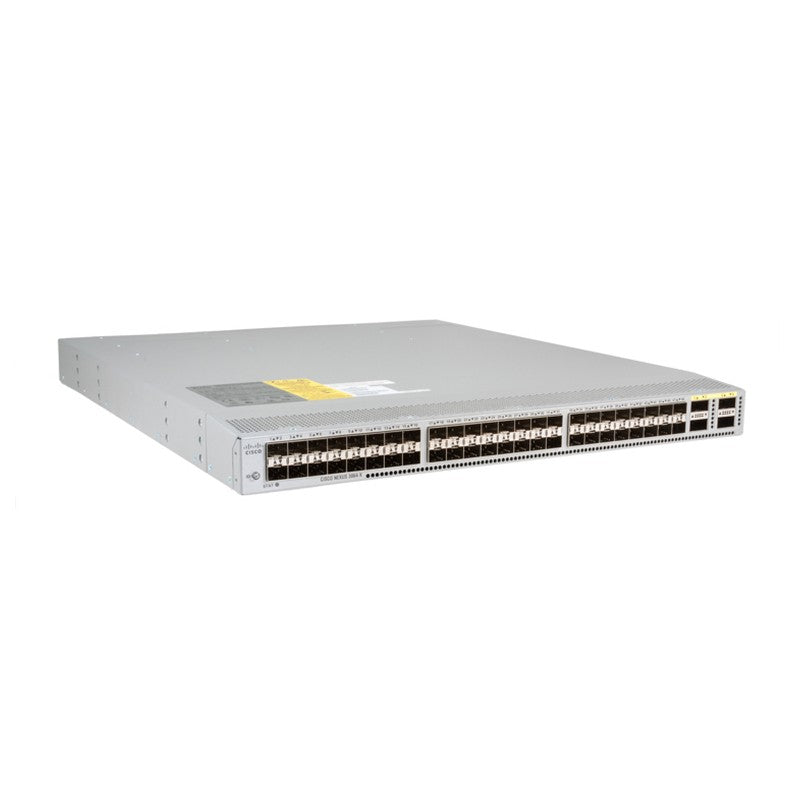

| Product & Series | Cisco N3K-C3064PQ-10GX (Cisco Nexus 3064-X), part of the Cisco Nexus 3000 Series |
| Form Factor | 1RU fixed |
| Ports | 48 x SFP+ ports (100 Mbps, 1 Gigabit and 10 Gigabit Ethernet); 4 x QSFP+ ports (each 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet) |
| Switching Capacity | 1.28 Tbps |
| Forwarding Rate | 950 Mpps |
| Throughput | Line-rate Layer 2 and Layer 3 on all ports |
| Packet Buffer | 9 MB shared |
| Boot Flash | 2 GB |
| MAC Addresses | 128,000 |
| VLANs | 4096 |
| Spanning Tree | RSTP 512 instances; MST 64 instances; PVRST+, PortFast, Root Guard, Bridge Assurance |
| Jumbo Frames | MTU up to 9216 bytes |
| ACL Entries | 2000 ingress, 1000 egress |
| Routing Table | 16,000 prefixes and 16,000 host entries; 8000 multicast routes |
| EtherChannel | 64 EtherChannels with vPC; up to 32 ports per EtherChannel; LACP IEEE 802.3ad |
| Layer 3 | 64-way ECMP; static, RIPv2, EIGRP, OSPF, BGP; OSPFv3 and BGPv6; BFD; HSRP and VRRP; VRF-lite; uRPF; GRE tunneling |
| Multicast | PIMv2, PIM-SM, SSM, BSR, Auto-RP, Static RP, MSDP, Anycast RP, IGMP versions 2 and 3 |
| QoS | 8 hardware queues per port; CoS trust, DSCP marking, WRED, ECN, WRR, egress strict-priority queuing |
| Security | VLAN ACLs, port ACLs, DHCP snooping with Option 82, dynamic ARP inspection, configurable CoPP, private VLANs, storm control |
| Management Ports | 2 x 10/100/1000-Mbps management ports; 1 x RS-232 serial console; 1 x USB |
| Management | POAP, Python scripting, Cisco EEM, SSHv2, AAA with RBAC, RADIUS, TACACS+, SNMP v1, v2 and v3, XML (NETCONF), SPAN and ERSPAN, sFlow, PTP (IEEE 1588) boundary clock, NTP |
| Power Supplies | 2 redundant; N2200-PAC-400W and N2200-PAC-400W-B (AC); N2200-PDC-400W and N3K-PDC-350W-B (DC) |
| AC Input | 100 to 240 VAC, 50 to 60 Hz, 89 to 91% efficiency at 220V |
| DC Input | -40 to -72 VDC, 33 A maximum, 85 to 88% efficiency |
| Typical Power | 143W (64 ports with Twinax at 100% load, 2 PSUs); 177W (64 ports with SR optics at 100% load, 2 PSUs) |
| Maximum Power | 199W |
| Heat Dissipation | Typical 488 BTU/hr (Twinax) or 605 BTU/hr (SR optics); maximum 683 BTU/hr |
| Fans and Airflow | Single hot-swappable fan tray with redundant fans (swap within 1 minute); N3K-C3064-FAN forward airflow (port-side exhaust), N3K-C3064-FAN-B reversed airflow (port-side intake) |
| Sound Power (Maximum) | 59.7 dBA at 40% fan duty; 66.4 dBA at 60%; 71.0 dBA at 100% |
| Dimensions (H x W x D) | 1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 50.5 cm) |
| Weight | 20.5 lb (9.3 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Storage Temperature | -40 to 158 F (-40 to 70 C) |
| Humidity | Operating 10 to 85% noncondensing; storage 5 to 95% noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000 m) |
| Supported QSFP+ Optics and Cables | QSFP-40G-SR4, QSFP-40G-CSR4, QSFP-40GE-LR4; QSFP-H40G-CU1M, CU3M, CU5M, ACU7M, ACU10M; QSFP-4SFP10G-CU1M, CU3M, CU5M; QSFP-4X10G-AC7M, AC10M |
| Supported SFP+ Optics and Cables | SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR, DWDM-SFP10G modules; SFP-H10GB-CU1M, CU3M, CU5M; SFP-H10GB-ACU7M, ACU10M; SFP-10G-AOC1M through AOC10M |
| Sibling Comparison | Nexus 3064-T has 48 10GBASE-T copper ports and 4 QSFP+ ports; Nexus 3064-32T has 32 10GBASE-T copper ports and 4 QSFP+ ports |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
