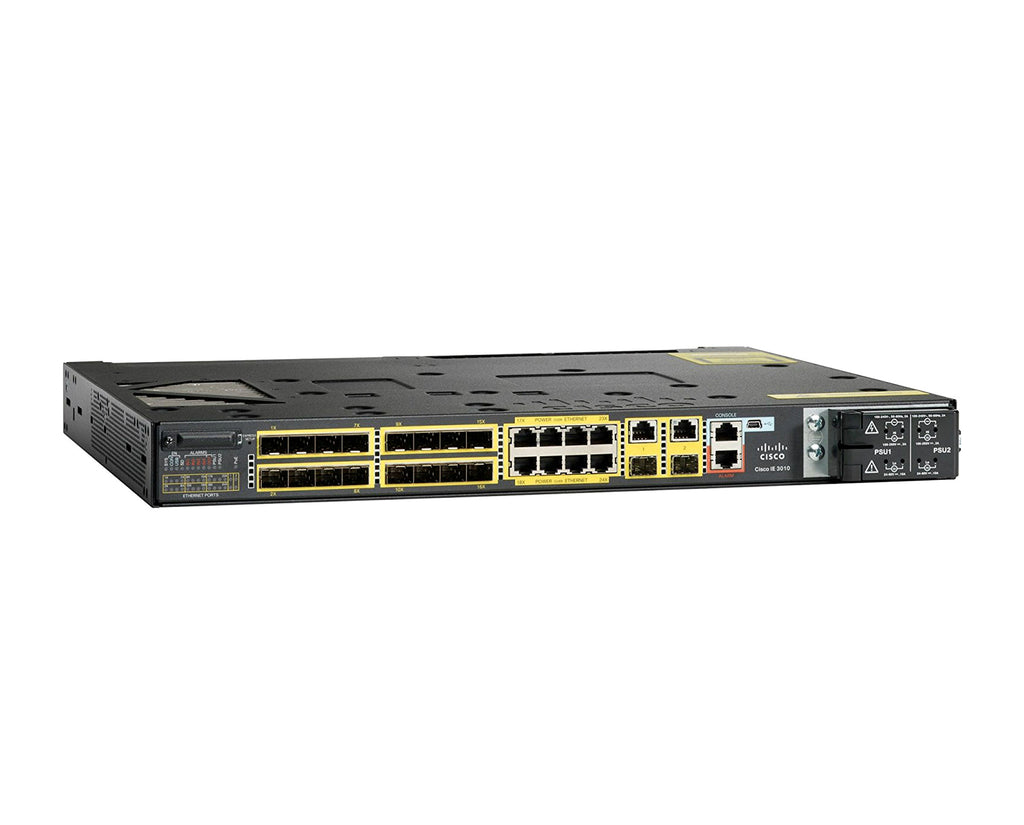

| Device Type | Switch - managed |
|---|---|
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 100 Mbit SFP 8 x 10/100/1000 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Performance | Forwarding performance (64-byte packet size): 6.5 Mpps |
| Capacity | Active VLANs: 255 |
| MAC Address Table Size | 12K entries |
| Jumbo Frame Support | 9018 bytes |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2 |
| Authentication Method | RADIUS, TACACS , Secure Shell v.2 (SSH2) |
| Features | DHCP support, VLAN support, IGMP snooping, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ag, IEEE 802.1ab (LLDP) |
| RAM | 256 MB DDR2 SDRAM |
| Flash Memory | 1 GB |
| Interfaces | 8 x 1000Base-T RJ-45 PoE ¦ 2 x 1000Base-T RJ-45 ¦ 18 x SFP (mini-GBIC) ¦ 1 x console RJ-45 management ¦ 1 x console - mini-USB Type B management ¦ 1 x alarm - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 0 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Rack Mounting Kit | Included |
| MTBF | 230,112 hours |
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, NOM, VCCI Class A ITE, EN 61000-3-3, EN55024, CISPR 22, CB, IEC 60529 IP20, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, KCC, UL 508, FCC Part 15 A, CISPR 11, AS/NZS 3548 Class A, CSA 22.2 No. 142, EN 61131-2, EN 61326-1, EN 300 386 |
| Pricing Type | Refurbished |
| Software Included | Cisco IOS LAN Base |
| Width | 17.5 in |
| Depth | 14 in |
| Height | 1.8 in |
| Weight | 9.92 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
