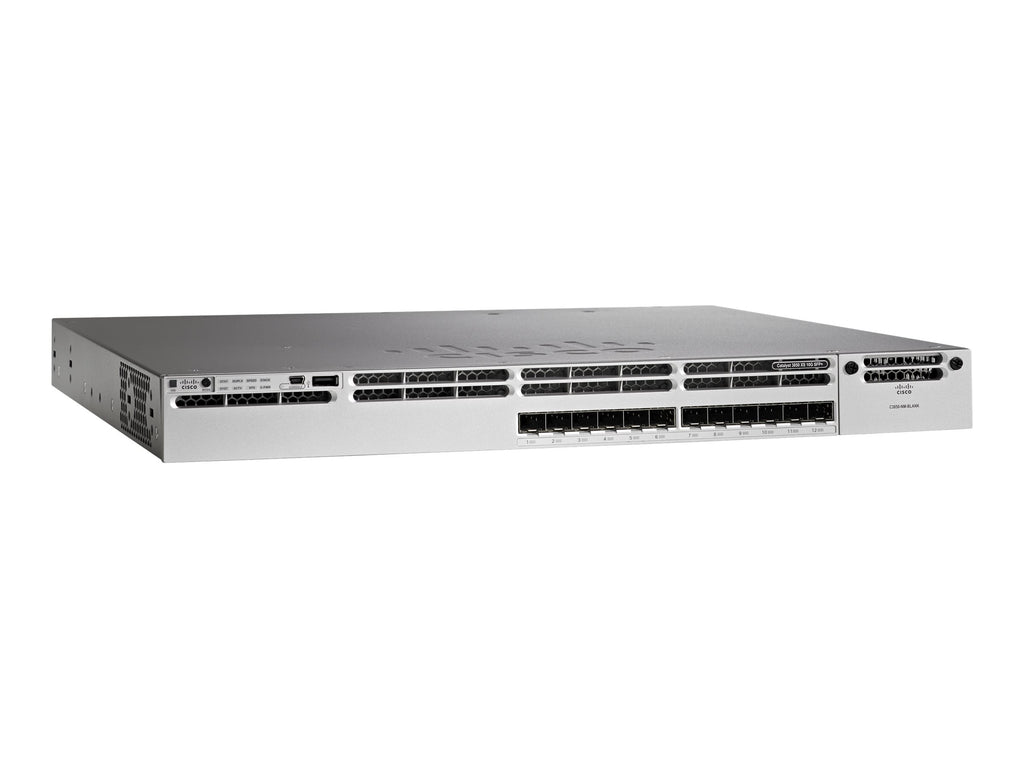

| Device Type | Switch - 12 ports - L3 - managed - stackable |
| Enclosure Type | Desktop rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 1 Gigabit / 10 Gigabit SFP |
| Performance | Switching capacity: 320 Gbps ¦ Stacking bandwidth: 480 Gbps |
| Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4000 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF BGP-4 IS-IS RIP-1 RIP-2 EIGRP IGMPv2 IGMP PIM-SM PIM-DM IGMPv3 EIGRP for IPv6 OSPFv3 PIM-SSM policy-based routing (PBR) RIPng MLDv2 MLD |
| Remote Management Protocol | SNMP 1 RMON 1 RMON 2 Telnet SNMP 3 SNMP 2c TFTP SSH CLI |
| Authentication Method | Kerberos Secure Shell (SSH) RADIUS TACACS |
| Features | DHCP support ARP support Syslog support PIM snooping Multiple Spanning Tree Protocol (MSTP) support DHCP snooping Dynamic Trunking Protocol (DTP) support Port Aggregation Protocol (PAgP) support Trivial File Transfer Protocol (TFTP) support Access Control List (ACL) support Quality of Service (QoS) SSH support Virtual Route Forwarding-Lite (VRF-Lite) Uni-Directional Link Detection (UDLD) Rapid Per-VLAN Spanning Tree Plus (PVRST ) Shaped Round Robin (SRR) Link Aggregation Control Protocol (LACP) Remote Switch Port Analyzer (RSPAN) Energy Efficient Ethernet Virtual Routing and Forwarding (VRF) Cisco StackWise-480 technology Cisco StackPower technology Flexible NetFlow (FNF) 802.1x authentication radio resource management (RRM) ARP inspection Weighted Tail Drop (WTD) VLAN Trunking Protocol (VTP) Bridge protocol data unit (BPDU) Control plane protection (CoPP) |
| Compliant Standards | IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1s |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Status Indicators | Port transmission speed port duplex mode power system active status |
| Interfaces | 12 x 10GBase-X SFP ¦ 1 x USB Type A ¦ 1 x management (mini-USB) Type B ¦ 1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x network stack device |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1 1 (with optional power supply) |
| Power Provided | 350 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| MTBF | 371440 hours |
| Compliant Standards | CISPR 22 Class A CISPR 24 EN 61000-3-2 NOM EN 61000-3-3 EN55024 EN50082-1 EN 61000-6-1 EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 CCC ICES-003 Class A EN 61000-4-5 FCC CFR47 Part 15 UL 60950-1 IEC 60950-1 EN 60950-1 UL 60950-1 Second Edition KCC RoHS FCC Part 15 A AS/NZS 3548 Class A BSMI Class A EN 60950-1 Second Edition IEC 60950-1 Second Edition VCCI Class A KN24 KN22 Class A AS/NZS CISPR 22 CNS 13438 EN 55022 Class A EN 300 386 CAN/CSA-C22.2 No. 60950-1 |
| Software Included | Cisco IOS IP Services |
| Width | 17.5 in |
| Depth | 17.7 in |
| Height | 1.8 in |
| Weight | 12.79 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
