Cisco WS-C2960X-24PSQ-L Switch - 24 ports - Managed - Rack-mountable

Roll over image to zoom in Click on image to zoom

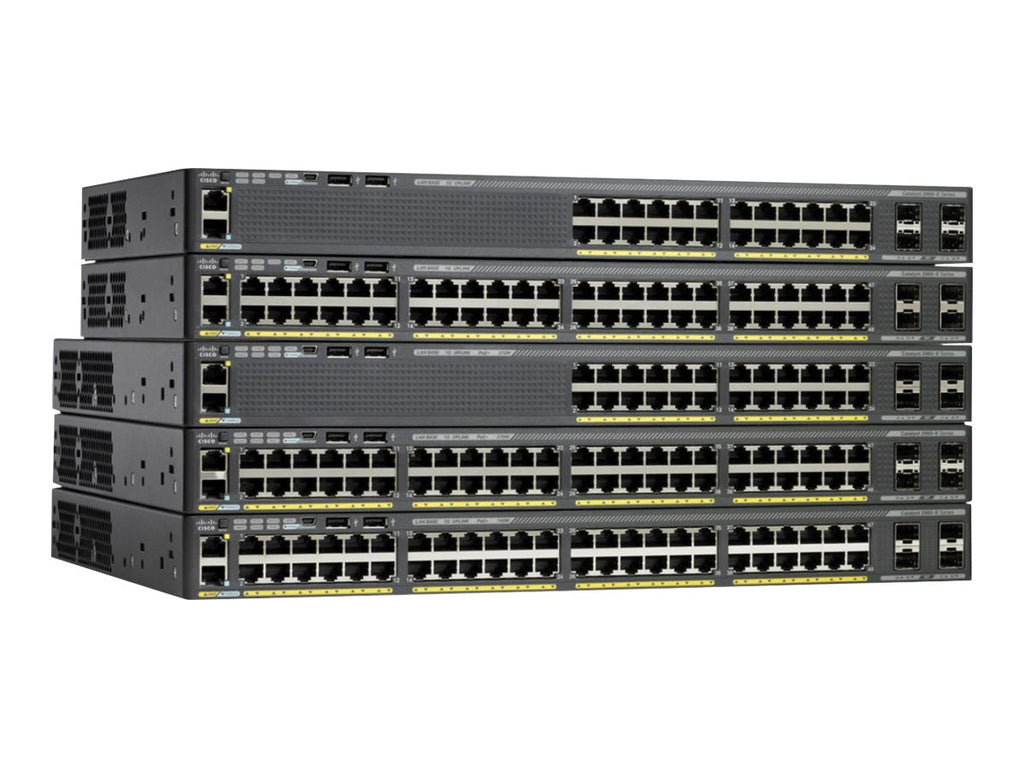

Cisco WS-C2960X-24PSQ-L Switch

Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS Software features.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Device Type	Switch - 24 ports - managed
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (8 PoE ) 2 x Gigabit SFP 2 x 10/100/1000
Power Over Ethernet (PoE)	PoE
PoE Budget	110 W
Performance	Switching capacity: 216 Gbps \| Forwarding performance (64-byte packet size): 71.4 Mpps
Capacity	Active VLANs: 1023
Jumbo Frame Support	9216 bytes
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS
Features	Full duplex capability, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST ), fanless, Shaped Round Robin (SRR), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS), DiffServ Code Point (DSCP) support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor	: 600 MHz
RAM	512 MB
Flash Memory	128 MB
Status Indicators	Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE, link/activity
Interfaces	8 x 1000Base-T RJ-45 3 ports (PoE ) / 7 ports (PoE) - 30 W \| 16 x 1000Base-T RJ-45 \| 2 x 1000Base-T RJ-45 uplink \| 2 x SFP uplink \| 1 x 100Base-TX RJ-45 management \| 1 x console RJ-45 \| 2 x USB Type A \| 1 x mini-USB Type B management
Power Device	Internal power supply
Power Redundancy	Optional
Voltage Required	AC 120/230 V (50/60 Hz)
Features	Redundant Power System (RPS) connector
MTBF	462,680 hours
Compliant Standards	CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, RoHS 2011/65/EU, EN 300386
Software Included	Cisco IOS LAN Base
Width	17.5 in
Depth	11 in
Height	1.8 in
Weight	12.79 lbs

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.

Cisco WS-C2960X-24PSQ-L Switch 24 ports - Managed - Rack-mountable - New

Overview

Cisco WS-C2960X-24PSQ-L Switch 24 ports - Managed - Rack-mountable - New
