| Manufacturer | Cisco |
| Product Line | Cisco Catalyst |
| Series | Catalyst 9400 |

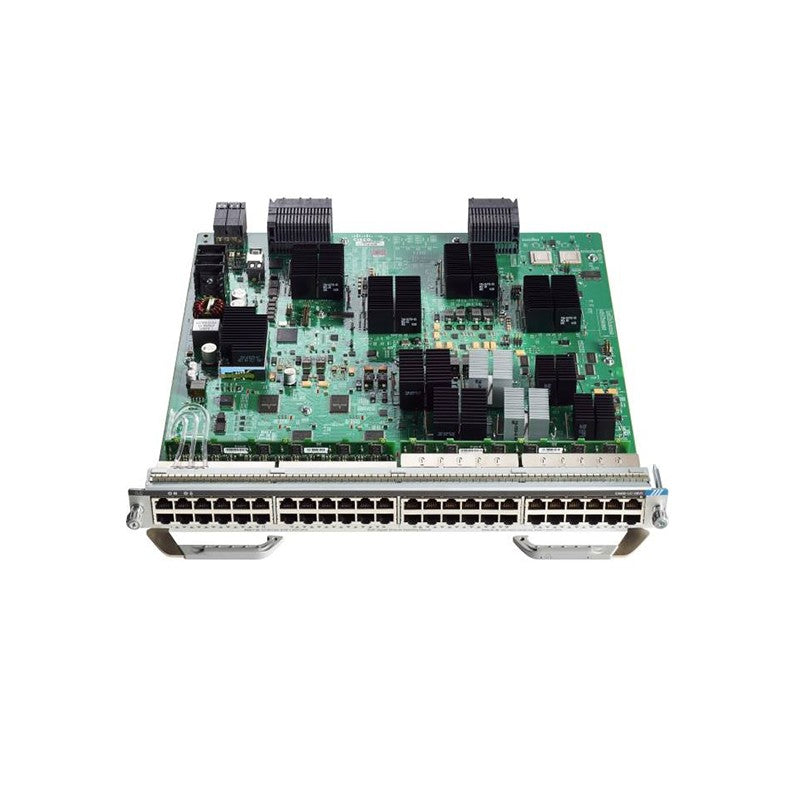

| Product Type | Switch Line Card — plug-in module |
| Ports (mGig) | 24 x 100M/1G/2.5G/5G/10G RJ45 (UPOE, IEEE 802.3bz) |
| Ports (1G) | 24 x 10/100/1000 RJ45 (UPOE) |
| PoE Standard | IEEE 802.3af (15W), IEEE 802.3at PoE+ (30W), Cisco UPOE (60W) |
| Max PoE per Port | 60W (UPOE) |
| Bandwidth per Slot (SUP-1) | 80 Gbps |
| Bandwidth per Slot (SUP-1XL / SUP-1XL-Y) | 240 Gbps |
| Bandwidth per Slot (C9400X-SUP-2) | 240 Gbps |
| Bandwidth per Slot (C9400X-SUP-2XL) | 480 Gbps (card limited to 240 Gbps) |
| mGig Cabling | Cat5e (up to 5G) / Cat6 (up to 10G) |
| Security | MACsec 256-bit, TrustSec SGT, 802.1X, Trustworthy Systems, RFID tag |
| Timing | IEEE 1588 / 802.1AS PTP (hardware-ready) |
| ASIC | Cisco UADP 2.0 XL |
| Hot-Swap | Yes — OIR without system impact |
| Compatible Chassis | C9404R (48–96 ports), C9407R (48–240 ports), C9410R (48–384 ports) |
| Compatible Supervisors | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, C9400X-SUP-2XL |
| Minimum Software | Cisco IOS XE 16.6.2 |
| MTBF | 437,300 hours |
| Max Rated Power | 240W |
| Standards | IEEE 802.3ab, 802.3af, 802.3at, 802.3az, 802.3bt, 802.3bz, 802.3z, 802.1AS, IEEE 1588 |
| Dimensions | 1.60 x 14.92 x 14.57 in. |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
