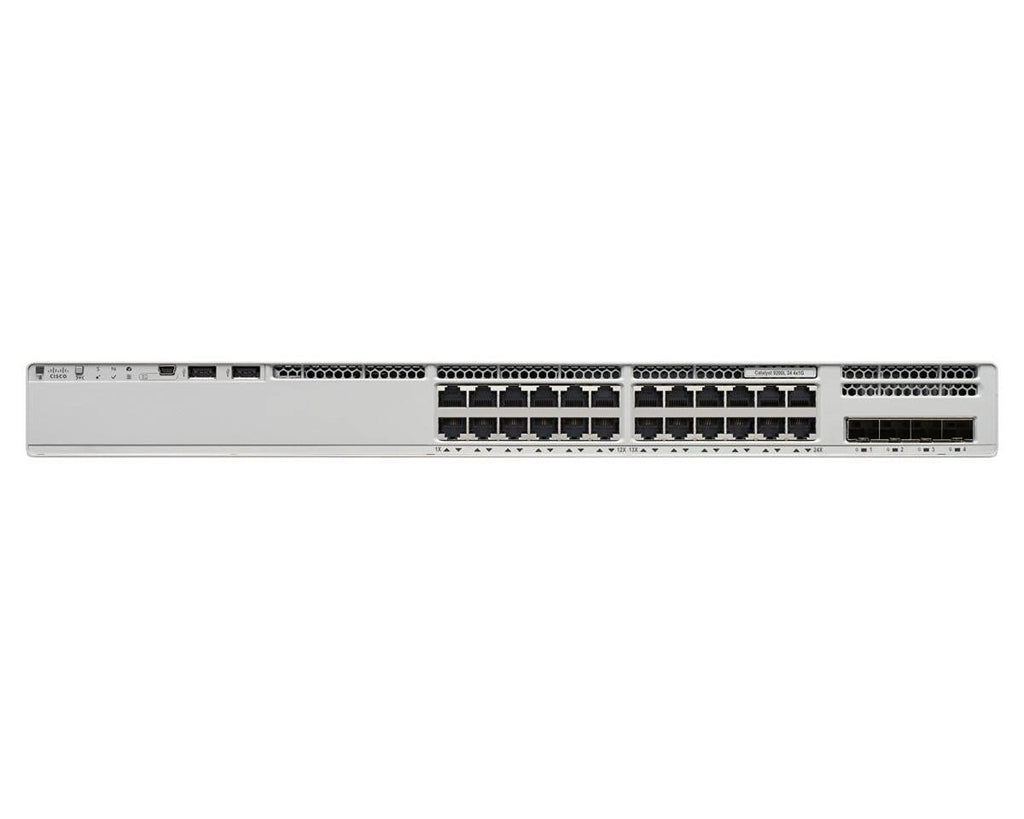

| Device Type | Switch - 24 ports - L3 - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE ) 4 x 10 Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 740 W |
| Performance | Stacking bandwidth: 80 Gbps ¦ Switching capacity: 128 Gbps ¦ Forwarding rate: 190.4 Mpps |
| Capacity | Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF RIP-1 RIP-2 EIGRP VRRP PIM-SM EIGRP for IPv6 PIM-SSM policy-based routing (PBR) RIPng MSTP |
| Remote Management Protocol | SNMP 1 RMON 1 RMON 2 SNMP 3 SNMP 2c CLI NETCONF RESTCONF |
| Features | Quality of Service (QoS) Cisco StackWise Technology Rapid Per-VLAN Spanning Tree Plus (PVRST ) Shaped Round Robin (SRR) PXE support Remote Switch Port Analyzer (RSPAN) NetFlow Energy Efficient Ethernet Management Information Base (MIB) Class of Service (CoS) Flexible NetFlow (FNF) 802.1x authentication DiffServ Code Point (DSCP) support MACsec support 6MB packet buffer Control plane protection (CoPP) Switched Port Analyzer (SPAN) Embedded Event Manager (EEM) Protocol Independent Multicast (PIM) First Hop Security (FHS) PVLAN support Committed Information Rate (CIR) |
| Compliant Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3af IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1s IEEE 802.3at IEEE 802.3bz |
| RAM | 2 GB |
| Flash Memory | 4 GB |
| Interfaces | 24 x 1000Base-T RJ-45 PoE - 30 W ¦ 4 x 10GBase-X SFP uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45 |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 (max) |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| MTBF | 390310 hours |
| Compliant Standards | CISPR 22 Class A CISPR 24 EN 61000-3-2 EN 61000-3-3 EN55024 EN 61000-6-1 AS/NZS 60950-1 CCC ICES-003 Class A UL 60950-1 IEC 60950-1 EN 60950-1 RoHS AS/NZS 3548 Class A BSMI Class A VCCI Class A CNS 13438 EN 55022 Class A FCC CFR47 Part 15 B Class A EN 300 386 KN32 KN35 EN 55032 Class A CISPR 32 Class A CAN/CSA-C22.2 No. 60950-1 TCVN 7189 Class A V-3 Class A TCVN 7317 CISPR 35 |
| Width | 17.5 in |
| Depth | 1.7 in |
| Height | 11.3 in |
| Weight | 12.13 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
