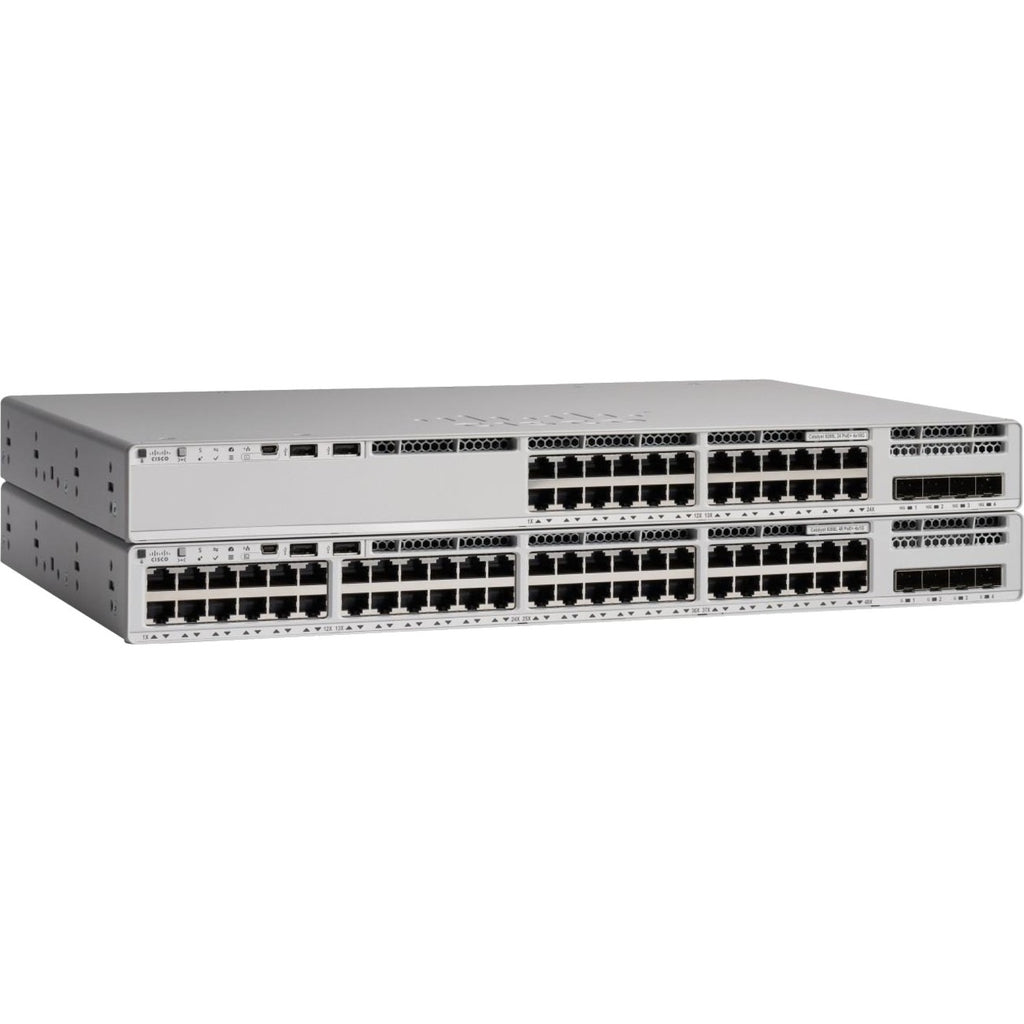

| Model | C9200-48P-E |
| Series | Cisco Catalyst 9200 Series |
| Access Ports | 48 x IEEE 802.3at PoE+ (10/100/1000) |
| Uplinks | Modular (C9200-NM-4G2, C9200-NM-4X, C9200-NM-2Y1, C9200-NM-2Q1, or Blank) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| PoE Budget | 740W (Single Power Supply), 1440W (Dual Power Supplies) |
| Power Supply Options | PWR-C5/C6-125WAC, 600WAC, 1KWAC, 715WDC (Spare Only) |
| Default Power Supply | PWR-C6-1KWAC |
| Memory | 4 GB DRAM, 4 GB Flash |
| Stacking | StackWise-160, Up to 8 Members, 160 Gbps Bandwidth (C9200-STACK-KIT Required) |
| Virtual Networks | Up to 4 |
| Fan | Field-Replaceable Unit (FRU), Redundant |
| Dimensions (H x W x D) | 1.73 x 17.5 x 13.8 in. (4.4 x 44.5 x 35.0 cm) |
| Dimensions with Fan Module (H x W x D) | 1.73 x 17.5 x 15.4 in. (4.4 x 44.5 x 39.1 cm) |
| Weight | 12.12 lb (5.5 kg) |
| Acoustic Noise | 42 dB Typical, 45 dB Max (LpA) |
| MTBF | 375,570 Hours |
| Operating Temperature | -5C to 45C (23F to 113F) |
| Storage Temperature | -40C to 70C (-40F to 158F) |
| Operating Humidity | 5% to 90% Noncondensing |
| Operating Altitude | Up to 3000m |
| Storage Altitude | Up to 4500m |
| Connectors | RJ-45 Console and Management Ports |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
