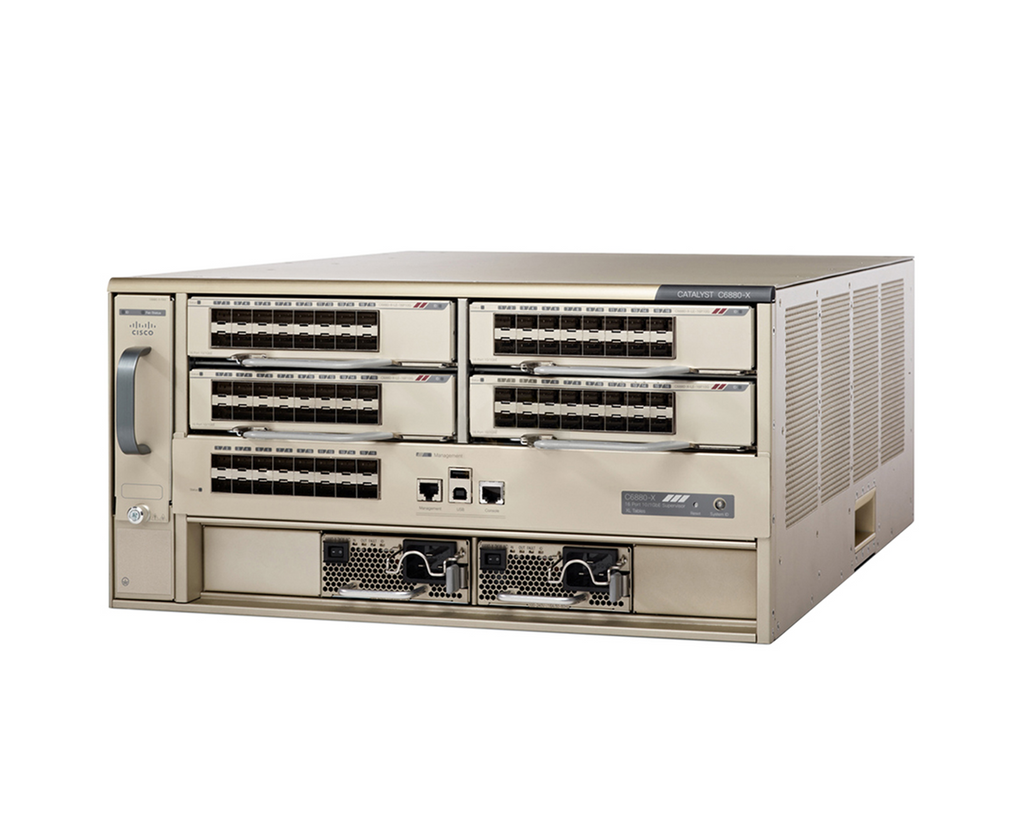

Cisco C6880-X-LE Catalyst 6880-X 16-Port 10GE SFP+ Standard Tables Extensible Fixed Aggregation Switch - New

The Cisco C6880-X-LE is an extensible fixed aggregation switch chassis from the Cisco Catalyst 6880-X Series, featuring an integrated Supervisor 2T engine with standard forwarding tables in a 5RU form factor. The base chassis provides 16 x 10GE/1GE SFP+ ports with 4 port card slots supporting 16 additional 10GE/1GE ports each, scaling up to 80 ports in 16-port increments with hot-swappable port cards. It delivers up to 2 Tbps switching capacity (4 Tbps with VSS), 220 Gbps per port card slot, 300 Mpps IPv4 forwarding, and 150 Mpps IPv6 forwarding. The -LE standard tables variant supports 128K MAC entries, 256K IPv4 routes, 128K IPv6 routes, 64K shared ACL entries, 512K NetFlow entries per module slot (up to 2.5M per system), and 128K multicast routes. Two chassis can be combined into a Virtual Switching System (VSS) for high availability, eliminating the need for FHRP and STP dependencies. The platform runs on the same architecture as the Catalyst 6500 Supervisor Engine 2T and supports full L2/L3 services including MPLS, VPLS, EVN, VRF-Lite, MACsec encryption via Cisco TrustSec, CoPP, NetFlow, NAT, and jumbo frames up to 9216 bytes. The chassis supports 1+1 redundant power supplies and N+1 redundant fans with OIR for both. Ideal for small to midsize campus core and aggregation deployments requiring premium 10G services with the Cisco Catalyst 6500 feature set in a compact form factor.
