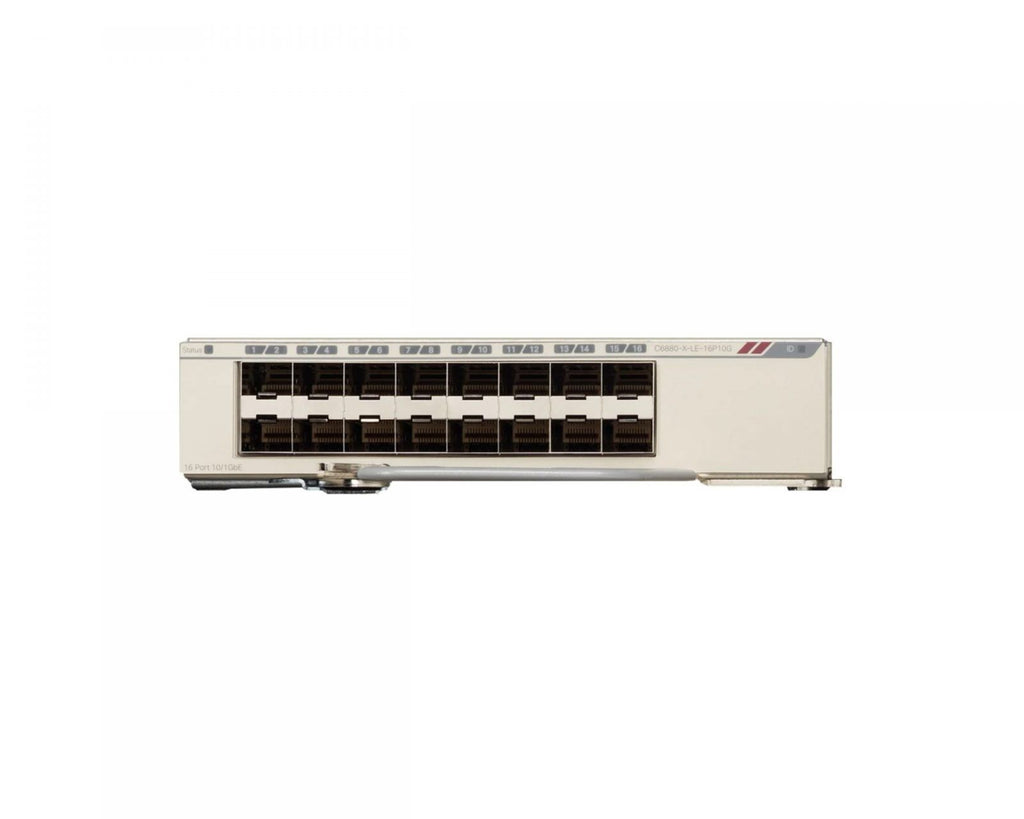

| Product & Series | Cisco C6880-X-LE-16P10G, part of the Cisco Catalyst 6880-X Series |
| Description | Cisco Catalyst 6880-X Multi Rate Port Card (Standard Tables) |
| Ports | 16 x 10G/1G ports (10 Gigabit Ethernet and 1 Gigabit Ethernet speeds) |
| Card Performance | 80 Gbps per 16-port 10G port card |
| Oversubscription | 16 ports of 10G at 2:1 in oversubscription mode (default); 8 ports of 10G at 1:1 in performance mode (configurable) |
| Chassis Capacity | 4 port card slots; up to 220 Gbps per slot; up to 2 Tbps switching capacity; up to 80 x 10G or 80 x 1G ports per chassis in 16-port increments; up to 158 ports in VSS |
| Forwarding Rate | IPv4 routing up to 300 Mpps; IPv6 routing up to 150 Mpps; Layer 2 bridging up to 300 Mpps |
| IPv4 Routes | 256K |
| IPv6 Routes | 128K |
| ACL Entries | 64K shared for QoS and security |
| NetFlow Entries | 512K per module slot; up to 2.5M per system |
| Multicast Routes | 128K IPv4; 128K IPv6 |
| MAC Entries | 128K |
| VLANs and Bridge Domains | 4K VLANs; 16K bridge domains |
| Jumbo Frames | Up to 9216 bytes for bridged and routed packets |
| Buffers | Ingress 1.25 MB per 10G port in 2:1 mode, 2.5 MB in 1:1 mode; egress 24 MB per 10G port in 2:1 mode, 48 MB in 1:1 mode |
| QoS | Default 1p7q4t queues, configurable 2p6q4t; DWRR and WRED; 16,348 aggregate policers; COS and DSCP queue mapping |
| Security | MACsec IEEE 802.1ae in hardware; Cisco TrustSec; IEEE 802.1X; port security; VLAN, router and port ACLs; private VLANs; CPU rate limiters (DoS protection); uRPF |
| MPLS and Virtualization | MPLS in hardware (up to 8192 VRFs at 300 Mpps); VPLS; GRE; EoMPLS; LDP; MPLS VPN; VRF Lite; EVN; VSS |
| NetFlow and Multicast | Flexible and sampled NetFlow in hardware; IGMPv3 snooping and MLDv2 snooping in hardware; PIM registers in hardware |
| Supported Optics and Cables | SFP-10G-SR, SFP-10G-LRM, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR, DWDM-SFP10G (40 wavelengths); SFP-H10GB-CU1M, CU3M, CU5M, ACU7M, ACU10M; GLC-SX-MM, GLC-SX-MMD, GLC-LH-SM, GLC-LH-SMD, GLC-EX-SMD, GLC-ZX-SM, GLC-ZX-SMD, GLC-BX-D, GLC-BX-U, GLC-T, GLC-GE-100FX |
| Serviceability | Hot swappable port cards; online insertion and removal supported |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Humidity | Operating 5 to 90% noncondensing; storage 5 to 95% |
| Sibling Comparison | C6880-X-16P10G has XL tables with 2048K IPv4 routes, 1024K IPv6 routes and 256K shared ACL entries |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
