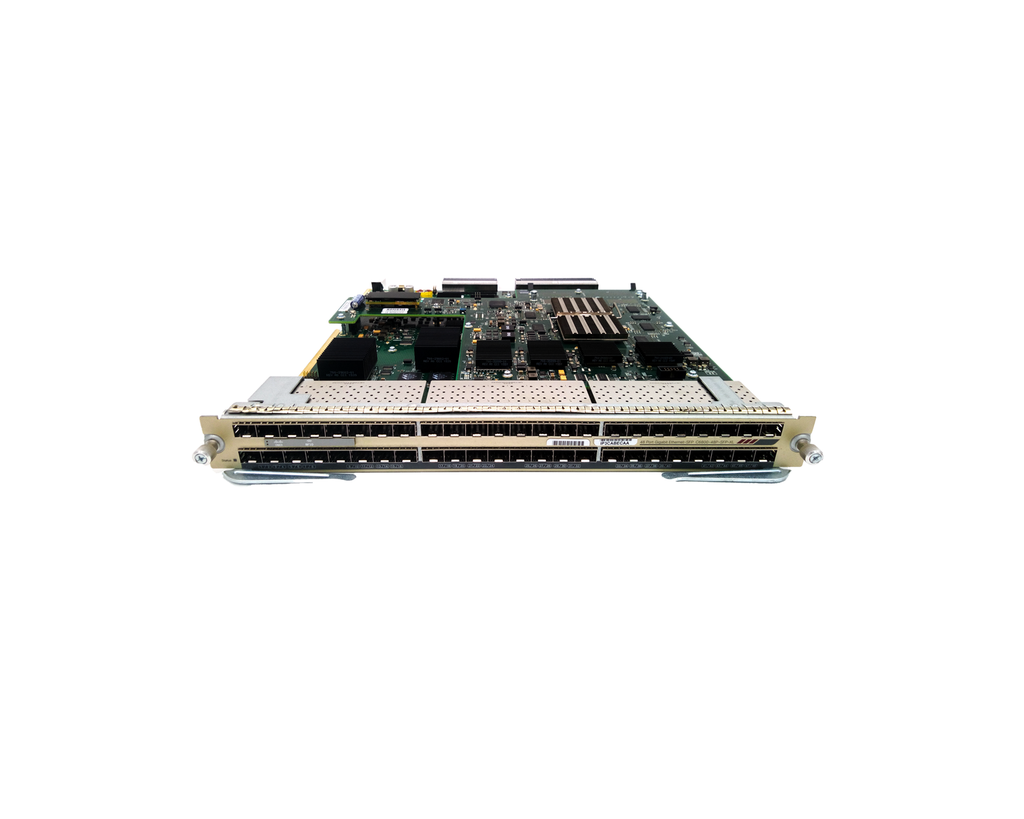

| Product Code | C6800-48P-SFP |
| Product Type | 6800 Series 1 Gigabit Modules |
| Port connector type | LC (optical) or RJ-45 (copper) depending on the SFP transceiver installed |
| Ports/Interface/ Connectors | 48 port; 1000BASE-SX, LX/LH, -ZX, -T; 1000BASE-CWDM; LC connecter |
| Port Density/ Chassis Model | ·240 ports/C6807-XL·528 ports/6513E·384 ports/6509E |
| Maximum Frame Size | Up to 9216 bytes/frame |
| Queues per Port (Tx = Transmit, Rx = Receive) | ·Tx-1p3q8T·Rx-2q8T |
| Scheduler | Deficit Weighted Round Robin (DWRR) |
| Buffer Size per Port | ·Rx-166KB·Tx-1.17MB |
| Onboard Memory | 1GB Default |
| Power Requirements | 334.44 and 339.44 Watts respectively |
| Backplane connection | Connects to the switch fabric using dual full-duplex 20-Gbps switch fabric channels (40 Gbps total). |
| Chassis/slot support | Can occupy slots 1-2 and 5-7 in C6807-XL chassis. Can occupy any slots in Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E. |
| Supervisor engine | Compatible with Supervisor Engine 2T and Supervisor Engine 2TXL. |
| Distributed forwarding and performance | Comes equipped with DFC4 or DFC4XL daughter cards, delivering optimal performance up to a sustained 60 Mpps for L2, IPv4 and MPLS forwarding and 30 Mpps for IPv6 forwarding. |
| Dimensions (H x W x D) | 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in the chassis. |
| Weight | 9.03 lb (4.1 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
