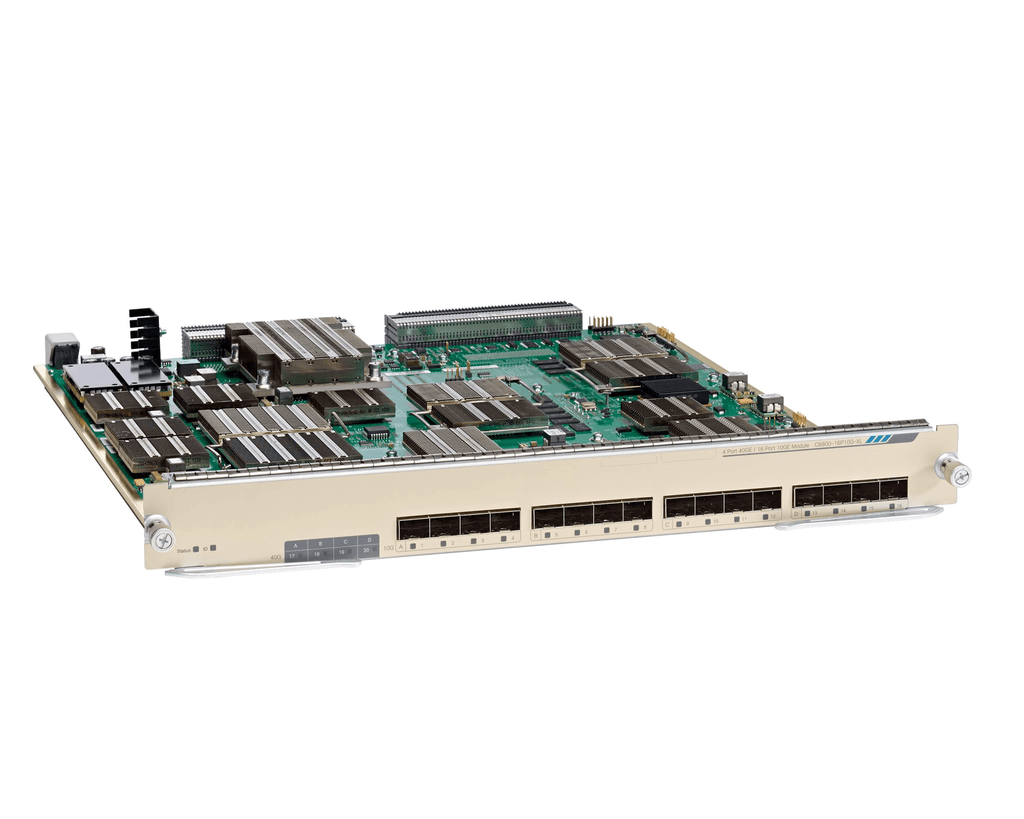

| Product Code | C6800-16P10G-XL= |
| Ports per module | ·16 ports—Sixteen 1G ports, or sixteen 10G ports, or four 40G ports ·Ports are numbered left to right.·2 port groups. Port ranges per port group: ·1 to 8 ·9 to 16 |
| Cabling distance | Depends on the SFP transceiver installed in the module port |
| Maximum frame size | Up to 9216 bytes per frame |
| Module oversubscription rate | 2:1 (When all sixteen 10G ports are used.) |
| Supervisor engine support | ·Supervisor Engine 2T-10GE·Supervisor Engine 6T |
| Software support | With Supervisor Engine 2T-10GE —Cisco IOS Release 15.2(1)SY or later With Supervisor Engine 6T – Cisco IOS Release 15.3(1)SY or later |
| Fabric channel speed | In a Cisco Catalyst 6807-XL chassis—80 GB per second In a Cisco Catalyst 6500-E series chassis—80 GB per second |
| TDR support | Supported with GLC-T (1G Copper SFP) transceivers |
| Digital Optical Monitoring (DOM) support | The DOM-supported 1G transceivers and 10G Fiber SFP/SFP transceivers |
| Operating temperature | Certified for operation: 32° to 104°F (0° to 40°C) Designed and tested for operation: 32° to 130°F (0° to 55°C) |
| Dimensions (H x W x D) | 1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm) |
| Weight | 11.02 lb (5.0 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
