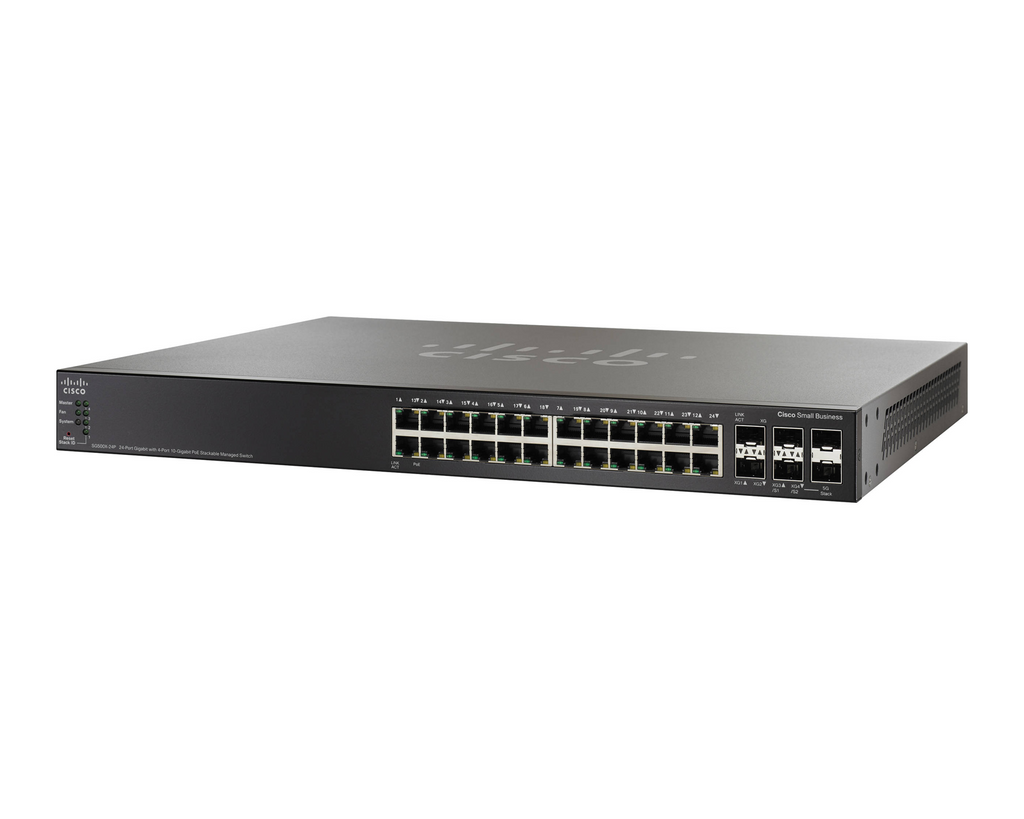

Cisco SG500X-24P-K9 24 10/100/1000 POE+ PORTS SWITCH WITH 375W POWER - BRAND NEW
Roll over image to zoom in Click on image to zoom
Cisco SG500X-24P-K9 24 10/100/1000 POE+ PORTS SWITCH WITH 375W POWER - BRAND NEW

Cisco SG500X-24P-K9 24 10/100/1000 POE+ PORTS SWITCH WITH 375W POWER - BRAND NEW

Condition:  new     MPN:  SG500X-24P-K9
Price:
$1,995.00
Stock:
In stock
View full product specifications

Overview

Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Front and side to back rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE ) 2 x 10/100/1000 (uplink) 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE
PoE Budget 370 W
Performance Switching capacity: 132 Gbps | Forwarding performance: 98 Mpps | Stacking bandwidth: 320 Gbps
Capacity Virtual interfaces (VLANs): 4095 | Spanning Tree Protocol instances: 254 | ARP entries: 2048 | QoS hardware queues: 8
MAC Address Table Size 16384 entries
Jumbo Frame Support 9216 bytes
Max Units In A Stack 8
Routing Protocol RIP-1 RIP-2 static IPv4 routing static IPv6 routing RIPng
Remote Management Protocol Telnet SNMP 3 HTTP HTTPS TFTP CLI SCP
Encryption Algorithm AES
Authentication Method RADIUS TACACS TACACS Secure Shell v.2 (SSH2)
Features Flow control DoS attack prevention DiffServ support Weighted Round Robin (WRR) queuing IPv6 support sFlow Virtual Cable Test (VCT) technology DHCP snooping Access Control List (ACL) support Quality of Service (QoS) DHCP server Dynamic ARP Inspection (DAI) Trusted Platform Module (TPM) IPv4 support DHCP relay Class of Service (CoS) Strict Priority (SP) tagged VLAN 802.1x authentication Type of Service (ToS) DiffServ Code Point (DSCP) support OpenFlow support Network Timing Protocol (NTP)
Compliant Standards IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3af IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.3ae IEEE 802.1s IEEE 802.1ab (LLDP) IEEE 802.3at IEEE 802.3az IEEE 802.1AX IEEE 802.1BR
RAM 1 GB
Flash Memory 2 GB
Interfaces 24 x 1000Base-T RJ-45 12 ports (PoE ) / 24 ports (PoE) | 2 x 1000Base-T RJ-45 uplink | 1 x management RJ-45 | 1 x console RJ-45 | 1 x USB-C management | 4 x Gigabit LAN SFP upgradable to 10G
Power Device Internal power supply
Installed Qty 1 (installed) / 1 (max)
Power Provided 525 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Compliant Standards FCC Class A certified CISPR 22 Class A EN 61000-3-2 EN50081-1 EN55022 ICES-003 EN 61000-3-3 UL 60950-1 Second Edition CSA C22.2 No. 60950-1-07 WEEE IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 RoHS EN 61000-6-3 EN 60825-2 IEC 60950-1 Second Edition VCCI Class A EN 60950-1:2006 AS/NZS 55022 IEC 60068-2-36
Width 17.3 in
Depth 11 in
Height 1.7 in

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
