| Brand | Cisco |

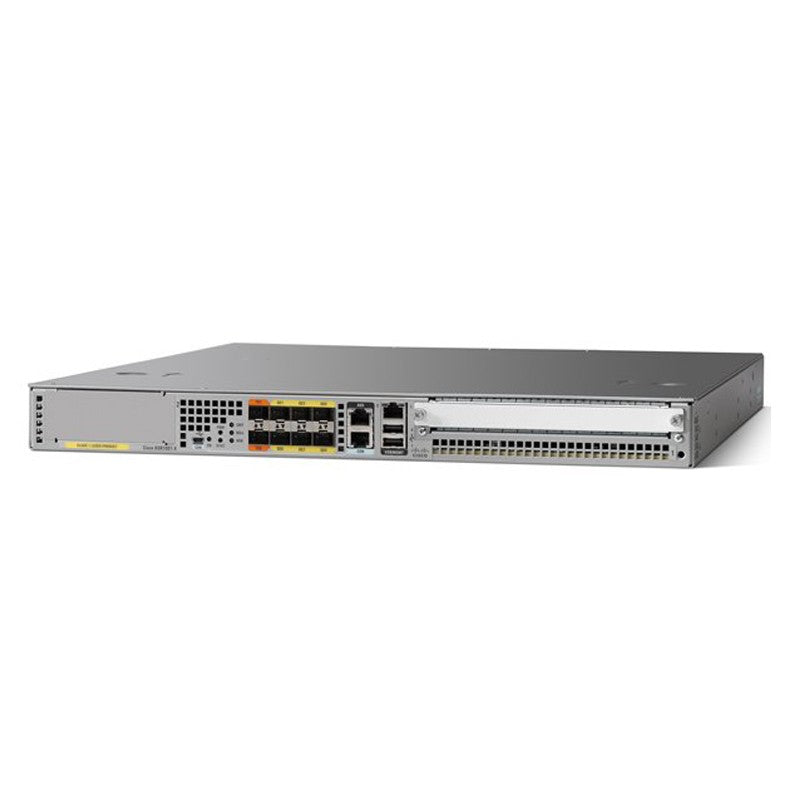

| Model | ASR1001X-10G-K9 |
| Series | Cisco ASR 1000 Series Aggregation Services Routers |
| Product Type | ASR 1001-X 10G Base Bundle, K9, AES |
| Forwarding Bandwidth | 10 Gbps (platform range 2.5 to 20 Gbps by software-activated license) |
| Built-in GE Ports | 6 x Gigabit Ethernet SFP |
| SPA Slots | 1 single-height |
| NIM Slots | 1 |
| Crypto Throughput | Up to 8 Gbps |
| Route Processor | Integrated quad-core; RP, ESP and SIP integrated in chassis |
| DRAM | 8 GB default, 16 GB maximum (2 slots, 4 or 8 GB each) |
| Storage | 8 GB eUSB; SSD-SATA-200G or SSD-SATA-400G sold separately |
| Route Scale | Up to 1M IPv4 or IPv6 routes (8 GB); up to 3.5M IPv4 or 3M IPv6 routes (16 GB) |
| Redundancy | Software redundancy only |
| Power Supplies | Dual |
| Management | Console; built-in management Ethernet port; Telnet, SSH, SNMP |
| Software | Cisco IOS XE Software Release 3.12.0S and later |
| Form Factor | 1RU |
| Dimensions (H x W x D) | 1.71 x 17.3 x 18.17 in (43.43 x 439.42 x 461.5 mm) |
| Weight | 25 lb (11.35 kg) fully loaded |
| Operating Temperature | 0 to 40°C nominal; 0 to 55°C short-term |
| Related Models | ASR1001X-5G-K9 (5G base bundle); ASR1001X-20G-K9 (20G base bundle); ASR1001X-10G-SEC (10G VPN+FW bundle) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
