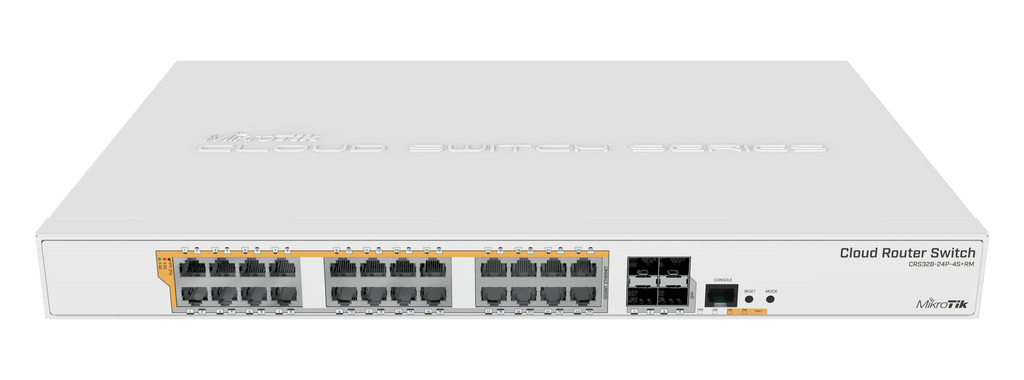

| Manufacturer | MikroTik |
| Part Number | CRS328-24P-4S+RM |
| Product Line | Cloud Router Switch (CRS) Series |
| Product Type | 28-Port Layer 2/3 PoE+ Cloud Router Switch |
| GbE PoE+ Ports | 24x autosensing 10/100/1000BASE-T RJ-45 (IEEE 802.3af/at; passive PoE; low-voltage PoE; up to 30W per port) |
| PoE Budget | 450W guaranteed (3x 150W per every 8 ports); 500W internal PSU |
| SFP+ Cages | 4x 10GbE SFP+ (modules not included) |
| Console Port | 1x RJ-45 serial |
| Switching Capacity | 128 Gbps |
| Nonblocking Throughput | 64 Gbps |
| Forwarding Rate | 95.2 Mpps |
| MAC Address Table | 16,000 entries |
| VLANs | IEEE 802.1Q; up to 4,096 simultaneous VLANs |
| Jumbo Frames | Up to 10,218 bytes |
| Operating System | Dual Boot — RouterOS Level 5 (Layer 3; full routing) or SwOS (Layer 2; switch-only) |
| Layer 3 (RouterOS) | BGP; OSPF; RIP; MPLS; VRRP; PBR; IPv4/IPv6; firewall; QoS; VPN |
| Layer 2 Features | STP; RSTP; MSTP; LACP; IGMP snooping; ACLs; port mirroring; storm control; port isolation |
| Management | Winbox GUI; web GUI; CLI; SSH; Telnet; SNMP |
| CPU | Dual-Core ARM v7 800 MHz |
| RAM | 512 MB |
| Storage | 16 MB flash |
| Power | 100 to 240 VAC; 500W PSU; 44W max (without PoE) |
| Form Factor | 1RU rack-mountable |
| Dimensions (W x D x H) | 17.4 x 12.0 x 1.73 in (443 x 305 x 44 mm) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
