| Part Number | JW687A |

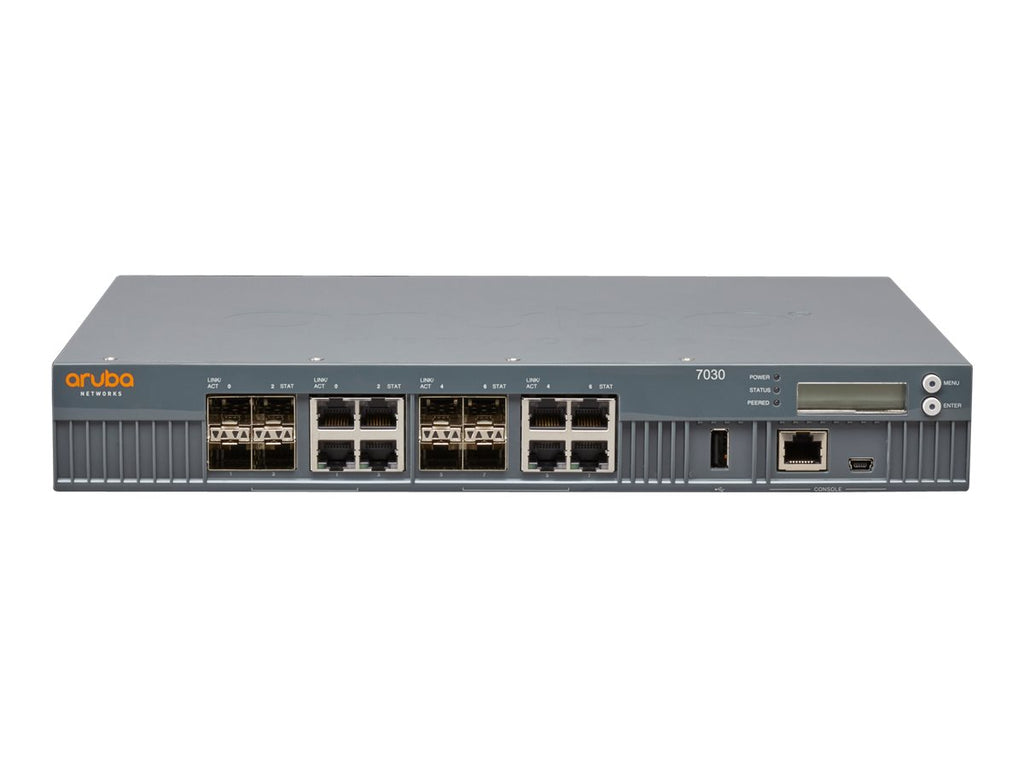

| Product Name | HPE Aruba 7030 (US) Wireless LAN Controller |
| Series | Aruba 7000 Cloud Services Controllers |
| Max Campus AP Licenses | 64 |
| Max Remote AP Licenses | 64 |
| Max Concurrent Users | 4,096 |
| Max VLANs | 4,094 |
| Active Firewall Sessions | 65,536 |
| Concurrent GRE Tunnels | 1,024 |
| Concurrent IPsec Sessions | 2,048 |
| Tunneled Node Ports | 2,048 |
| Firewall Throughput | 8 Gbps |
| 3DES/AES-CBC Throughput | 2.4 Gbps |
| AES-CCM Throughput | 4.0 Gbps |
| Network Ports | 8x 10/100/1000 GbE combo (RJ-45 and SFP) |
| USB | 1x USB 2.0 |
| Console | 1x micro-USB / RJ-45 |
| OOB Management | 1x dedicated port |
| Features | Stateful firewall, AppRF, 1500+ app visibility, L2/L3 roaming, ZTP, GRE, IPsec, policy-based routing |
| MTBF | 390,679 hours at 25°C |
| Regulatory Domain | US (JW687A) |
| 7000 Series comparison | 7005 = 16 AP; 7010 = 32 AP; 7030 = 64 AP |
| EoS Status | End of Sale |
| Form Factor | 1RU rack-mountable |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
