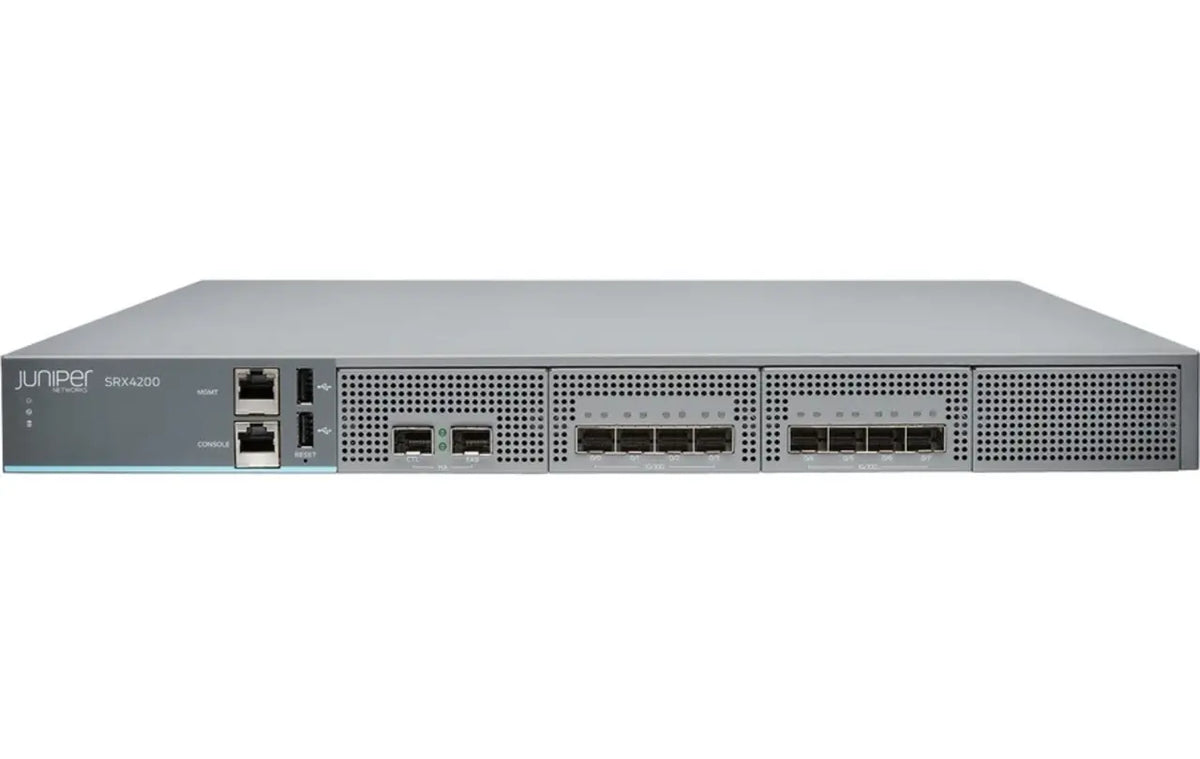

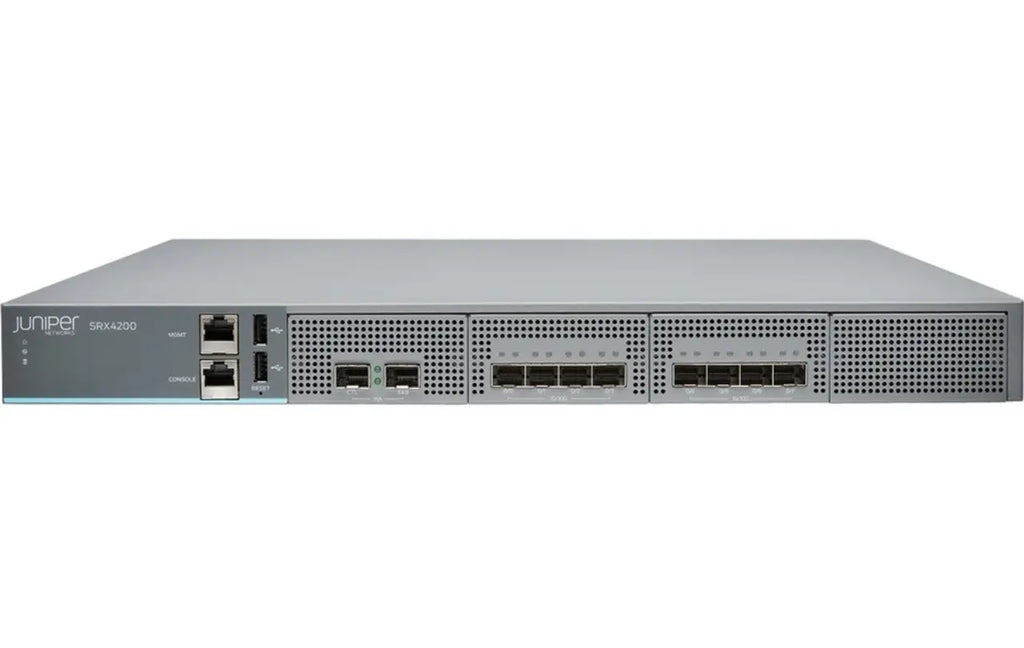

| Brand | Juniper |
| Model | SRX4200-SYS-JB-AC |
| Form Factor | 1U rack mount |
| Firewall Throughput (1,518 byte packets) | 80 Gbps |
| Firewall Throughput (IMIX) | 40 Gbps |
| IPsec VPN Throughput (IMIX) | 9.6 Gbps |
| IPsec VPN Throughput (1,400 byte packets) | 21 Gbps |
| Next-Generation Firewall Throughput | 19 Gbps |
| Connections Per Second | 500,000 |
| Maximum Concurrent Sessions (IPv4 or IPv6) | 10 million |
| Onboard Ports | 8 x 1GbE/10GbE SFP+ |
| High Availability Ports | 2 x 1GbE/10GbE SFP/SFP+ (control and fabric) |
| Management Port | 1 x 1GbE out-of-band (10/100/1000 RJ-45) |
| Console Port | 1 x RJ-45 (RS-232) |
| USB Ports | 2 x USB 2.0 (Type A) |
| Memory | 64 GB |
| Storage | 2 x 240 GB SSD, RAID 1 mirror |
| Power Supplies | 2 x 650 W AC, 1+1 redundant, hot-swappable when the second unit is running |
| AC Input | 100 to 127 VAC (low line), 200 to 240 VAC (high line), 50 to 60 Hz |
| Maximum System Power | 440 W |
| Fans | 8 fans in 4 fan trays (one tray redundant) |
| Airflow | Front to back |
| Dimensions (W x D) | 17.48 x 25 in (44.39 x 63.5 cm) |
| Rack Units | 1U |
| Weight | 28.9 lb (13.06 kg) with two AC power supplies |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Relative Humidity | 5% to 90%, noncondensing |
| Operating Altitude | Up to 6,562 ft (2000 m) |
| Mounting | Four-post 19-in. rack or enclosed cabinet |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
