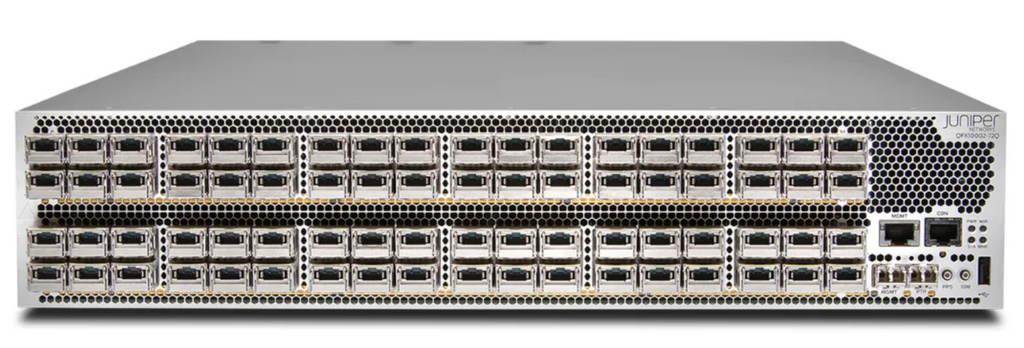

| Device Type | Switch - 72 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 2U |
| Subtype | 40 Gigabit Ethernet |
| Ports | 72 x 40 Gigabit QSFP (breakout compatible) |
| Performance | Throughput: 5.76 Tbps | Forwarding performance: 2 Bpps |
| Capacity | ARP entries: 256000 | Virtual interfaces (VLANs): 4000 | IPv4 routes: 2000000 | IPv6 routes: 2000000 | IPv4 forwarding information base (FIB): 256000 | IPv6 forwarding information base (FIB): 256000 | Equal-Cost Multipathing (ECMP) ways: 64 | IPv4 routes (Multicast): 128000 | IPv6 routes (Multicast): 128000 | Queues per port: 8 | Virtual output queues: 384000 | GRE tunnels: 4096 |
| MAC Address Table Size | 512K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF BGP-4 RIP-1 RIP-2 IGMPv2 IGMP VRRP OSPFv2 PIM-SM static IP routing PIM-DM IGMPv3 GRE OSPFv3 PIM-SSM Bidirectional PIM MSDP ECMP RIPng MLDv2 MLD Bidirectional Forwarding Detection (BFD) CIDR |
| Remote Management Protocol | SNMP 1 SNMP 2 RMON 1 RMON 2 RMON 3 RMON 9 Telnet SNMP 3 TFTP SSH CLI |
| Encryption Algorithm | MD5 AES |
| Authentication Method | Secure Shell (SSH) RADIUS TACACS Secure Shell v.2 (SSH2) |
| Features | BOOTP support RARP support ARP support VLAN support IGMP snooping DoS attack prevention port mirroring DiffServ support Weighted Round Robin (WRR) queuing IPv6 support SNTP support Weighted Random Early Detection (WRED) sFlow Spanning Tree Protocol (STP) support Rapid Spanning Tree Protocol (RSTP) support Multiple Spanning Tree Protocol (MSTP) support Data Center Bridging Exchange (DCBX) support Access Control List (ACL) support Quality of Service (QoS) DHCP server MLD snooping Unicast Reverse Path Forwarding (URPF) IPv4 support DHCP relay Management Information Base (MIB) Neighbor Discovery Protocol (NDP) VLAN Spanning Tree Protocol (VSTP) NTP time synchronization redundant hot swappable fans Class of Service (CoS) sFlow v5 IGMP proxy Precision Time Protocol (PTP) FCoE support Virtual Output Queuing (VOQ) system log Explicit Congestion Notification (ECN) EVB Type-Length-Value (TLV) Internet Control Message Protocol (ICMP) ICMP Router Discovery Protocol (IRDP) 24GB packet buffer |
| Compliant Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.3ae IEEE 802.1s IEEE 802.1ab (LLDP) IEEE 802.3ba IEEE 802.1Qbb IEEE 802.1Qaz |
| Processor | 1 x Intel: 2.5 GHz |
| RAM | 16 GB |
| Interfaces | 72 x 40Gbit LAN QSFP (breakout compatible) | 1 x console management | 1 x USB 2.0 management | 1 x 1000Base-T RJ-45 management | 1 x SFP management | 1 x SFP management |
| Power Device | Internal power supply |
| Installed Qty | 4 (installed) / 4 (max) |
| Power Redundancy | Yes |
| Power Provided | 1600 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 1000 Watt |
| Compliant Standards | CISPR 22 Class A BSMI CNS 13438 Class A CISPR 24 EN 61000-3-2 EN 61000-3-3 EN55024 ICES-003 Class A UL 60950-1 IEC 60950-1 EN 60950-1 WEEE RoHS REACH EN 60825-1 VCCI Class A GR-63-CORE KN22 Class A ETSI 300 019 EN 55022 Class A FCC CFR47 Part 15 A CAN/CSA-C22.2 No. 60950-1 EN 300386 |
| OS Required | JUNOS |
| Width | 17.4 in |
| Depth | 31 in |
| Height | 3.5 in |
| Weight | 68.34 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
