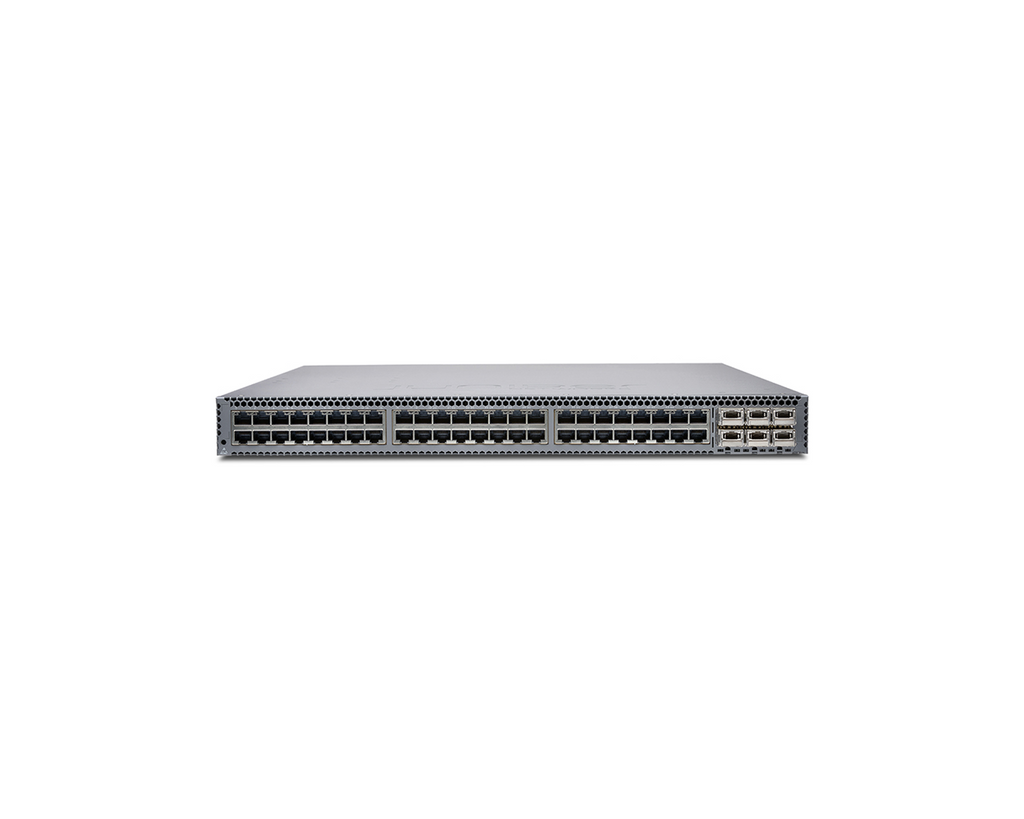

| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 100/1000/10000 6 x 40 Gigabit QSFP (breakout compatible) |
| Performance | Switching capacity: 1.44 Tbps | Switching capacity: 1.08 Bpps |
| IPv4 routes (Unicast) | 128000 |
| Virtual interfaces (VLANs) | 4091 |
| IPv4 hosts | 208000 |
| IPv4 routes (Multicast) | 104000 |
| IPv6 routes (Multicast) | 52000 |
| IPv6 routes (Unicast) | 64000 |
| ARP entries | 48000 |
| Multiple Spanning Tree Protocol instances | 64 |
| VLAN Spanning Tree Protocol instances | 253 |
| MAC Address Table Size | 288K entries |
| Jumbo Frame Support | 9216 bytes |
| Fibre Channel | FC-BB-5 FC-BB-6 |
| Routing Protocol | OSPF RIP RIP-2 IGMPv2 IGMP VRRP PIM-SM static IP routing IGMPv3 MSDP ECMP Bidirectional Forwarding Detection (BFD) CIDR |
| Remote Management Protocol | SNMP 1 SNMP 2 RMON Telnet SNMP 3 SSH CLI |
| Encryption Algorithm | MD5 AES |
| Authentication Method | Secure Shell (SSH) RADIUS TACACS Secure Shell v.2 (SSH2) |
| Processor | 1 x Intel: 1.5 GHz |
| RAM | 8 GB |
| Built-in Devices | 32 GB SSD |
| Interfaces | 48 x 10GBase-T RJ-45 | 6 x QSFP (breakout compatible) | 1 x console management | 1 x USB management | 1 x RJ-45 management | 1 x SFP management |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1 1 |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 335 Watt |
| Width | 17.4 in |
| Depth | 21.5 in |
| Height | 1.7 in |
| Weight | 24.69 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
