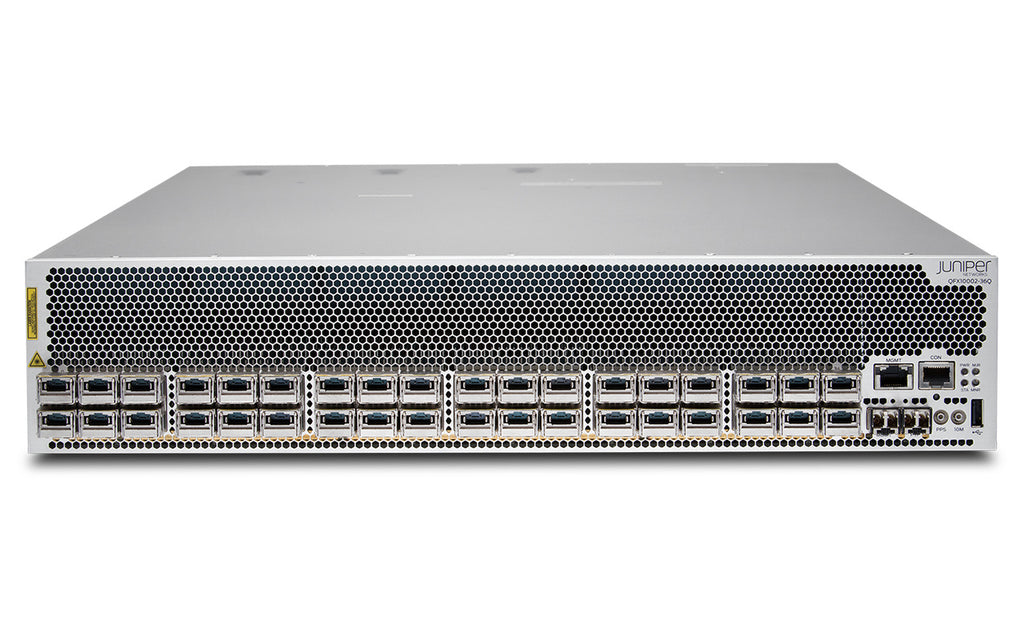

| Manufacturer | Juniper Networks |
| Product Line | Juniper QFX Series |
| Series | QFX10002 |
| Product Type | Fixed Core / Spine Switch, Layer 3 |
| Ports (40GbE) | 36 x 40GbE QSFP+ |
| Ports (100GbE) | 12 x 100GbE QSFP28 (every 3rd port in each 6-port cage) |
| Ports (10GbE breakout) | Up to 144 x 10GbE SFP+ (4x10G breakout per port) |
| Switching Capacity | 2.88 Tbps |
| Forwarding Rate | 1 Bpps |
| Latency | 2.5 µs (within PFE) / 5.5 µs (across PFEs) |
| ASIC | Juniper Q5 (custom) |
| Buffer | Deep HMC (Hybrid Memory Cube), 100 ms per port |
| Queue Architecture | Virtual Output Queue (VOQ), no head-of-line blocking |
| Queues per Port | 8 |
| CPU | Intel 2.5 GHz quad-core |
| RAM | 16 GB SDRAM |
| MAC Address Table | Up to 1,000,000 entries |
| IPv4 Routes | 2,000,000 |
| IPv6 Routes | 2,000,000 |
| IPv4 FIB | 256,000 (upgradeable to 2M via license) |
| IPv6 FIB | 256,000 (upgradeable to 2M via license) |
| IPv4 Multicast Routes | 128,000 |
| ARP Entries | 144,000 |
| VLANs | 4,000 |
| ECMP | 64-way |
| GRE Tunnels | 4,096 |
| Virtual Output Queues | 384,000 |
| Layer 3 | BGP, OSPF, IS-IS, RIP, MPLS, VXLAN, EVPN, MC-LAG, GRE, PIM-SM/SSM |
| Timing | PTP (IEEE 1588v2), SyncE |
| Management | 1 x SFP/RJ-45 management port, 1 x console, 1 x USB 2.0, SMB In/Out, 10 MHz In/Out |
| Operating System | Junos OS |
| Automation | Python, REST API, ZTP, Junos Telemetry Interface |
| Power Supply | 2 x 1600W AC (redundant), DC option available |
| Cooling | 3 x fan trays (front-to-back airflow) |
| Form Factor | 2U rack-mountable |
| Dimensions | 3.50 x 17.40 x 31.00 in. |
| Weight | 50.71 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
