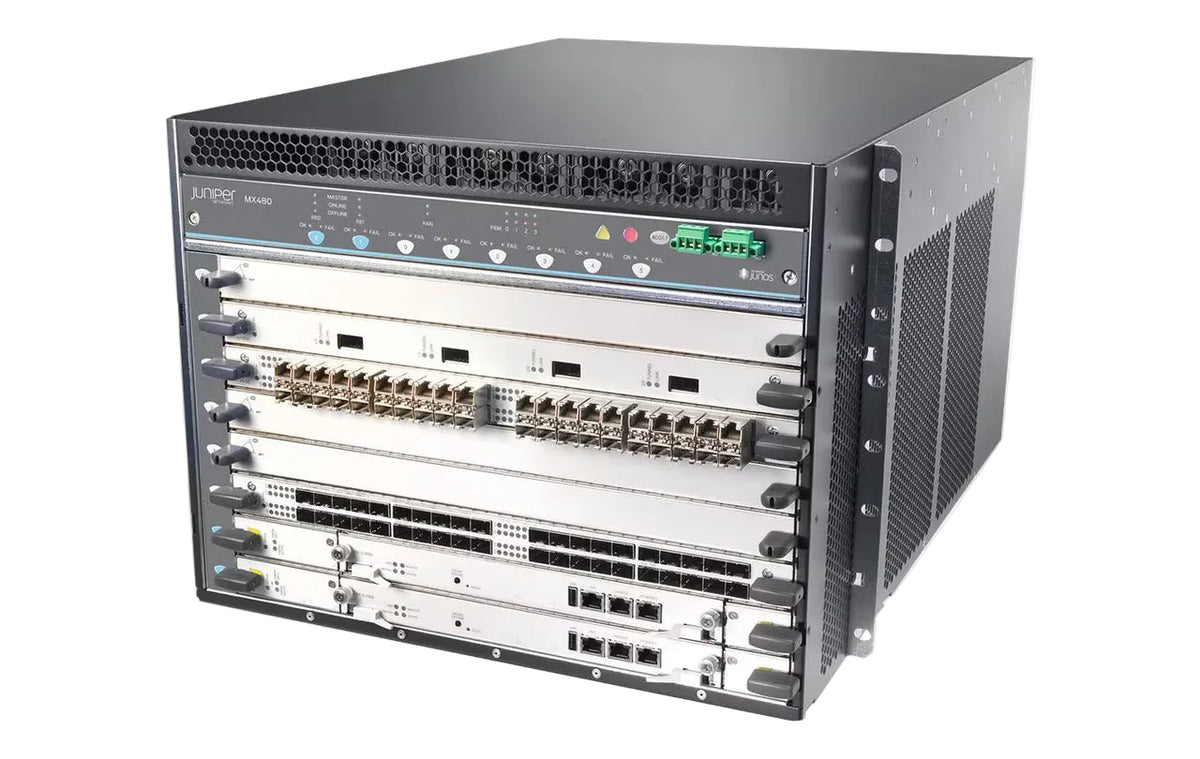

| Brand | Juniper |
| Model | MX480-PREMIUM3-DC |
| Series | Juniper MX Series Universal Routing Platforms |
| Bundle Contents | Premium 3 chassis for MX480 with 8 slots, enhanced midplane, redundant Routing Engines, SCBEs and DC power |
| Power Input | DC |
| Chassis Slots | 8 (6 line card slots and 2 SCB slots) |
| Line Card Slots | 6 (DPC, MPC or FPC; an FPC uses two DPC slots) |
| Maximum Line Cards | 6 DPCs or MPCs, or 3 FPCs; up to 12 MICs on MPCs |
| SCB Slots | 2 (SCB0 and SCB1) |
| Routing Engine Slots | 2 (RE0 and RE1, installed in the SCBs) |
| Supported Routing Engines | RE-S-1800, RE-S-X6-64G, RE-S-X6-128G |
| Supported SCBs | SCB-MX, SCBE-MX, SCBE2-MX, SCBE3-MX |
| Switch Fabric Capacity Per Slot | 480 Gbps |
| System Capacity | 5.76 Tbps half duplex |
| Fabric Bandwidth Per Slot by SCB Type | SCB-MX 240 Gbps (120 Gbps redundant); SCBE-MX 240 Gbps (160 Gbps redundant); SCBE2-MX 480 Gbps (340 Gbps redundant); SCBE3-MX up to 1.5 Tbps with MPC10E (1 Tbps redundant) |
| Power Entry Module Bays | 4 (PEM0 to PEM3) |
| DC Power Supply Models | PWR-MX480-DC, PWR-MX480-1600-DC, PWR-MX480-2400-DC (high-voltage DC) |
| DC Supplies for a Fully Configured Router | 2 required; 4 for full redundancy |
| DC Power Zoning | Zone 0 (PEM0 or PEM2): fan tray, line card slots 0 and 1, SCB slots 0 and 1; Zone 1 (PEM1 or PEM3): fan tray, line card slots 2 to 5 |
| Base System Power | 40 W |
| Cooling System Power | 110 W normal-capacity; 160 W high-capacity |
| SCBE-MX Power | 160 W at 55 C, 130 W at 40 C, 120 W at 25 C |
| SCBE2-MX Power | 185 W at 55 C, 160 W at 40 C, 155 W at 25 C |
| Routing Engine Power | 90 W for RE-S-1800; 110 W for RE-S-X6-64G and RE-S-X6-128G |
| Maximum Thermal Output, DC | 9,632 BTU per hour (2,823 W), estimate |
| Fan Tray | 1 x FFANTRAY-MX480 or FFANTRAY-MX480-HC (high-capacity) |
| Airflow | Side-to-side |
| Air Filter | FLTR-KIT-MX480 |
| Craft Interface | Hot-insertable and hot-removable, with alarm relay contacts and LEDs |
| Software | Junos OS, with Unified ISSU and Junos Virtual Chassis |
| Rack Mounting | 19-in. rack, approximately 8 U |
| Dimensions (H x W x D) | 14.0 x 17.45 x 24.5 in (35.6 x 44.3 x 62.2 cm); 27.75 in (70.5 cm) deep with cable management brackets |
| Weight, Chassis | 65.5 lb (29.7 kg) with midplane, fan tray, air filter and cable management brackets |
| Weight, Maximum Configuration | 221.03 lb (100.26 kg) |
| Weight, DC Power Supply | 3.8 lb (1.7 kg); high-capacity 6.2 lb (2.81 kg) |
| Weight, Fan Tray | 6.8 lb (3.08 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Nonoperating Storage Temperature | -40 to 158 F (-40 to 70 C) in shipping container |
| Relative Humidity | 5% to 90%, noncondensing |
| Operating Altitude | No performance degradation to 10,000 ft (3,048 m) |
| Seismic | Designed to meet Telcordia Technologies Zone 4 earthquake requirements |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
