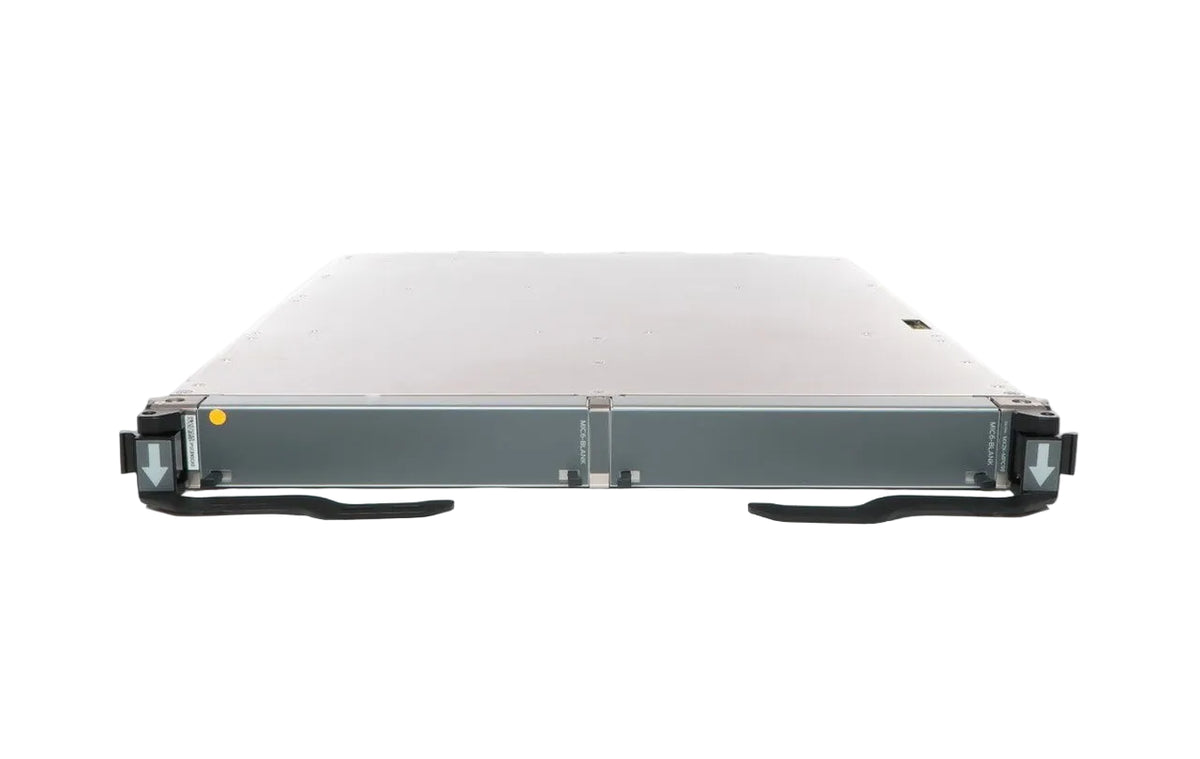

| Brand | Juniper |
| Model | MX2K-MPC9E |
| CLI Name | MPC9E 3D |
| Module Type | Modular port concentrator (MPC) line card |
| Supported Chassis | MX2008, MX2010, MX2020 |
| Line-Rate Throughput | Up to 1.6 Tbps (1,600 Gbps) on MX2000 routers |
| Slot Capacity (MX2000) | MX2008 1.6 Tbps; MX2010 and MX2020 4 Tbps |
| Packet Forwarding Engines | 4, each up to 400 Gbps |
| Forwarding Chipset | Junos Trio |
| MIC Slots | 2 |
| Compatible MICs | MIC-MRATE (12 QSFP+ ports), MIC-MACSEC-MRATE (12 QSFP+ ports with MACsec) |
| Maximum Line-Rate Port Density | 96 x 10GbE, 24 x 40GbE, 16 x 100GbE |
| Port Speeds (MIC-MRATE) | 10GbE (default), 40GbE or 100GbE, selectable per port; 4 x 10GbE through a breakout cable |
| 100GbE Ports (MIC-MRATE) | 8 per MIC (ports 0 to 3 and 6 to 9) |
| Aggregate Port Capacity (MIC-MRATE) | 400 Gbps across ports 0 to 5, and 400 Gbps across ports 6 to 11 |
| MACsec (MIC-MACSEC-MRATE) | 10GbE, 40GbE and 100GbE; GCM-AES-128 and GCM-AES-256 |
| Switch Fabric Boards | SFB and SFB2 |
| Throughput with SFB | Limited to 800 Gbps |
| MTU (Transit Traffic) | 256 to 16,000 bytes |
| MTU (Host-Bound Packets) | 256 to 9,500 bytes |
| Hyper Mode | Yes |
| Inline Active Flow Monitoring | Yes |
| Dynamic Power Management | Yes |
| Optical Diagnostics and Alarms | Yes |
| Routing Protocols (MX2010 and MX2020) | IPv4, IPv6, BGP, OSPF, IS-IS, RIP, BFD |
| MPLS and VPN Services (MX2010 and MX2020) | MPLS, RSVP, LDP, MPLS fast reroute, BGP/MPLS VPNs, VPLS |
| Layer 2 Features (MX2010 and MX2020) | IEEE 802.1Q VLANs, IEEE 802.1ad, IEEE 802.3ad link aggregation, LACP, LLDP, MC-LAG, IRB, STP, RSTP, MSTP, PVST, G.8032 ring protection |
| Multicast (MX2010 and MX2020) | IPv4 multicast, IPv6 multicast, IPv6 MLD |
| Ethernet OAM (MX2010 and MX2020) | IEEE 802.1ag (continuity check, linktrace, loopback), IEEE 802.3ah, ITU-T Y.1731 timestamping, TWAMP |
| Timing (MX2010 and MX2020) | Synchronous Ethernet, Precision Time Protocol (IEEE 1588) |
| Class of Service (MX2010 and MX2020) | 8 queues per port, hierarchical shaping and scheduling, WRR, WRED, IEEE 802.1p rewrite |
| High Availability (MX2010 and MX2020) | GRES, NSR, Unified ISSU |
| Security (MX2010 and MX2020) | DDoS protection, firewall filters and policers |
| Flow Monitoring and Mirroring (MX2010 and MX2020) | Inline flow monitoring (cflowd v9), packet mirroring |
| Related MX2000 Line Cards | MX2K-MPC8E (960 Gbps in normal mode), MX2K-MPC11E (4 Tbps per slot) |
| Typical Power (without MICs) | 838 W |
| Power by Temperature (without MICs) | 840 W at 25 C, 870 W at 40 C, 1018 W at 55 C |
| MIC-MRATE Power (in MPC9E) | 85 W (1.771 A at 48 V) |
| Weight | 31.4 lb (14.24 kg), without blank panels |
| Status LED | One bicolor OK/FAIL LED: green normal, yellow failed |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
