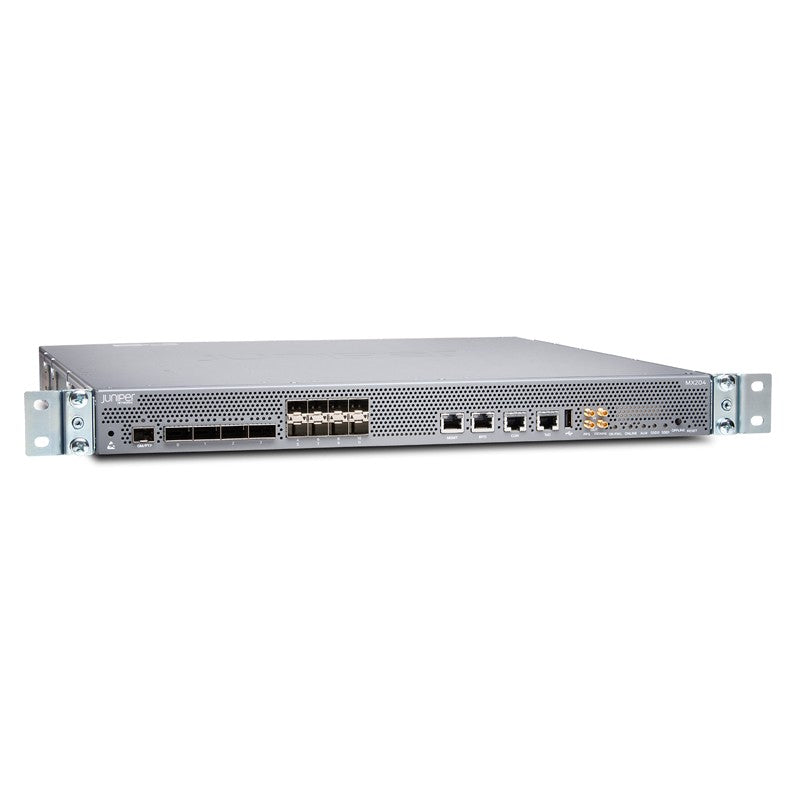

| Manufacturer | Juniper Networks |
| Model | MX204-HW-BASE |
| Series | MX Series |
| Device Type | Universal Edge Router (Fixed Configuration) |
| License | Standard Junos SW (Perpetual, included) |
| Ports | 4 x 100GbE QSFP28 + 8 x 10GbE SFP+ |
| System Throughput | 400 Gbps (full-duplex) |
| Silicon | Juniper Trio/Si5 programmable chipset |
| Operating System | Junos OS |
| Layer 3 Routing | BGP, OSPF, OSPFv3, IS-IS, Static Routing, Segment Routing |
| MPLS | LDP, RSVP-TE, Segment Routing, MPLS-TP |
| VPN Services | L3VPN, EVPN, VPLS, L2VPN, Multicast VPN |
| QoS | Hierarchical QoS, traffic shaping, policing, scheduling |
| Timing | SyncE, IEEE 1588v2 PTP, hybrid mode (frequency + phase synchronization) |
| Security | Stateful Firewall, IPsec, DDoS protection, secure control plane, ACLs |
| Telemetry | Junos Telemetry Interface (JTI), streaming analytics, sFlow |
| Programmability | NETCONF, YANG, OpenConfig, REST API, Python scripting, ZTP |
| Management | CLI, SNMP v1/v2c/v3, SSH, Junos Space, NorthStar Controller |
| High Availability | GRES, NSR, NSF, ISSU (nondisruptive OS upgrades) |
| Power Supply | Dual hot-swappable (AC or DC options) |
| Airflow | Front-to-back |
| Form Factor | Rack-mountable (1RU) |
| Dimensions (H x W x D) | 1.8 x 17.6 x 18.7 in |
| Weight | 23.15 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
