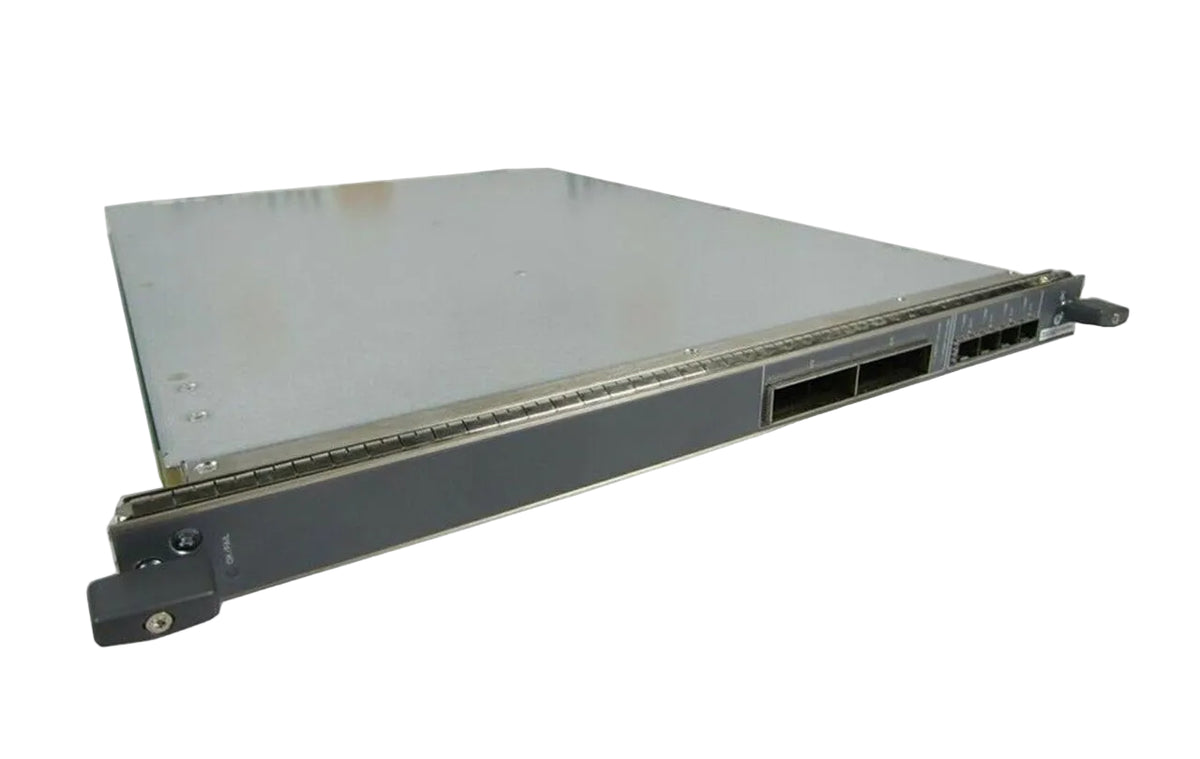

| Model | Juniper MPC5EQ-100G10G |
| CLI Name | MPC5E 3D Q 2CGE+4XGE |
| Series | MX Series |
| Product Type | Fixed-configuration MPC line card |
| 100GbE Ports | 2 (port labels 1/0 and 3/0), CFP2 optics |
| 10GbE Ports | 4 (port labels 0/0, 0/1, 2/0 and 2/1) |
| Throughput | Line rate, up to 240 Gbps |
| Queues | Up to 1 million per slot |
| Port Modes | Configurable LAN-PHY (10.3125 Gbps) or WAN-PHY (9.95328 Gbps) per 10GbE port |
| QoS | Hierarchical QoS (HQoS) |
| Diagnostics | Optical diagnostics and related alarms |
| Oversubscription | Intelligent oversubscription services |
| Host-Bound MTU | 9,192 bytes (9,500 bytes on Junos OS 16.1R1 and later) |
| Junos OS Release | 13.3R3 and later |
| Network Services Mode | Enhanced mode required (enhanced-ip only on MX2010 and MX2020) |
| Supported Chassis | MX240, MX480, MX960, MX2010, MX2020 |
| Switch Fabric (MX240, MX480, MX960) | MX-SCBE or MX-SCBE2 (legacy MX-SCB not supported) |
| Switch Fabric (MX2010, MX2020) | Switch Fabric Board (SFB) |
| DPC Interoperability | Multiservices DPC (MS-DPC) only |
| Typical Power | 505W (10.52 A at 48V) |
| Power at 25°C | 511W |
| Power at 40°C | 541W |
| Power at 55°C | 607W |
| Weight | 21 lb (9.52 kg) |
| Status LED | Steady green: functioning normally; blinking green: transitioning online or offline; red: failed |
| Port LEDs | Green: link up; yellow: link disabled; off: link down |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
