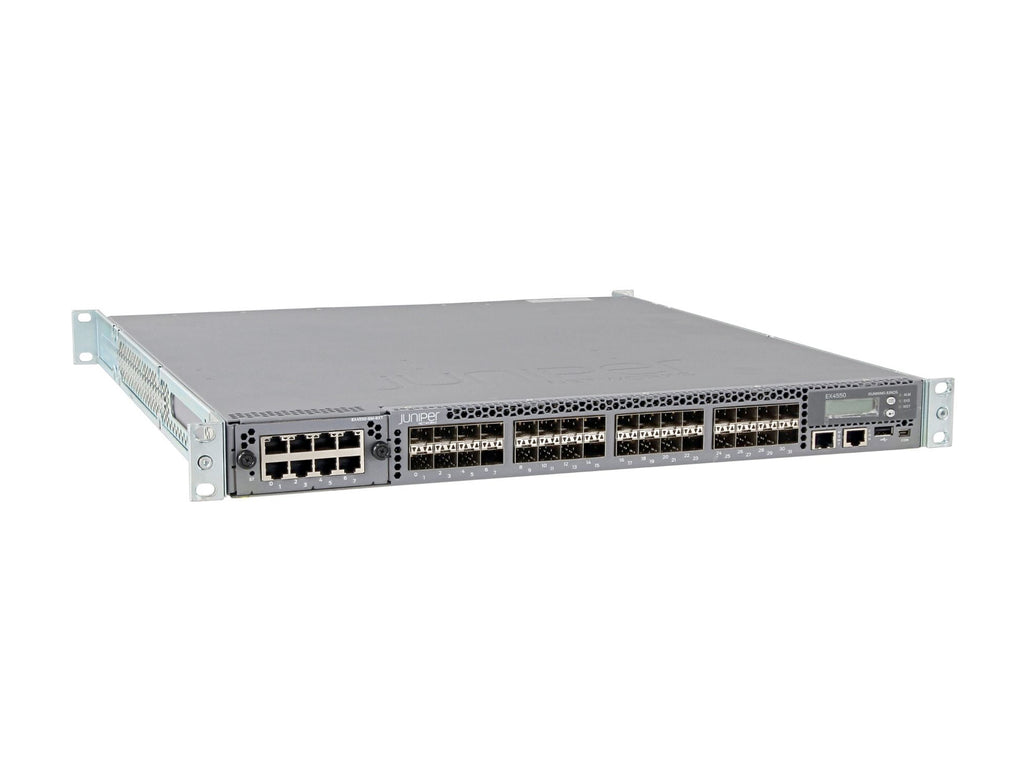

| Device Type | Switch - 32 ports - L3 - Managed - Stackable |
|---|---|
| Enclosure Type | Back to front airflow, rack-mountable, 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 32 × 1 Gigabit / 10 Gigabit SFP |
| Performance | Bandwidth per port: 14.88 Mpps Data transfer rate: 960 Gbps |
| Capacity | Virtual interfaces (VLANs): 4096 IPv4 routes: 10,000 IPv6 routes: 1,000 NDP entries: 1,000 ACL entries: 1,500 |
| MAC Address Table Size | 32,000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMPv3, VRRP, OSPFv2, OSPFv3, PIM-SM, PIM-SSM, MSDP, Static IPv4/IPv6 Routing, RIPng, MLDv2, BFD, CIDR |
| Remote Management Protocol | SNMP v1/v2c/v3, RMON, Telnet, SSH/SSH-2, CLI |
| Features | BOOTP, RARP, ARP, MPLS, VLAN, IGMP snooping, DoS protection, Port mirroring, DiffServ, IPv6, High Availability, SNTP, STP/RSTP/MSTP/VSTP, VRRP, DCBX, PFC, TFTP, ACL, QoS, DHCP Server/Relay, VRF-Lite, Virtual Chassis, NSR, GRES, EZQoS, ECMP, STP Root Guard, IPv4, LLDP, LACP, DCB, MIB, NDP, Loop Prevention, Redundant Hot-Swap Fans, CoS, Strict Priority |
| Compliant Standards | IEEE 802.1D, 802.1p, 802.3ad (LACP), 802.1w, 802.1s, 802.1ae, 802.1Qbb, SDWRR |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.07 cm × 46.99 cm × 4.37 cm |
| Weight | 8.8 kg |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
