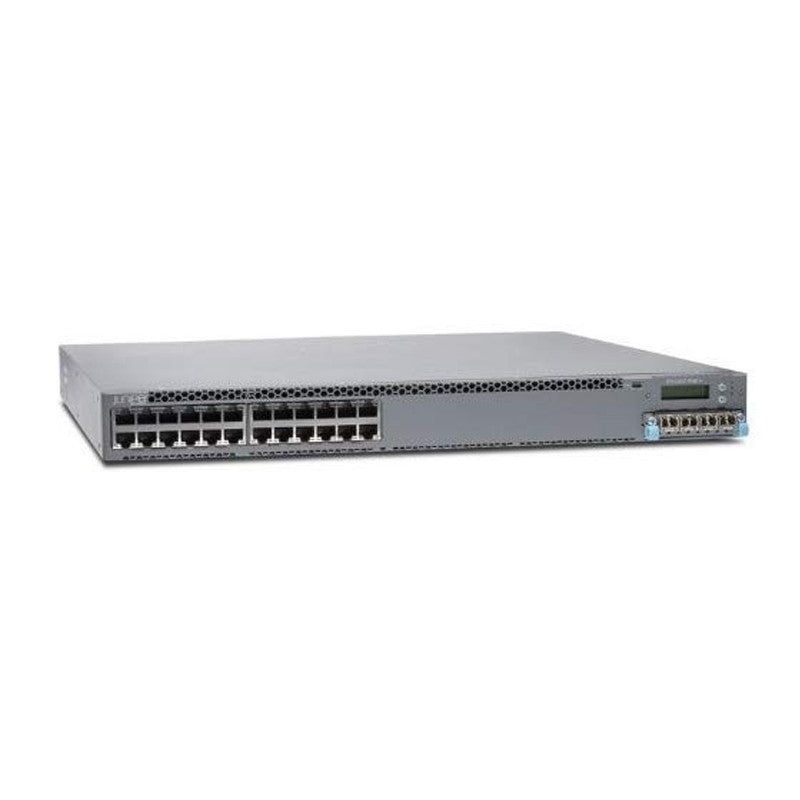

| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE ) 4 x 40 Gigabit QSFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 550 W |
| Performance | Switching capacity: 448 Gbps | Throughput: 333 Mpps |
| Virtual interfaces (VLANs) | 4093 |
| VLAN Spanning Tree Protocol instances | 510 |
| Multiple Spanning Tree Protocol instances | 64 |
| ARP entries | 64000 |
| IPv4 routes | 32000 |
| Maximum of neighboring networks | 20000 |
| IPv6 routes | 18000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 10 |
| Routing Protocol | OSPF IS-IS RIP-1 RIP-2 BGP IGMPv2 IGMP VRRP PIM-SM PIM-DM IGMPv3 OSPFv3 PIM-SSM static IPv4 routing static IPv6 routing RIPng MPLS Bidirectional Forwarding Detection |
| Routing Protocol (cont.) | (BFD) VRRPv3 CIDR |
| Remote Management Protocol | SNMP 1 SNMP 2 RMON 1 RMON 2 RMON 3 RMON 9 Telnet SNMP 3 HTTP HTTPS SSH SSH-2 CLI |
| Encryption Algorithm | MD5 TLS PEAP TTLS |
| Authentication Method | RADIUS TACACS Secure Shell v.2 (SSH2) Extensible Authentication Protocol (EAP) |
| Processor | 1 PowerPC: 1.5 GHz |
| RAM | 2 GB |
| Flash Memory | 2 GB |
| Built-in Devices | Status LCD |
| Interfaces | 24 x 1000Base-T RJ-45 30 W | 4 x QSFP uplink |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 1 (max) |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1 1 (with optional power supply) |
| Power Provided | 715 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Width | 17.4 in |
| Depth | 16.4 in |
| Height | 1.7 in |
| Weight | 16.09 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
