| Manufacturer | Juniper (Mist) |
| Product Line | AP43 Series |

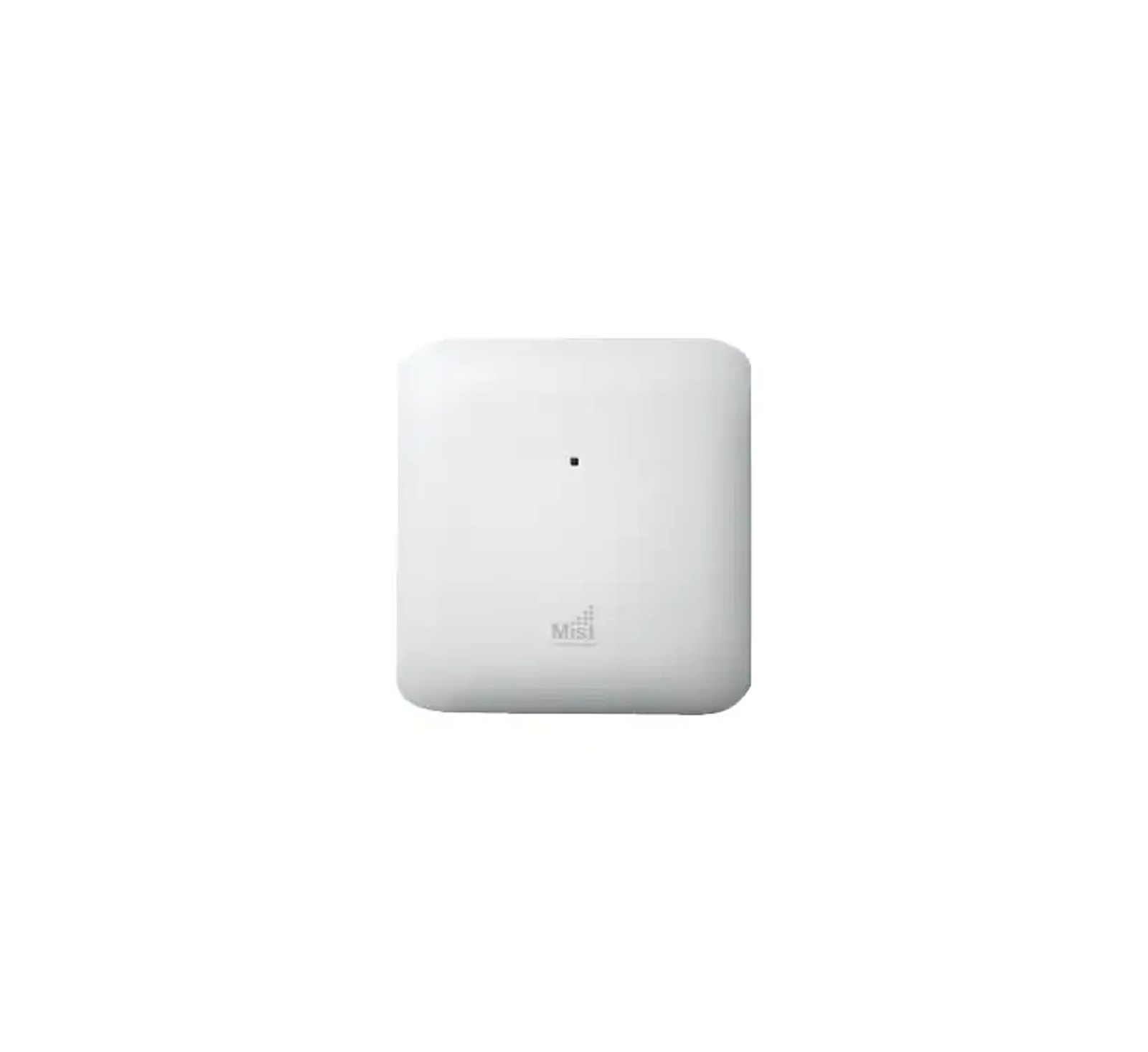

| Product Type | Wireless Access Point |
| Wireless Standard | 802.11ax (Wi-Fi 6), Backwards Compatible With 802.11a/b/g/n/ac |
| Radio Configuration | Tri-Radio 4x4:4 MIMO (2.4GHz and 5GHz Client Radios) |
| Max Data Rate (5GHz) | 2,400 Mbps |
| Max Data Rate (2.4GHz) | 1,148 Mbps |
| Combined Dual-Band Rate | 3.5 Gbps |
| Dedicated Third Radio | 2.4/5GHz WIDS/WIPS, Spectrum Analysis, Synthetic Client, Location Analytics |
| Internal Antennas | 4x 2.4GHz Omnidirectional (4 dBi), 4x 5GHz Omnidirectional (6 dBi) |
| Bluetooth | Bluetooth 5.0, 16-Element vBLE Directional Antenna Array + Omni Antenna |
| Antenna Type | Internal (Sibling AP43E-US Uses External Antennas) |
| Power Options | 802.3at PoE, 802.3bt PoE, or 12V/3A DC Power Supply |
| Ethernet Ports | Eth0: 100/1000Base-T + 2.5GBase-T (PoE PD), Eth1: 10/100/1000Base-T (Optional PoE PSE) |
| USB | USB 2.0 |
| IoT Sensors | Humidity, Pressure, Temperature |
| IoT Port | Pin Interface for Digital I/O and Analog Input (0 to +5V) |
| Security | Trusted Platform Module (TPM) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity | 10 to 90% Non-Condensing |
| Operating Altitude | Up To 10,000 ft (3,048m) |
| MTBF | 454,000 Hours |
| Dimensions | 8.74 x 8.74 x 2.09 in (222 x 222 x 53 mm) |
| Weight | 3.06 lb (1.39 kg), Excluding Mount |
| Management | Requires Juniper Mist Cloud |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
