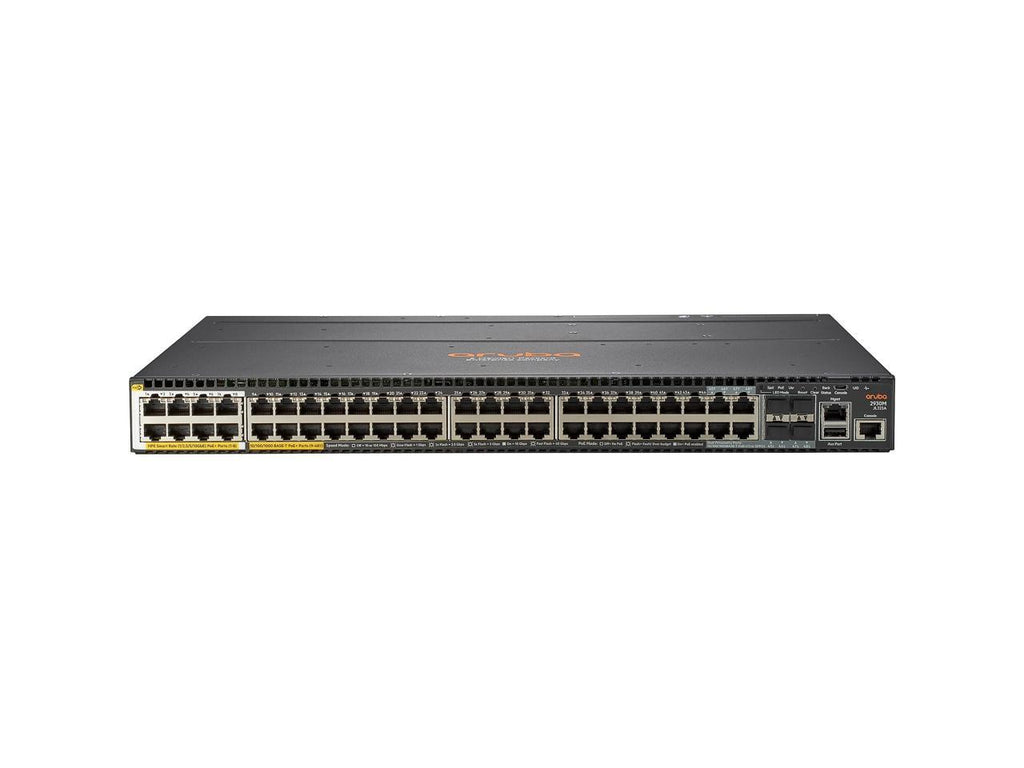

| Part Number | JL323A |
| Series | HPE Aruba 2930M |
| Product Type | Stackable Layer 3 PoE+ Managed Switch |
| GbE PoE+ Ports | 36x 10/100/1000 GbE RJ-45 PoE+ (802.3at) |
| Combo PoE+ Ports | 4x Combo 1G/SFP PoE+ (copper or fiber) |
| Smart Rate Ports | 8x 1/2.5/5/10G PoE+ copper (IEEE 802.3bz) |
| Total Access Ports | 48 |
| PoE Standard | IEEE 802.3at PoE+, 30W per 1G port |
| PoE Budget | Up to 1440W (dual PSU required; sold separately) |
| Expansion Module Slot | 1x — JL078A (40G QSFP+), JL083A (4x 10G SFP+ MACsec), JL081A (4x SmartRate RJ-45) |
| Stacking Module Slot | 1x — JL325A stacking module (sold separately) |
| Stacking | VSF; up to 10 switches; 100 Gbps stacking BW |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 112 Mpps |
| Latency | 3.1 µs at 1G; 3.4 µs at 10G |
| MAC Address Table | 32,768 entries |
| Layer | Layer 3 |
| Routing | OSPF, RIPv1/v2, static, VRRP, PIM, ECMP, policy-based |
| Security | MACsec, 802.1X, ACLs, Dynamic Segmentation, Tunnel Node |
| SDN | OpenFlow 1.3 |
| ASIC | Aruba ProVision |
| Management | Aruba Central, AirWave, ClearPass, web GUI, CLI, SNMP |
| Provisioning | Zero Touch Provisioning (ZTP) |
| Power Supply | 2x modular PSU slots (PSU sold separately; none included) |
| Software License | Not required |
| Form Factor | 1RU rack-mountable |
| Certifications | FCC, CE, RoHS, IEEE 802.3bz, 802.3at |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
