| Brand | HPE Aruba |
| Model | R0X26C |

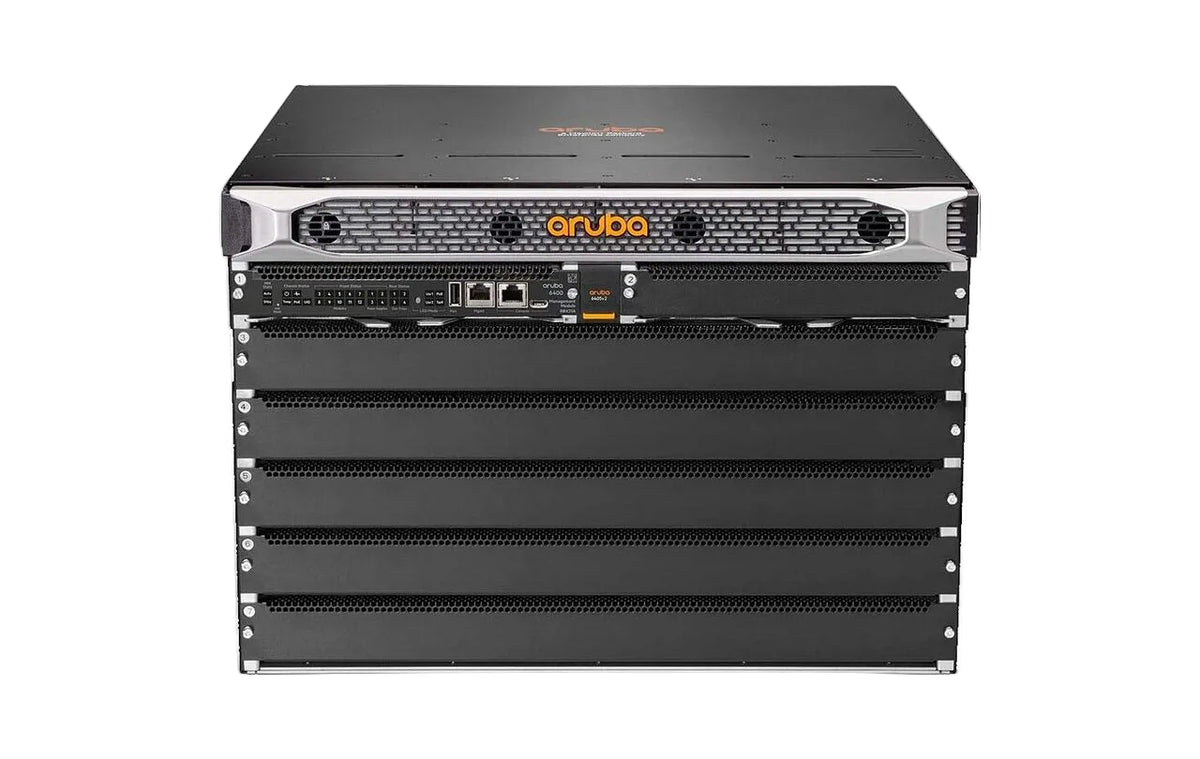

| Product Name | HPE Aruba Networking CX 6405 v2 Switch |
| Series | HPE Aruba Networking CX 6400 Switch Series |
| Product Type | Modular Layer 3 switch chassis |
| Operating System | AOS-CX |
| Line Module Slots | 5 (slots 3 to 7) |
| Management Module Slots | 2 (slots 1 and 2) |
| Power Supply Slots | 4 |
| Fan Trays | 2 hot-swappable, 4 fixed fans each |
| Rack Units | 7U |
| Dimensions (H x W x D) | 12.1 x 17.5 x 17.7 in (30.66 x 44.26 x 44.85 cm) |
| Weight (Switch Configuration) | 64.7 lb (29.3 kg) |
| Weight (Empty Chassis) | 45 lb (21 kg) |
| Weight (Fully Populated) | Up to 133 lb (61 kg) |
| Rack Mounting | 19 in two-post rack; four-post rack mount kit R0X37A sold separately |
| System Switching Capacity | 14 Tbps |
| System Throughput | 5.7 Bpps |
| Fabric Capacity per Slot | 2.8 Tb, non-blocking |
| IPv4 Host Table (ARP) | 49,152 |
| IPv4 Unicast Routes | 61,000 |
| MAC Table | 32,768 |
| Line Module Port Speeds | 1GbE through 100GbE, non-blocking; Smart Rate 1/2.5/5GbE; 50GbE with 50G DACs |
| PoE | 802.3bt, 60 W ports, up to 2880 W per slot |
| Total PoE | More than 10,000 W with four 3000 W power supplies |
| Management Module CPU | Quad-core ARM Cortex-A72, 1.8 GHz |
| Management Module Memory | 16 GB DDR4 ECC, 32 GB eMMC flash |
| Line Module Memory | 4 GB DDR4 |
| Management Module Redundancy | Dual management modules, hitless failover |
| Management Module Ports | 1 x RJ-45 (RS232) console, 1 x USB-C console, 1 x 10/100/1000BASE-T out-of-band, 1 x USB-A host |
| Power Supplies | R0X35A (1800 W), R0X36A (3000 W), hot-swappable |
| Output at High Line (200 to 240 VAC) | R0X35A 1800 W, R0X36A 3000 W |
| Output at Low Line (110 to 127 VAC) | R0X35A 1100 W, R0X36A 1500 W |
| Power Redundancy | N+N at 110 VAC; two power supplies give full operation at 220 VAC |
| AC Input | 110 to 127 and 200 to 240 VAC, 50 to 60 Hz |
| Airflow | Front to rear, with 30 cm (11.8 in) clearance front and rear |
| Operating Temperature | 0 to 45 C (32 to 113 F), up to 5,000 ft; reduced 1 C per 305 m above 1,524 m |
| Operating Humidity | 15% to 95% at 45 C, noncondensing |
| Non-Operating Temperature | -40 to 70 C (-40 to 158 F) |
| Maximum Operating Altitude | 10,000 ft (3.048 km) |
| Acoustics | 46.6 dB sound pressure (LpAm, bystander) with 2 x 1800 W power supplies |
| Layer 2 (6400 Series) | 4,094 VLAN IDs, jumbo frames up to 9,198 bytes, RPVST+, MSTP, QinQ, MVRP, 4 port mirroring groups |
| Link Aggregation (6400 Series) | LACP, up to 256 LAGs with up to 8 links each |
| Layer 3 Routing (6400 Series) | BGP (IPv4 and IPv6), OSPFv2, OSPFv3, RIPv2, RIPng, MPLS L3VPN, ECMP, policy-based routing, static routing |
| Overlay and Virtualization (6400 Series) | VXLAN, EVPN, VRF, VRF-lite |
| High Availability (6400 Series) | VSX, VRRP, UDLD, ERPS, in-service software upgrade on a single chassis with dual management modules |
| Multicast (6400 Series) | IGMPv1, v2 and v3, IGMP snooping, MLD v1 and v2, PIM-SM, PIM-SSM, PIM-DM, MSDP |
| Quality of Service (6400 Series) | Strict priority and DWRR queuing, 802.1p, egress queue shaping, per-port rate limits |
| Security (6400 Series) | TPM, FIPS 140-2 validated cryptography, MACsec (IEEE 802.1AE), IPv4 and IPv6 ACLs, 802.1X, MAC authentication, RADIUS, TACACS+, Control Plane Policing |
| Dynamic Segmentation (6400 Series) | Role-based, with EVPN/VXLAN overlay |
| Safety | UL 60950-1, CSA 22.2 No 60950-1, UL 62368-1 Ed. 2, IEC 60950-1, IEC 62368-1; Class 1 laser |
| EMC | FCC (CFR 47, Part 15) Class A, EN 55032:2015/CISPR32 Class A |
| Related Models | CX 6405 (R0X26A); CX 6410 (10 line module slots, 28 Tbps, 11.4 Bpps) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
