| Brand | HPE Aruba |
| Model | JL679A |

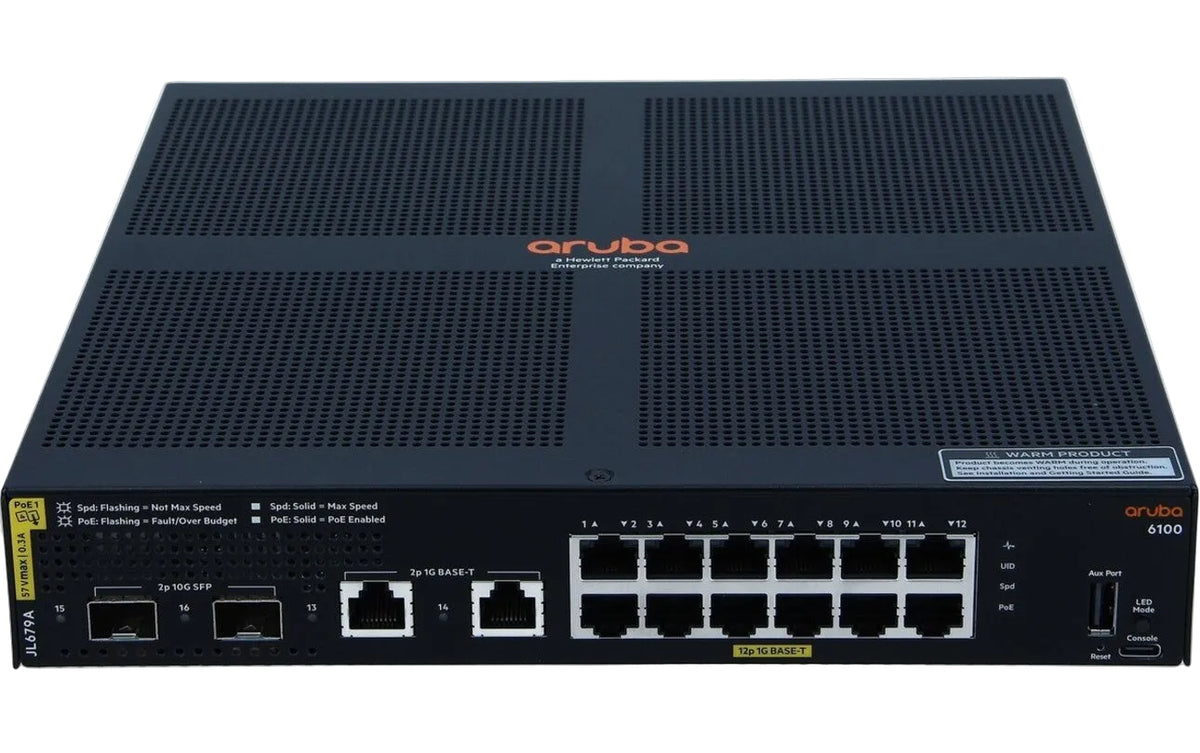

| Product Name | CX 6100 12G Class4 PoE 2G/2SFP+ 139W Switch |
| Series | CX 6100 |
| Form Factor | Compact, fanless |
| Downlink Ports | 12 x 10/100/1000BASE-T |
| Uplink Ports | 2 x 1G/10G SFP/SFP+, 2 x 1GbE |
| PoE Standards | IEEE 802.3af, 802.3at (Class 4) |
| PoE Power Budget | Up to 139W |
| PoE Power Per Port | Up to 30W |
| Switching Capacity | 68 Gbps |
| Throughput | 45.1 Mpps |
| Average Latency | 2.3 μs at 1 Gbps, 2.6 μs at 10 Gbps |
| CPU | Dual core ARM Cortex A9, 1016 MHz |
| Memory | 4 GB DDR3 |
| Flash | 16 GB eMMC |
| Packet Buffer | 12.38 MB (4.5 MB ingress, 7.875 MB egress) |
| MAC Address Table | 8,192 |
| Switched Virtual Interfaces | 16 (dual stack) |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| Stacking | VSF, with other CX 6100 12-port switches only |
| Console Port | 1 x USB Type-C serial |
| Auxiliary Port | USB Type-A, for software download |
| AC Input Voltage | 100 to 127 VAC, 200 to 240 VAC, 50/60 Hz |
| Dimensions (W x D x H) | 10 x 10.04 x 1.73 in (25.4 x 25.49 x 4.40 cm) |
| Operating Temperature | 32 to 113°F (0 to 45°C) up to 5,000 ft |
| Non-Operating Temperature | -40 to 158°F (-40 to 70°C) |
| Operating Humidity | 5% to 95% at 104°F (40°C), non-condensing |
| Maximum Operating Altitude | 10,000 ft (3.0 km) |
| Mounting | Rack or cabinet, horizontal surface, wall, or under table |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
