| General Information | |
|---|---|
| Category | Network switches |

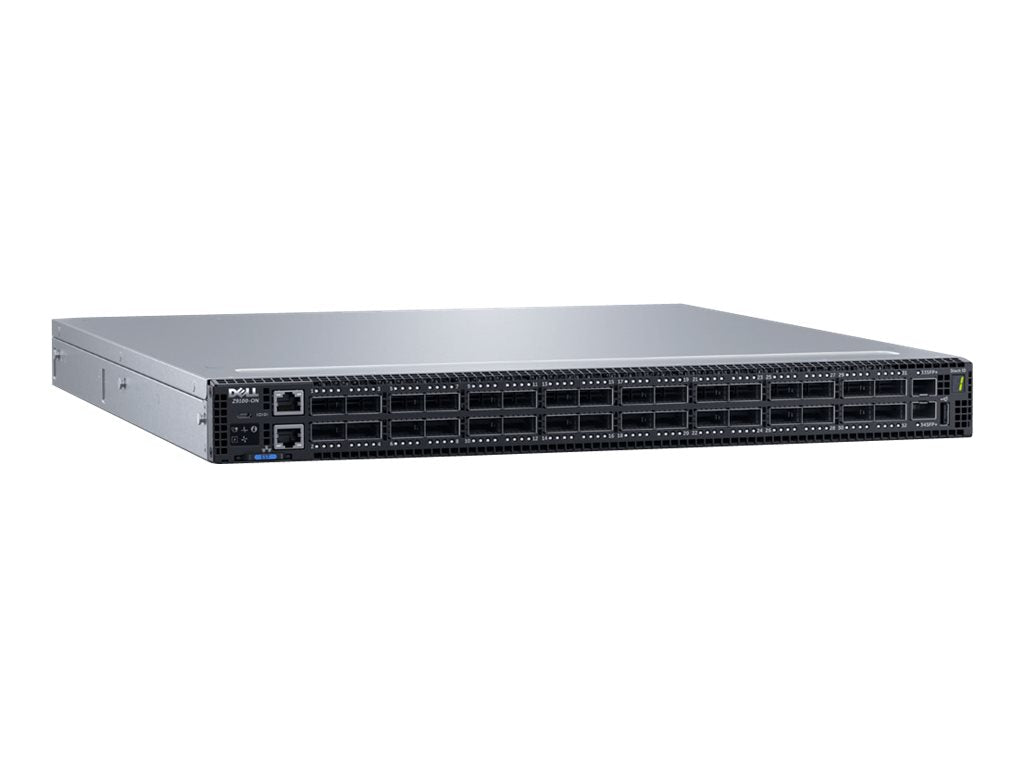

| Description | Dell Networking Z9100-ON - Switch - L3 |
| Dimensions & Weight | |
| Depth | 45.7 cm |
| Height | 4.37 cm |
| Weight | 9.98 kg |
| Width | 43.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | 32 x 100Gbit LAN QSFP28 2 x 10Gbit LAN SFP 1 x serial (RS-232) RJ-45 management 1 x 10/100/1000 Base-T RJ-45 management 1 x USB 2.0 Type A 1 x Type B management |
| General | |
| Authentication Method | RADIUS, TACACS |
| Capacity | MAC addresses: 136000 IPv4 routes (Unicast): 136000 IPv6 routes (Unicast): 68000 IPv4 routes (Multicast): 68000 Multicast hosts: 8000 ARP entries: 128000 Layer 2 VLANs: 4000 MST instances: 64 PVST instances: 128 Link aggregation groups: 128 QoS data queues: 8 QoS control queues: 12 ACL: 3000 |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Encryption Algorithm | MD5 |
| Features | Flow control, ARP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), LACP support, LLDP support, Dynamic VLAN Support (GVRP), Priority-Based Flow Control (PFC), Internet Control Message Protocol (ICMP), DNS client, VLAN Tagging |
| MAC Address Table Size | 136K entries |
| Performance | Switching bandwidth: 6.4 Tbps Forwarding capacity: 4.4 Gbps Latency: 500 ns |
| Ports | 32 x 100 Gigabit QSFP28 2 x 10 Gigabit SFP |
| RAM | 8 GB |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, SSH-2 |
| Routing Protocol | OSPF, BGP-4, OSPFv2, OSPFv3 |
| Subtype | 100 Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, EN 300 386 V1.4.1, AS/NZS CISPR22:2006 Class A, FDA 21CFR1040.10, EN 55022:2006 A1:2007 Class A, FDA 21CFR1040.11, USGv6, VCCI V-3/2009 Class A, CSA 60950-1 Second Edition, FCC CFR47 Part 15 B 2011 Class A, EN 55024:1998 A1:2001 A2:2003 |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 605 Watt |
| Power Device | Internal power supply - hot-plug |
| Voltage Required | AC 120/230 V (50/60 Hz) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
