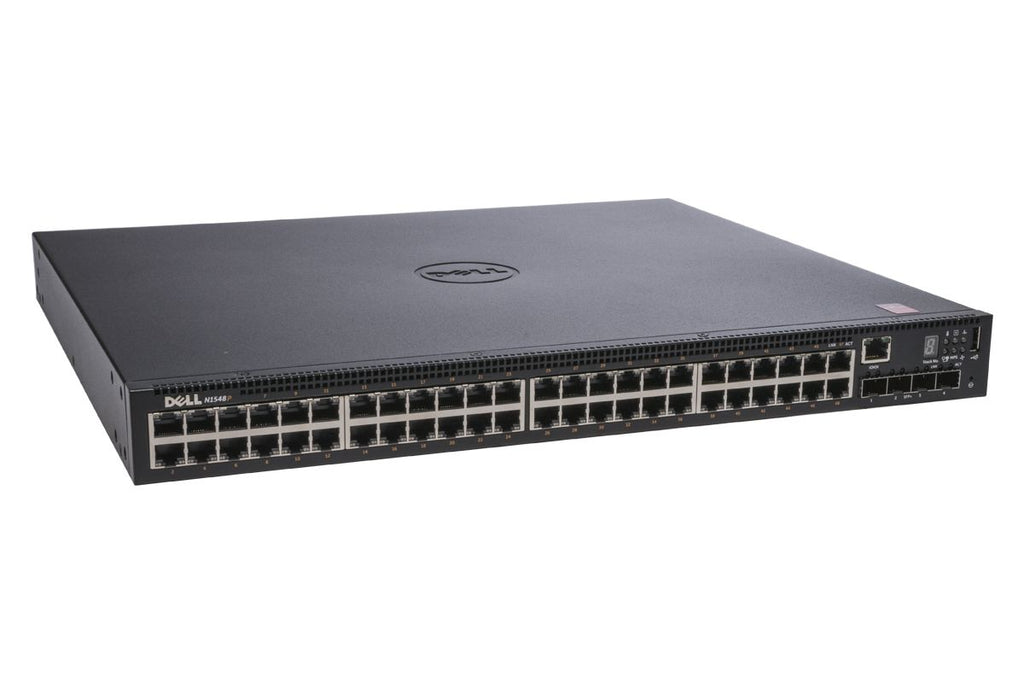

| Manufacturer | Dell EMC |
| Product Line | PowerSwitch N1500 Series |
| Part Number | N1548P |
| Product Type | Layer 3 Managed Access Switch |
| Access Ports | 48x 10/100/1000BASE-T RJ-45 (PoE+) |
| PoE Standard | IEEE 802.3af; IEEE 802.3at (PoE+); 30.8W max per port |
| Uplink/Stacking Ports | 4x 10GbE SFP+ (2x usable as stacking ports) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 164 Mpps |
| MAC Address Table | 16,000 entries |
| VLANs | 512 |
| CPU Memory | 1 GB |
| Flash | 256 MB |
| Packet Buffer | 1.5 MB |
| Stacking | Up to 4 units; up to 200 1GbE ports; 40 Gbps stack bandwidth |
| Layer 3 | Static routing; RIP; OSPF; IPv4/IPv6; 256 static routes (IPv4) |
| Security | 802.1X; ACLs (MAC and IP-based); Private VLAN; Private VLAN Edge; RADIUS; TACACS+ |
| Management | Dell Networking OS6; CLI; web GUI; SNMP; Telnet; USB auto-configuration; 1x RJ-45 console |
| Power Supply | 600W AC integrated (1 included); MPS1000 1000W optional external |
| Fans | Redundant variable-speed fans |
| Form Factor | 1U rack-mountable |
| Dimensions | 1.7 x 17.3 x 15.2 in |
| Weight | 15.4 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
