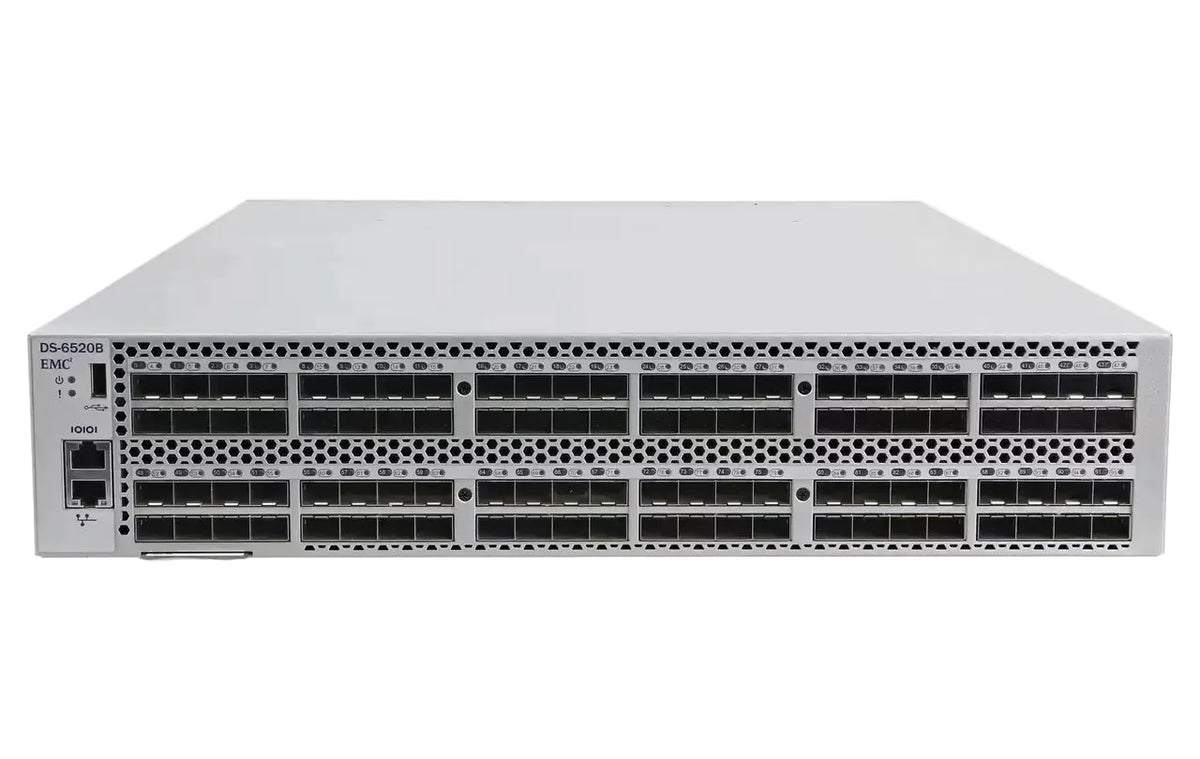

| Brand | Dell EMC |
| Model | DS-6520B |
| Series | Connectrix DS-6500B Switches |
| Product Type | 16 Gbps Fibre Channel SAN switch, enterprise class |
| Rack Height | 2U |
| Rack Mount | 19-inch cabinet conforming to EIA 310 |
| Standard Ports | 48 |
| Port Configurations | 48, 72 or 96 ports, in 24-port increments |
| Port Upgrades | 72 or 96 ports via Ports On Demand (POD) upgrade kits |
| Port Speeds | 2, 4, 8 and 16 Gbps, auto-sensing |
| Port Types | D_Port, E_Port, EX_Port, F_Port, M_Port; U_Port self-discovery |
| Media Type | Hot-pluggable SFP+ (2, 4, 8, 10, 16 Gbps), LC connector |
| Aggregate Bandwidth | 1,536 Gbps end-to-end, full duplex |
| Latency, Locally Switched Ports | 700 ns |
| Latency, Between Port Groups | 2.1 microseconds |
| Frame Buffers | 8,192 per 24-port group, dynamically allocated |
| Maximum Frame Size | 2,112-byte payload |
| Classes of Service | Class 2, Class 3, Class F (inter-switch frames) |
| Data Traffic Types | Fabric switches supporting unicast |
| Fabric Services | Simple Name Server, RSCN, NTP, RADIUS, LDAP, switch and port binding, Reliable Commit Service, Advanced Zoning, Advanced Web Tools |
| ISL Compression and Encryption | In-flight, up to 8 ports |
| Diagnostics | D_Port offline diagnostics, POST, embedded online and offline diagnostics, RAS trace logging, FCping, Pathinfo |
| Management Ports | RJ-45 Ethernet, in-band over Fibre Channel, RJ-45 serial, 1 USB |
| Management Interfaces | Advanced Web Tools, SSH, HTTPS, RADIUS, SNMP v3 (FE MIB, FC Management MIB), SMI-S compliant |
| Firmware Upgrades | Non-disruptive download and activation |
| Power Supplies | Dual, hot-swappable, with integrated system cooling fans |
| Airflow | Back to front (port side exhaust); optional front to back chassis (power supply side exhaust) |
| AC Input Voltage | 85 to 264 V |
| AC Input Current | 5 to 2.5 A |
| AC Input Frequency | 47 to 63 Hz |
| Power Consumption, 96 Ports Populated | 450 W with 16 Gbps SWL optics |
| Power Consumption, Empty Chassis | 350 W without optics |
| Heat Dissipation | 1,582 BTU/hr with 96 ports |
| Dimensions (H x W x D) | 3.42 x 16.90 x 24.01 in. (86.74 x 429.25 x 609.75 mm) |
| Weight | 37.3 lb (16.92 kg) with two power supply FRUs, without transceivers |
| Operating Temperature | 0 to 40 C (32 to 104 F) |
| Non-Operating Temperature | -25 to 70 C (-13 to 158 F) |
| Operating Humidity | 10 to 85% non-condensing at 40 C (104 F) |
| Non-Operating and Storage Humidity | 10 to 90% non-condensing at 70 C (158 F) |
| Operating Altitude | Up to 3,000 m (9,842 ft) |
| Shock | Operating 20 G, 6 ms half-sine; non-operating 33 G, 11 ms half-sine |
| Vibration | Operating 0.5 G p-p, 5 to 500 Hz; non-operating 2.0 G p-p, 5 to 500 to 5 Hz |
| Regulatory Compliance | UL/CSA 60950-1, FCC Part 15 Subpart B, ICES-003 Class A, CISPR 22, EN 60950-1, EN 55022, EN 55024, IEC 60950 |
| Related Models | DS-6505B (1U, 12 or 24 ports), DS-6510B (1U, 48 ports) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
