| Brand | Cisco |
| Model | ME-X4248-FE-SFP |
| Series | Cisco Catalyst 4500 Series Line Cards |

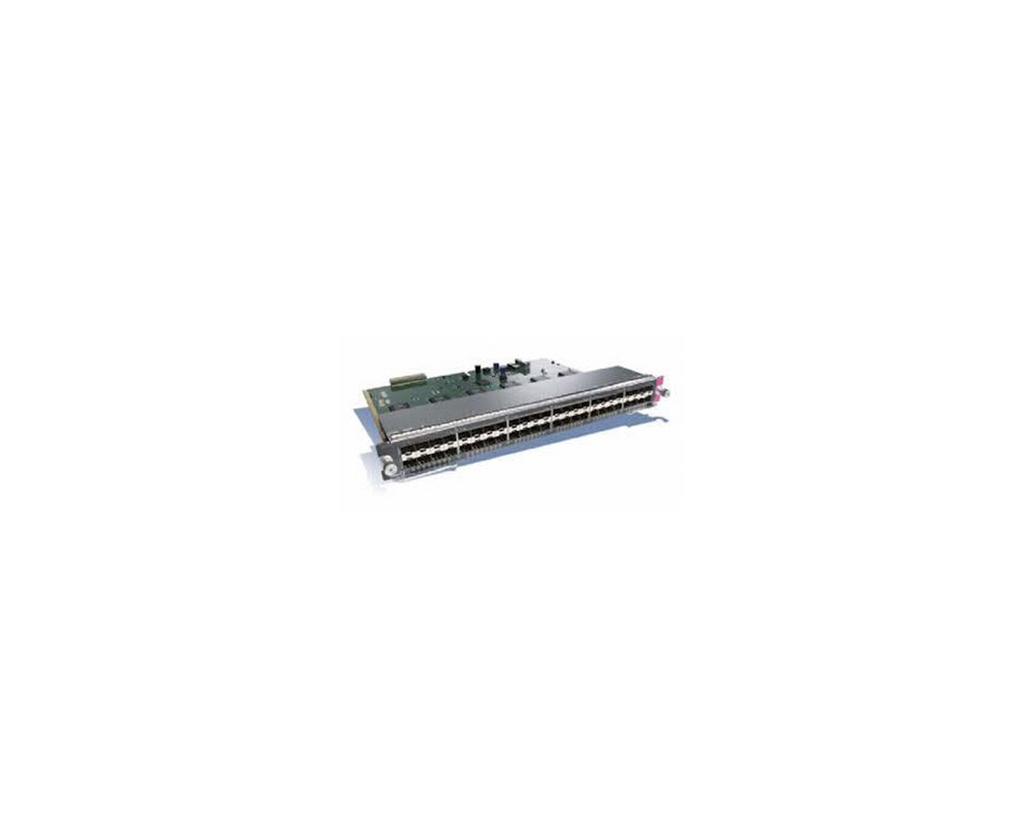

| Cisco Product Description | 48-port FE SFP FTTH module |
| Product Type | Fast Ethernet line card for Catalyst 4500-E chassis |
| Number of Ports | 48 |
| Port Type | SFP |
| Port Speed | 100BASE-X |
| Wire Rate | Yes |
| Optics | 100BASE-X SFP optics, mixable on the same card |
| Companion SFP Set | GLC-FE-100BX-D48 (48-unit bundle of 100BX-D SFPs) |
| 100BX-D SFP Wavelengths | Transmit 1550 nm, receive 1310 nm |
| 100BX-D SFP Reach | Up to 10 km on single-strand single-mode fiber |
| 100BX-D SFP Connector | Single LC |
| Min/Max Ports, Catalyst 4503-E | 48/96 |
| Min/Max Ports, Catalyst 4506-E, 4507R-E, 4507R+E | 48/240 |
| Min/Max Ports, Catalyst 4510R-E, 4510R+E | 48/384 |
| Standards | IEEE 802.3, IEEE 802.3ah, IEEE 802.3x flow control |
| Applications | Fiber-to-the-desktop; point-to-point Fast Ethernet to the home or business (FTTH) |
| Slot Usage | One slot in the Catalyst 4500 platform |
| Maximum Rated Power | 53 W |
| Rated MTBF | 687,828 hours |
| Dimensions, Line Card Family (H x W x D) | 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm) |
| Operating Temperature, Line Card Family | 0 to 40 C (32 to 104 F) |
| Storage Temperature, Line Card Family | -40 to 75 C (-40 to 167 F) |
| Relative Humidity, Line Card Family | 10 to 90%, noncondensing |
| Operating Altitude, Line Card Family | -60 to 3000 m |
| Laser Safety, Line Card Family | Class 1 laser products |
| NEBS, Line Card Family | Level 3 (GR-1089-CORE, GR-63-CORE) |
| Emissions, Line Card Family | FCC 15J Class A, EN 55022 Class A, CISPR 22 Class A, CE Marking |
| Related Models | WS-X4248-FE-SFP (the same 48-port 100BASE-X SFP card, sold as a standalone line card) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
