| Product Code | WS-X6816-10T-2T |

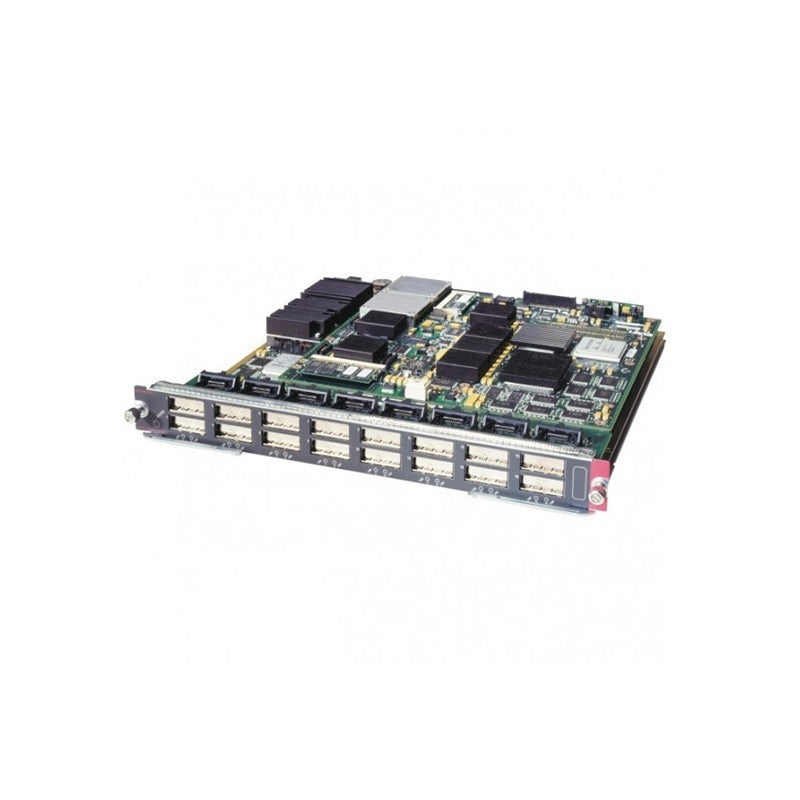

| Description | 6800 Series 16-Port 10 Gigabit Ethernet Copper Module with DFC4 & DFC4XL |
| Feature | 16-Port 10GbE Copper Module |
| Ports | 16 |
| Optics | Copper (RJ-45) connectors |
| Switch fabric connection | 2 x 20 Gbps (40 Gbps total) |
| Oversubscription | 4:1 16 ports (oversubscription mode) 1:1 4 ports (performance mode) |
| Forwarding engine | WS-X6816-10T-2T: comes equipped with DFC4 for distributed forwarding, supporting 256K forwarding entries, increased ACL entries to 64K, increased Netflow entries to 512K |
| Forwarding engine (cont.) | and increased IPv4 forwarding speed to 60 Mpps WS-X6816-10T-2TXL: equipped with DFC4XL for distributed forwarding, supporting 1 million forwarding entries, increased |
| Forwarding engine (cont.) | ACL entries to 256K, increased Netflow entries to 1024K and increased IPv4 forwarding speed to 60 Mpps Increased performance of up to 60Mpps for L2, IPv4 and MPLS |
| Forwarding engine (cont.) | forwarding and up to 30Mpps for IPv6 forwarding Support for 16K Bridge Domains, allowing the standard 4K VLANs to be reused across these bridge domains, effectively |
| Forwarding engine (cont.) | increasing the number of VLANs available in the system Increased MAC Address Table to 128K Increased multicast routes to 256K IGMPv3 snooping in hardware PIM |
| Forwarding engine (cont.) | registers in hardware IPv6 MLDv2 snooping in hardware IPV4 & IPv6 in IPv6 tunnelling IPv6 in IPv4 tunneling ISATAP, 6to4, GRE) QoS support for uniform, short |
| Forwarding engine (cont.) | pipe and pipe mode tunnel Terminate the tunnel in the same loopback |
| Queues | Oversubscription mode: Receive: 1p7q2t per port Transmit: 1p7q4t per port group Performance mode: Receive: 8q4t per port Transmit: 1p7q4t per port |
| Queuing mechanisms | Class of Service (CoS) based queue mapping (Differentiated Service Code Point (DSCP) based queue mapping |
| Scheduler | Oversubscription mode: Deficit Weighted Round Robin (DWRR) Weighted Random Early Detection (WRED) Performance mode: DWRR WRED Shaped Round Robin (SRR) at egress |
| Port buffers | Oversubscription mode: 90 MB per port group Performance mode: 256 MB per port (128 MB for ingress and 128 MB for egress) |
| Hardware-based multicast replication | Ingress and Egress replication-mode Approximately 20 Gbps per replication engine 2 replication engines per module |
| Jumbo frame support for bridged and routed packets | Up to 9216 bytes |
| Maximum port density per chassis | 176 ports (6513-E chassis) 128 ports (6509-E chassis) |
| Maximum port density per VSS | 352 ports |
| Can be used to form virtual switch link | Performance mode: Yes ◦ Up to 4 10 Gigabit Ethernet ports can be used for virtual switch link Oversubscription mode: No |
| Supervisor engines supported | Catalyst 6500 Supervisor Engine 2T and 2TXL |
| Chassis supported | Any Cisco Catalyst 6500 E-Series chassis, including 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E (NEBS compliant) and 6513-E chassis Not supported in non-E Series chassis |
| Slot requirements | Can occupy any slot in any Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E or 6509-V-E or chassis Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E chassis |
| Onboard memory | 1 GB default |
| Cabling Supported | Category 6, 6A UTP & STP & Category 7 STP copper cabling |
