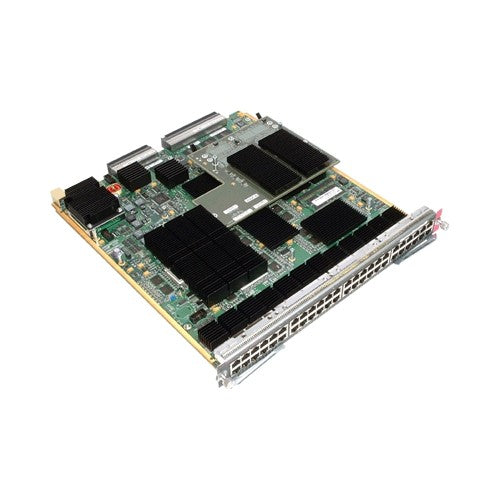

| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Plug-in module |
| Subtype | Gigabit Ethernet |
| Compatible Slots | 1 x expansion slot |
| Ports | 48 x 10/100/1000 |
| Performance | Bandwidth: 720 Gbps |
| Routing Protocol | HSRP VRRP |
| Remote Management Protocol | SNMP 1 SNMP 2 RMON 1 RMON 2 RMON 3 RMON 9 SNMP 3 HTTP |
| Features | Full duplex capability auto-negotiation VLAN support Rapid Spanning Tree Protocol (RSTP) support Multiple Spanning Tree Protocol (MSTP) support Quality of Service (QoS) Jumbo Frames support Time Domain Reflectometry (TDR) Per-VLAN Spanning Tree Plus (PVST ) |
| Compliant Standards | IEEE 802.3 IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1s |
| Status Indicators | Port status power boot state fail link/activity |
| Interfaces | 48 x 1000Base-TX RJ-45 |
| Compliant Standards | CISPR 22 Class A CISPR 22 Class B EN 60950 IEC950 UL 1950 VCCI Class A ITE EN55022 Class A EN55022 Class B AS/NZS 3260 FCC CFR21 Part 1040 EN 60825 FCC Part 15 A CSA C22.2 No. 950 AS/NZS 3548 Class B AS/NZS 3548 Class A |
| Width | 14 in |
| Depth | 16 in |
| Height | 1.2 in |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 167 °F |
| Designed For | Cisco Catalyst 6503 6503 Firewall Security System 6503 VPN System 6503-E 6503-E chassis with Supervisor Engine 32 6503-E Firewall Security System Bundle 6503-E WSLM Bundle 6504-E 6504-E Application Control Engine (ACE) 20 Bundle 6504-E chassis with Supervisor Engine 32 6504-E with Supervisor Engine 720-3B 6504-E with WiSM Bundle 6506 6506 chassis 6506 Firewall Security System 6506 Firewall Security System with Enhanced Chassis 6506-E 6506-E chassis with Supervisor Engine 32 6506-E Data Center Services Bundle 6506-E Firewall Security System Bundle 6506-E IDSM-2 Bundle with 2-Gbps Performance 6506-E IPSec VPN SPA Security System Bundle 6506-E NAM-3 System 6506-E VPN System 6506-E WLSM Bundle 6509 6509 chassis 6509 Firewall and IDS Security System 6509 Firewall and VPN Security System 6509 Firewall Security System 6509 Wiring Closet Bundle 6509-E 6509-E 10Gig Firewall Security System Bundle 6509-E Application Control Engine (ACE) 20 Bundle 6509-E Application Control Engine (ACE) 30 8G Bundle 6509-E chassis with Supervisor Engine 32 6509-E Data Center Services Bundle 6509-E Firewall Security System Bundle 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL 6509-E IPSec VPN SPA Security System 6509-E NAM-3 System 6509-E with Supervisor Engine 720 6509-E with WiSM Bundle 6509-NEB 6509-NEB-A 6509-V-E 6513 6513 10Gig Firewall Security System Bundle 6513 chassis 6513 Chassis with Supervisor Engine 32 6513 Firewall Security System 6513 Firewall Security System Bundle 6513 IPSec VPN SPA Security System 6513-E |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
