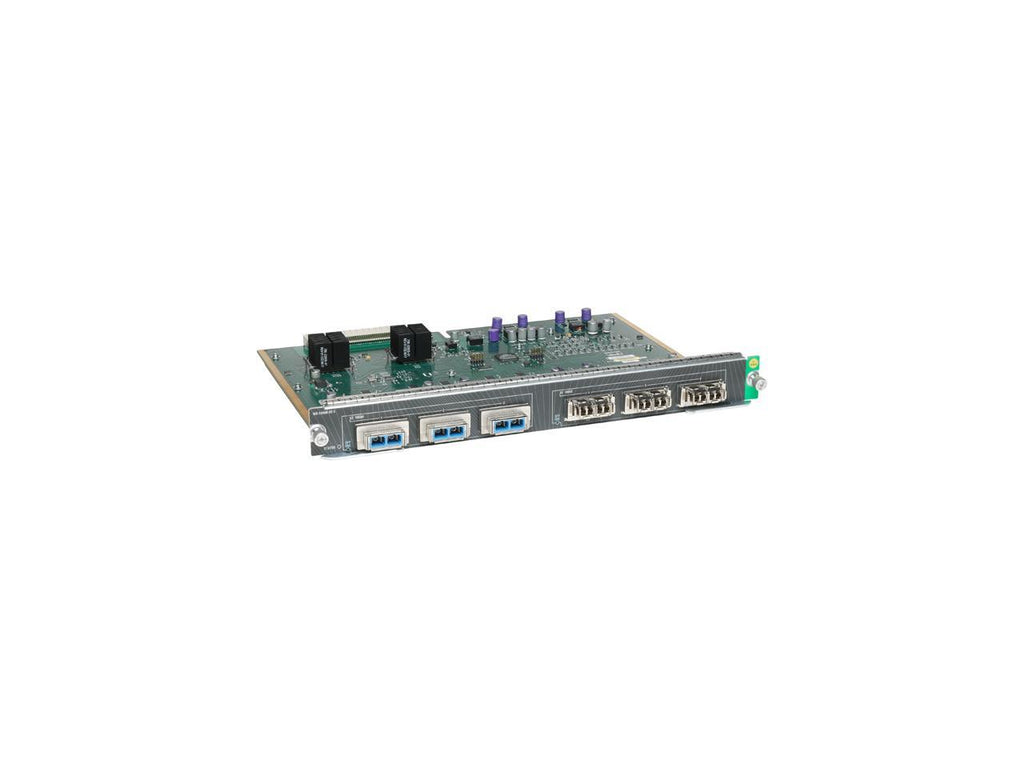

| Line-Card Type | Cisco Catalyst 4500 46xx E‑Series Line Cards |
| Number of Ports | 6 |
| Port Speed | 10GBASE-X |
| Per-Slot Bandwidth | 24 Gbps |
| Chassis Support | Cisco Catalyst 4503-E, 4506-E, 4507R-E, 4507R E, 4510R-E, and 4510R E1 |
| Supervisor Support | Supervisor Engine 8-E, Supervisor Engine 8L-E, Supervisor Engine 7-E, Supervisor Engine 7L-E, Supervisor Engine 6-E, Supervisor Engine 6L-E |
| per-slot capacity | 24 gigabits |
| Modules | ·10GBASE-X (X2) and 1GBASE-X (SFP)·Up to 6 ports 10GE X2 or 12 ports GE SFP using TwinGig Converter Module·TwinGig modules must be used in groups of three: ports 1-3 or ports 4-6 |
| Cisco IOS Software | Cisco IOS Software Release 12.2(40)SG or later |
| Enterprise and commercial | designed for high-speed backbone and switch-to-switch applications |
| Service provider | 10GE/GE mix aggregation for DSLAM/PON/mobile data backhaul |
| L2-4 Jumbo Frame support | up to 9216 bytes |
| Max Rated Power (W) | 50 |
| Rated MTBF (Hours) | 535,717 |
| Package weight(KG) | 7.1800 |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
