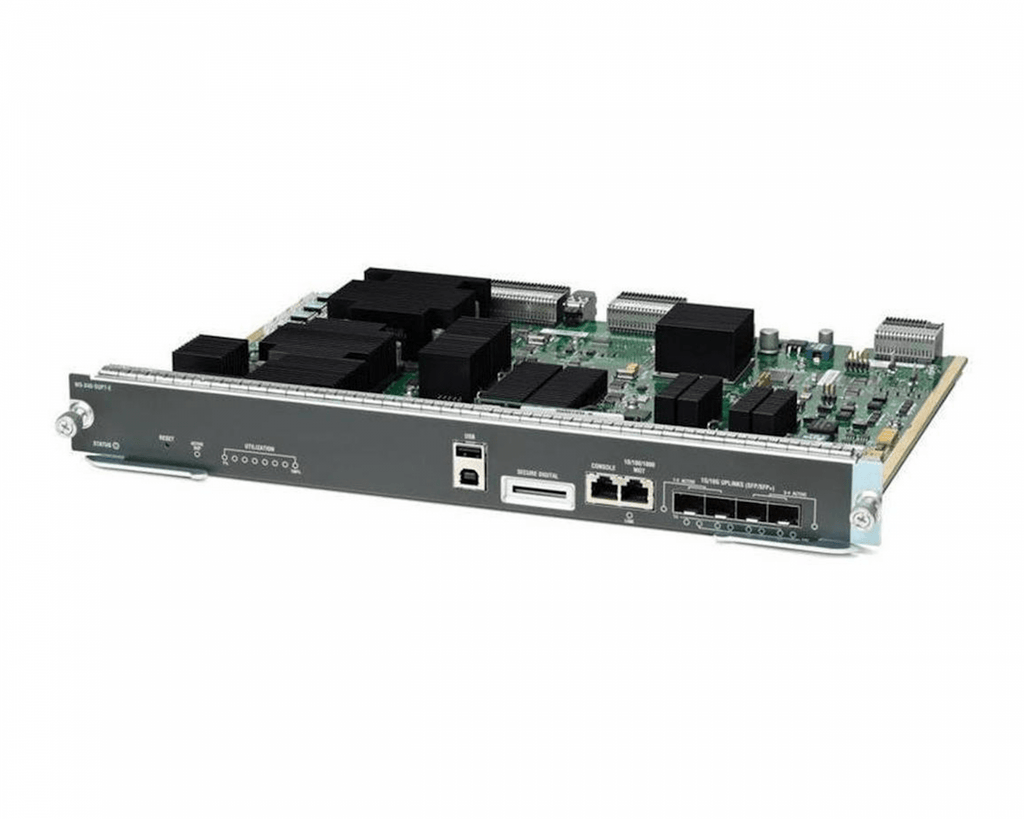

Cisco WS-X45-SUP7-E/2 Catalyst 4500 E-Series Supervisor, 848Gbps

Roll over image to zoom in Click on image to zoom

Cisco WS-X45-SUP7-E/2 Catalyst 4500 E-Series Supervisor, 848Gbps

Establishing borderless leadership is now easier than ever to achieve with the Cisco Supervisor Engine 7-E, an enterprise-class borderless network access and aggregation supervisor engine. Cisco Supervisor Engine 7-E is built with price-performance aggregation deployments in mind, providing increased Gigabit Ethernet and 10 Gigabit Ethernet fiber density along with hardware capabilities to support enterprise-class aggregation functionalities. Supervisor Engine 7-E facilitates borderless user experiences for enterprise, public sector, mid-market, and commercial customer deployment business-critical applications.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit: https://netmode.com/warranty-support/

Centralized switching capacity	848 Gbps
Per-slot switching capacity	48 Gbps
Throughput	250 Mpps for IPv4 125 Mpps for IPv6 250 Mpps for L2 Bridging
IPv4 routing entries	256,000
IPv6 routing entries	128,000
Multicast routes	16,000 (available with Cisco IOS XE 3.1.0 SG) 32,000 (Available with Cisco IOS XE 3.2.0 SG or later)
CPU	Dual core; 1.5 GHz
CPU queues	64
Synchronous dynamic RAM (SDRAM)	2 GB upgradable to 4 GB
Nonvolatile RAM (NVRAM)	1 GB
Security and QoS hardware entries	128,000
Cisco Network Admission Control (NAC) andDynamic Host Configuration Protocol (DHCP) snooping entries	12,000
MAC addresses	55,000
Active VLANs	4,094
Address Resolution Protocol (ARP) entries	47,000
Spanning Tree Protocol instances	10,000
Switched virtual interfaces (SVIs)	4,094
Switched Port Analyzer (SPAN)	Maximum of 8 sessions: ingress or egress

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
